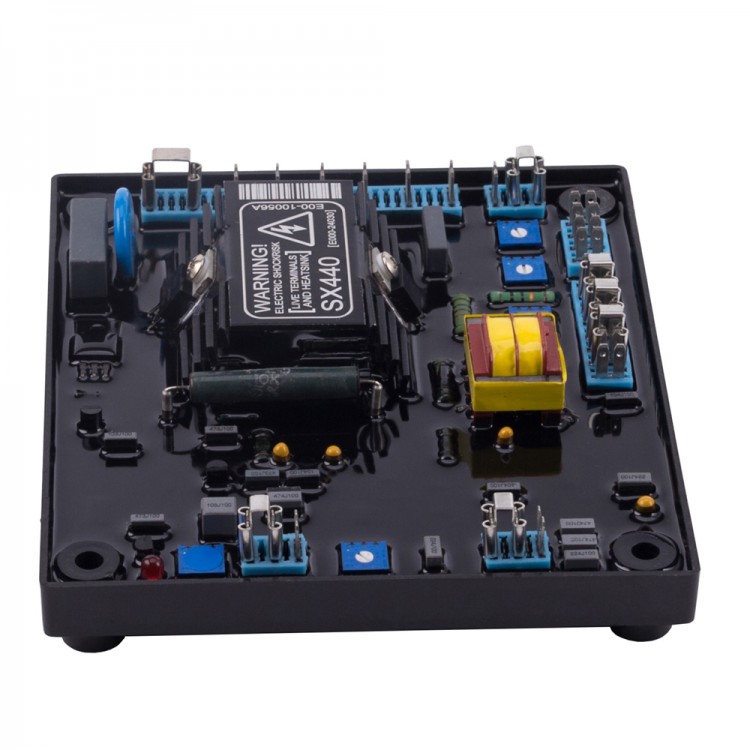

Maxgeek SX440 Diesel Generator AVR Automatic Voltage Regulator Alternator Voltage Stabilizer U/F Protection
Specification:
Sensing Input:
Terminal 0-110V=90~150V
Terminal 0-220V=175~260V
Terminal 0-380V=350~520V
Power Input:
Voltage: 100~264 VAC, single phase
Output: voltage Max. 90V DC at 207V AC
Current: continuous 4A DC, intermittent 10A for 10 sec.
Thermal Drift: 0.05% per ℃ change in AVR ambient
Droop Input: Max. input 0.33A
Burden: 10Ω 0.07A for 5% droop (PF=0)
Under Frequency Protection: U/F potentiometer 45~60 Hz
Voltage Regulation: < ±1% (with 4% engine governing)
External Volts Adjustment: ±8% @ 1KΩ
Voltage Build-up: residual volts at AVR terminal >5V AC
EMI Suppression: internal electromagnetic interference filtering
Exciter Resistor: DC resistance 20~100Ω
Analogue Input: Max. input ±5V DC input resistance 1KΩ, 1V for 5% generator volts
Unit Power Dissipation: Max. 12W
Environment Vibration: 1.5G@5~30Hz, 5G@30~500Hz
Relative Humidity: <95%
Operating Temperature: -40~60℃
Storage Temperature: -40~85℃
AVR Controls Functions VOLT: voltage adjustment
STAB: stability adjustment
U/F: UFRO knee point set (U/F: under frequency protection)
DROOP: droop adjustment
TRIM: analogue input adjustment
DIP: U/V rate set
Package List:
1 x Automatic Voltage Regulator
