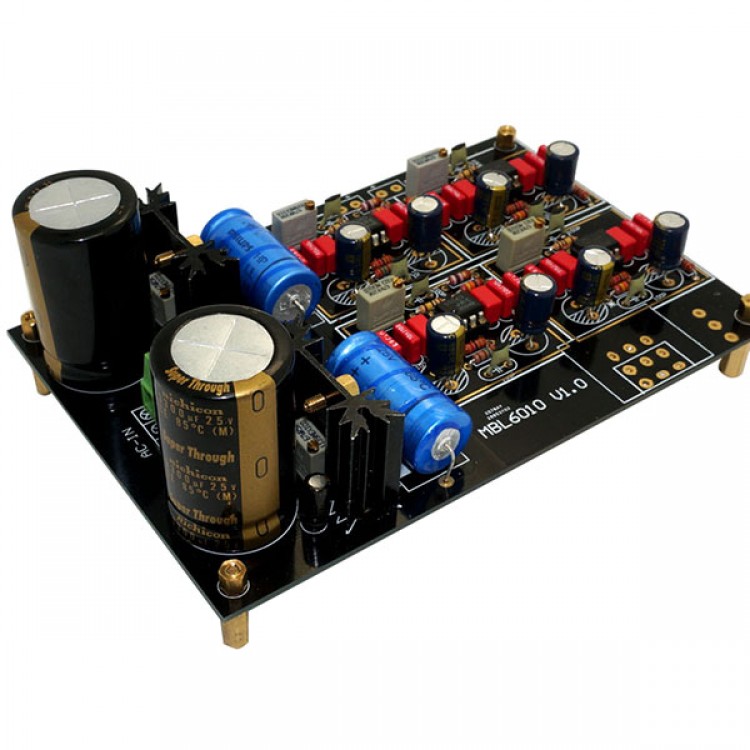

MBL6010D 10 Times Hi End AD797 Preamplifier Kit WLX

Availability: In stock, usually dispatched in 1 business day

  • Price:$22.61
  • Price in reward points: 226 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.16 $21.71 $21.03 $20.12 Contact US
Quantity:

MBL6010D 10 Times Hi End AD797 Preamplifier Kit WLX

Description:

- This is a kit.you need solder all parts by yourself.
- AC 15V 0 15V(15~18 OK)
- size 147X95MM
- don't include the two bigest Filter capacitors and 4pcs AD797

How to adjust:
- If you want 3-5 times change resistor 220 ohm to 470ohm ~ 1K.
- Adjust the LM317 regulator power: let AD797 op amp 4 feet =-17V Pin 7 = +17 V
- then put 1pc AD797 to the board.adjust 20K R,and let the 6 leg is near 0 mv.
- Then the other ADA797 ic.

list:
- PCB sided Immersion Gold PCB
- Panasonic 4700UF 4
- 718 resistance 26
- Panasonic FC220UF 8

Package includes:
- MBL6010D 10 Times Hi-end AD797 preamplifier kit WLX
- Color ring 100PF 8
- 3 interpolation 1
- Adjustable 5K 2
- Adjustable 20K 4
- All gold imported IC Block 4
- Heat 2
- New LM317/337 ON 1
- 10UF Panasonic
- Siemens 104 8
- Siemens 103 8
- Siemens 102 8
- Height rectifier 4
