MBS-C43 Round Magnetic Base Adjustable Magnetic Holder with M6 Screw Hole for Optical Platform

MBS-C43 Round Magnetic Base Adjustable Magnetic Holder with M6 Screw Hole for Optical Platform

Description:

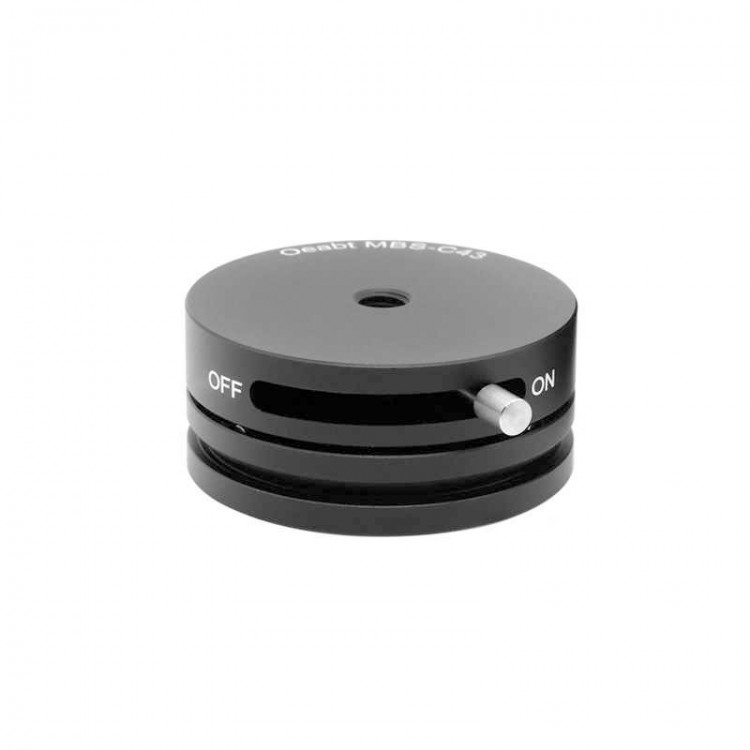

The round magnetic base consists of two parts: the top plate and the bottom plate. A side ON/OFF switch interrupts the magnetic force connecting the two plates so that users can easily remove and replace the top plate. When the switch is set on the ON side, the high-strength magnets in the base provide 4.5lbs of suction force. The top plate features a ball and V-groove design that allows for highly accurate and repeatable automatic repositioning to the exact position.

In the center of the top plate is an M6 screw hole, on which different components can be mounted. The base plate has a countersunk hole of Ø 6.2mm/0.24" in the center. The base plate can be fixed to an optical platform or a breadboard by using a capped screw.

In addition, the grooves of the base plate allow MBS-C43 to be fixed anywhere on an optical platform using PCL-4 clamps.

Features:
- Used to build an optical experiment platform
- ON/OFF switch to connect/disconnect the base plate
- Ball and V-groove design with high precision positioning
- Its top plate with an M6 screw hole and the bottom plate with a Ø 6.2mm/0.24" countersunk hole

Product Information:
- Model: MBS-C43
- Specification: Ø 43.0mm x 18.9mm/Ø 1.69" x 0.74"
- Thread type: M6 screw hole and Ø 6.8mm/0.27" countersunk hole
- Weight: 73.8g/0.16lb
- Materials: Magnetic block + aluminum alloy

Package Included:
- 1 x Round Magnetic Base

Packaging Details:
- Weight: 0.25kg
