| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $15.06 | $14.76 | $14.29 | $13.68 | Contact US |

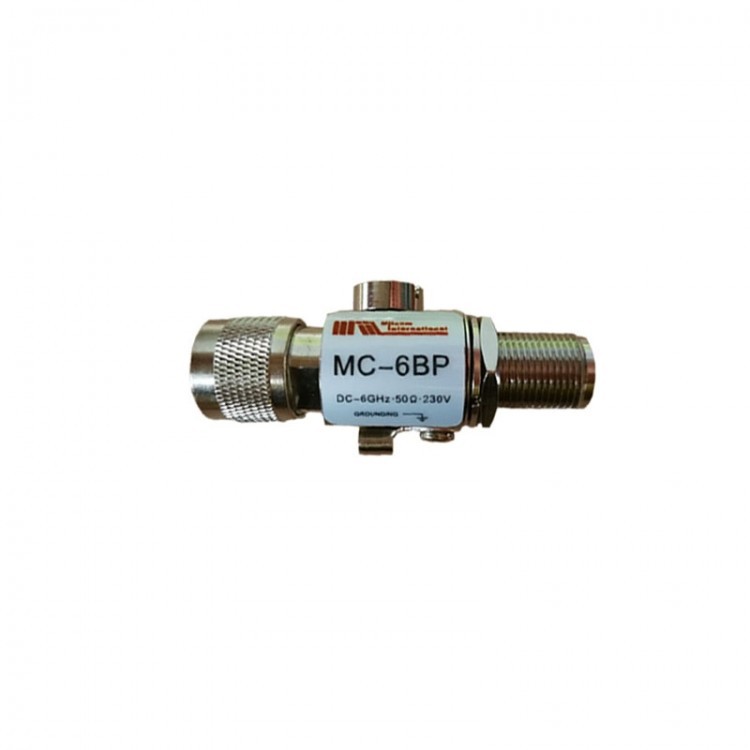

MC-6BP DC-6GHz 50ohm Coaxial Lightning Arrestor Surge Protector for Feeder Walkie Talkie Antenna
Specifications:
- Item name: MC-6BP Coaxial Lightning Arrestor
- Frequency Range: DC-6000MHz
- VSWR: ≤1.2:1
- Nominal impedance: 50Ω
- Connector model: N-JK
- Discharge inception voltage: DC-230V
- Insertion loss: less than 0.2DB for 3G; less than 0.5DB for 6G. The loss is different in different frequency bands
- Max. power rating: 200W PEP
- Dimensions: 68.2 x 31 x 23mm/2.7 x 1.2 x 0.9"
- Weight: 130g/0.3lb
Package Included:
- 1 x Lightning Arrester
