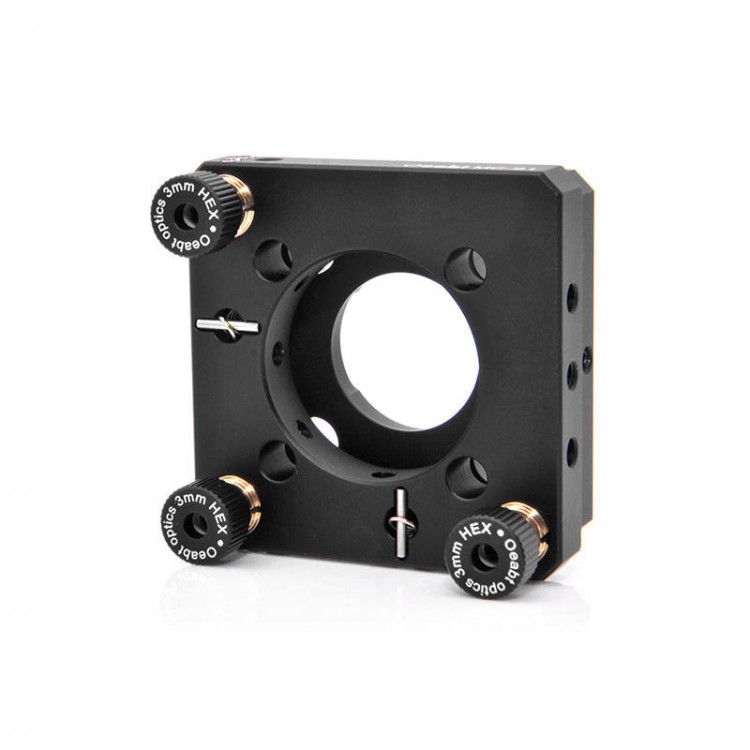

MC-S1 Smooth Hole Version Cage Adjustment Frame 30mm Precision Cage System Bracket for Optics Experiment Components
Description:

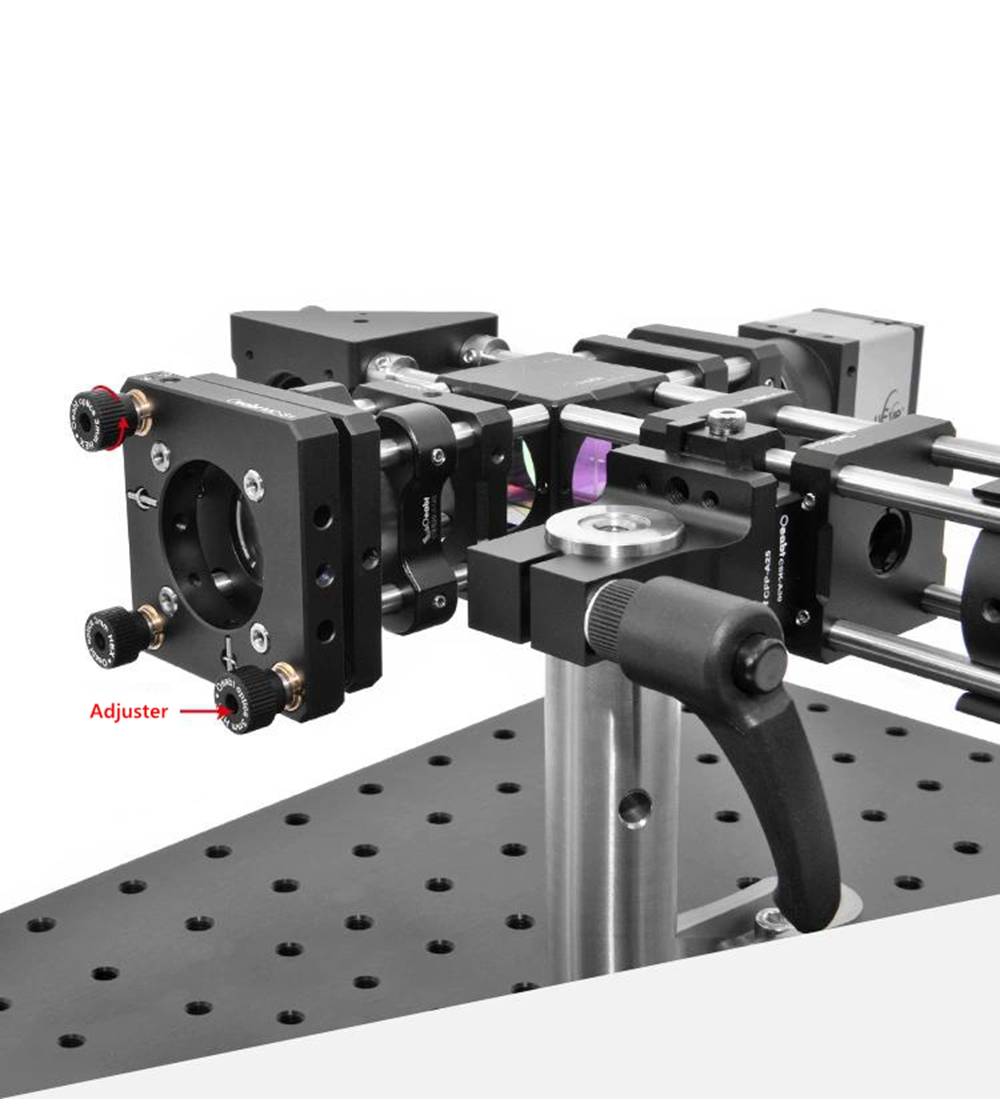

- The MC series is an ideal choice for installing reflectors or collimating light sources, capable of achieving precise beam angle alignment along the axis of a 30mm cage system. The adjustment bracket has three M6*0.25 precision hexagonal adjusters, with an adjustment accuracy of 7 mrad/rev (milliradians/speed) per revolution. The fine adjustment of the manual three-axis adjuster can achieve precise angle positioning of optical components within the cage system. In addition, each regulator has a separate locking fixing screw.
Features:
- A pitch angle of ±5° and a linear movement of ±3mm.

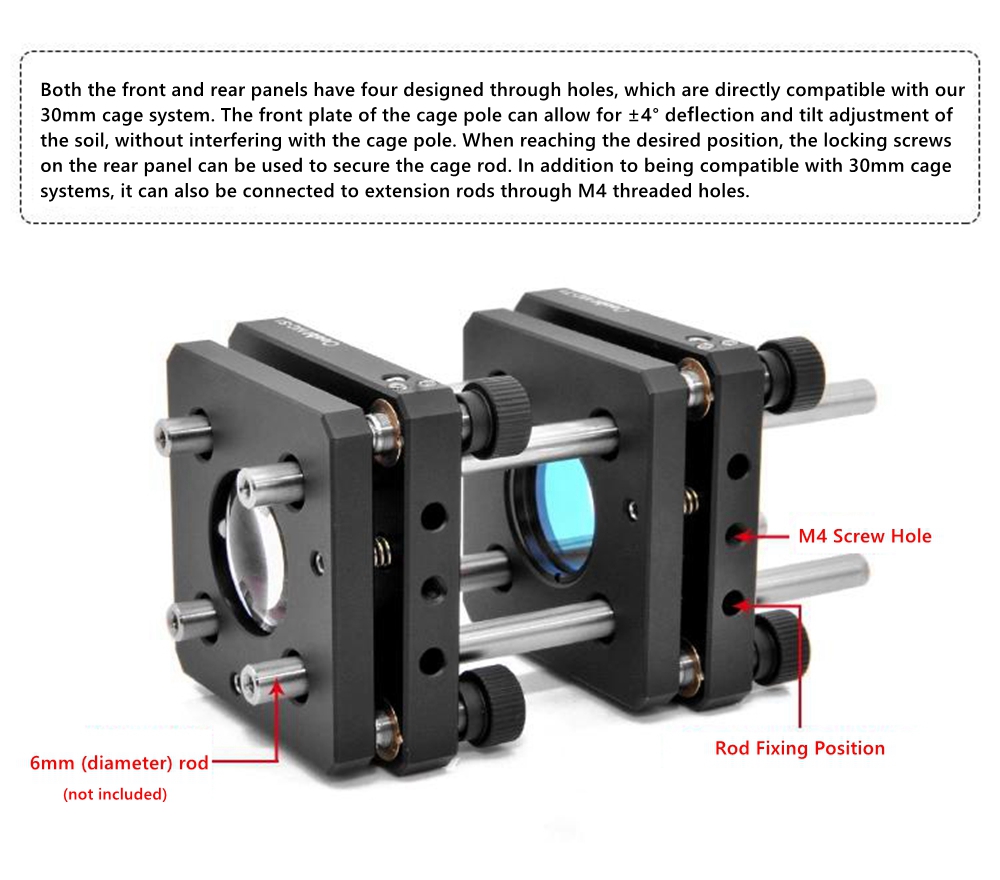

- Compatible with 30mm cage system.
- It can install optical components of 1-inch (diameter) or 25mm (diameter).

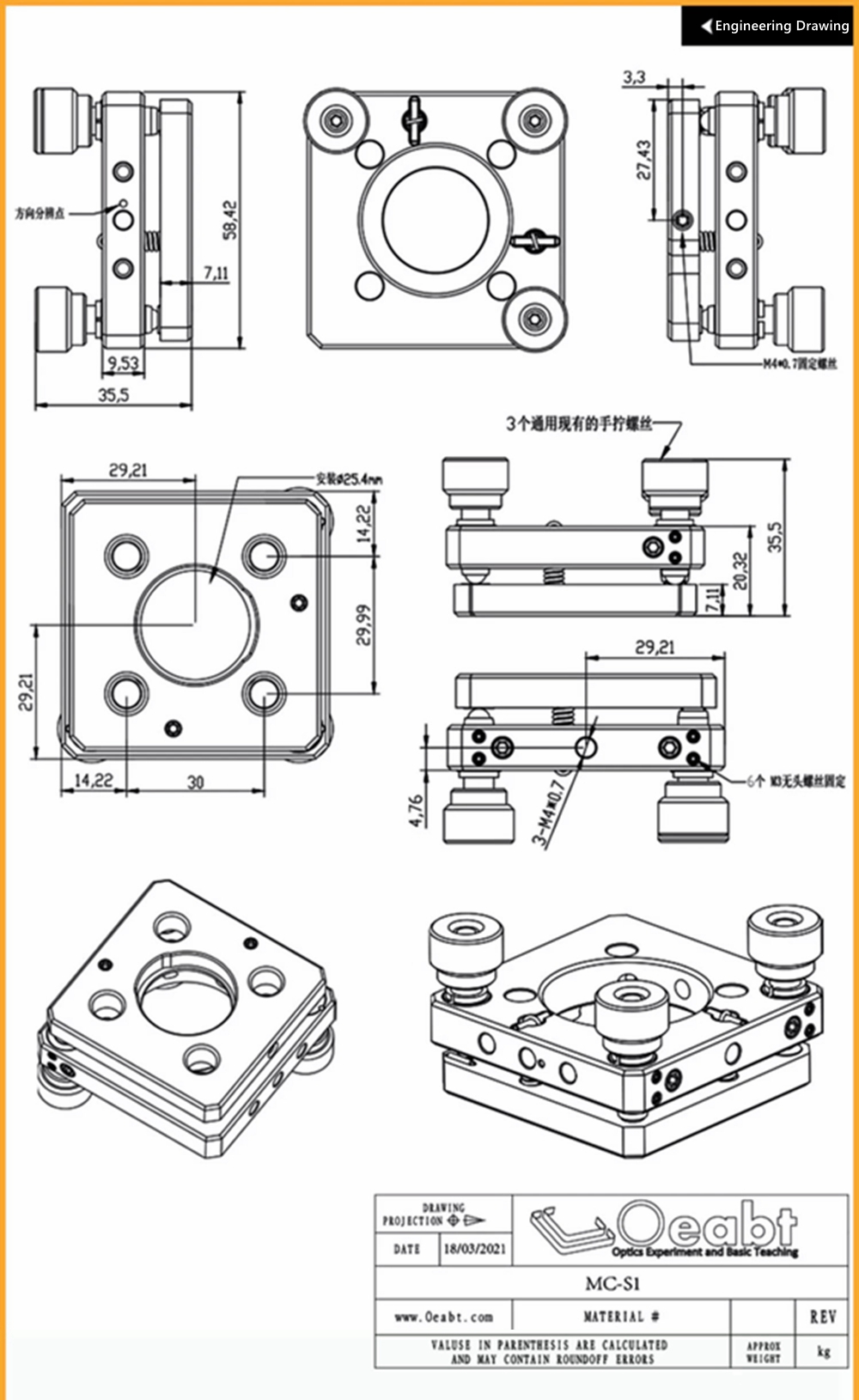

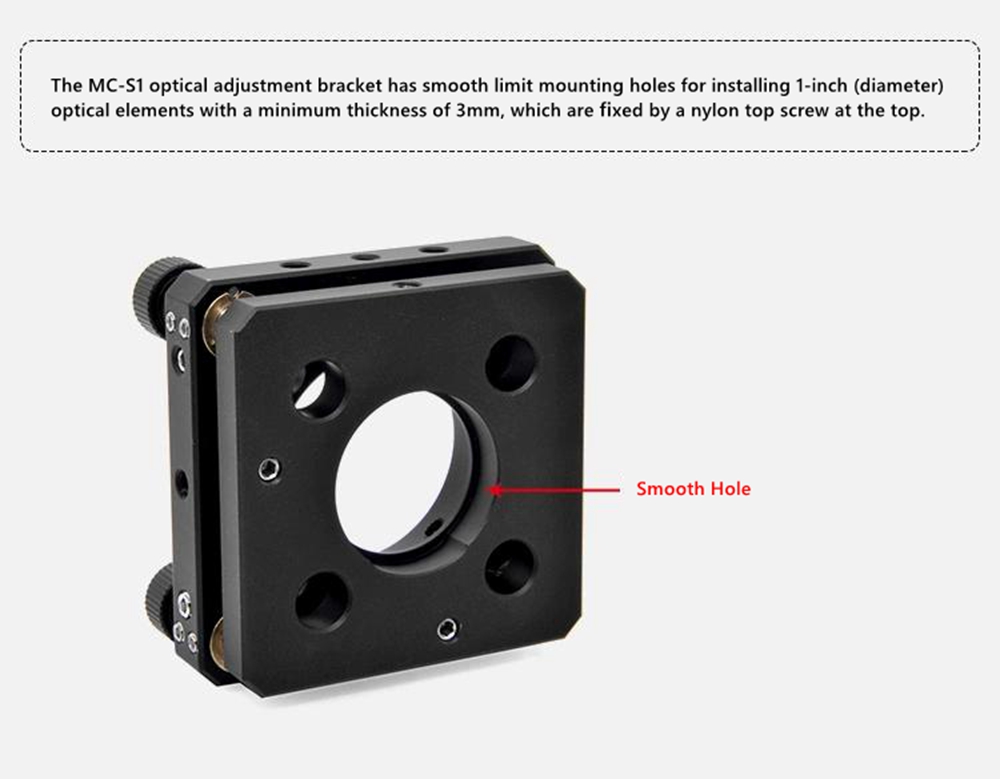

- MC-S1 can install optical elements with a minimum thickness of 3mm.

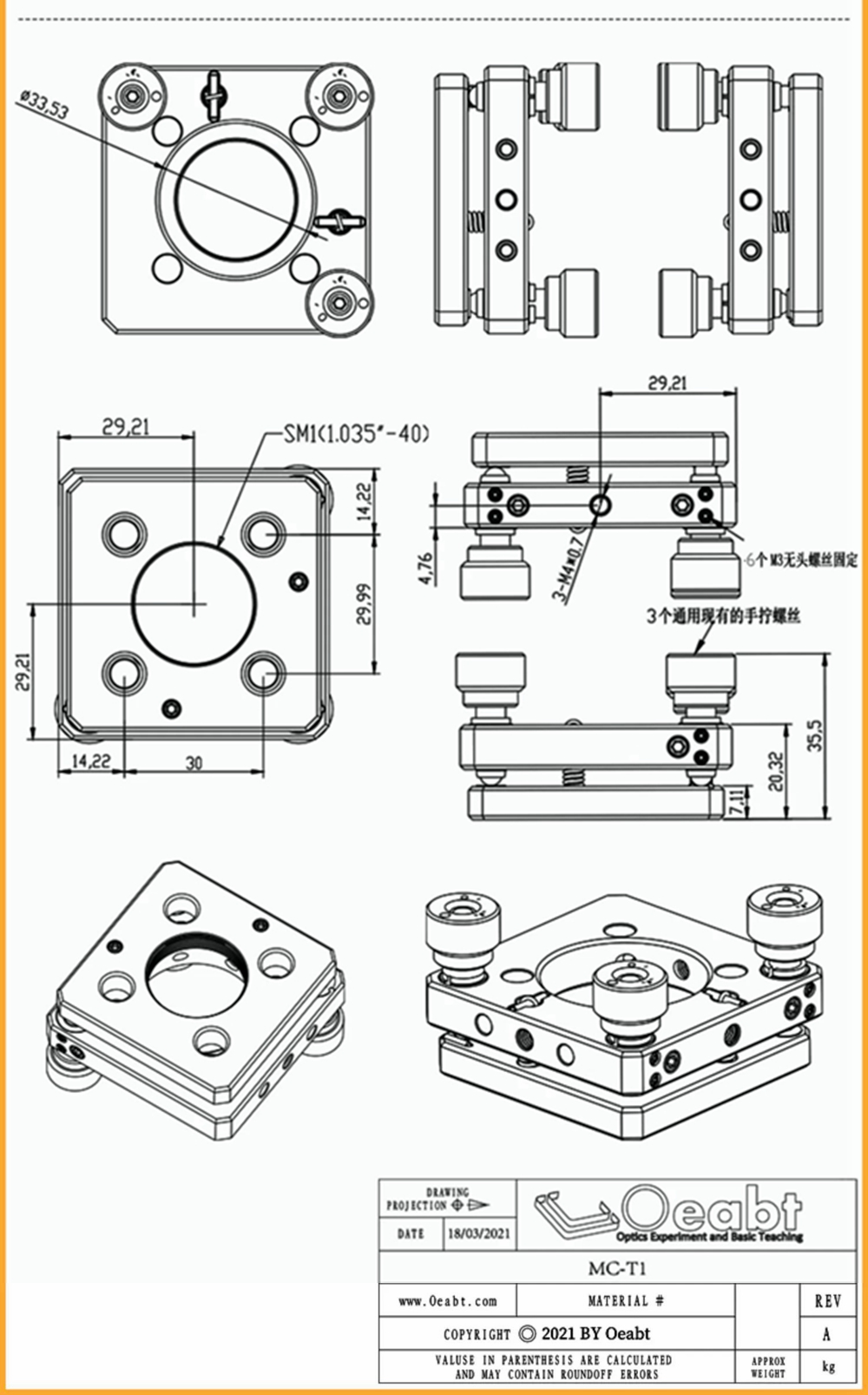

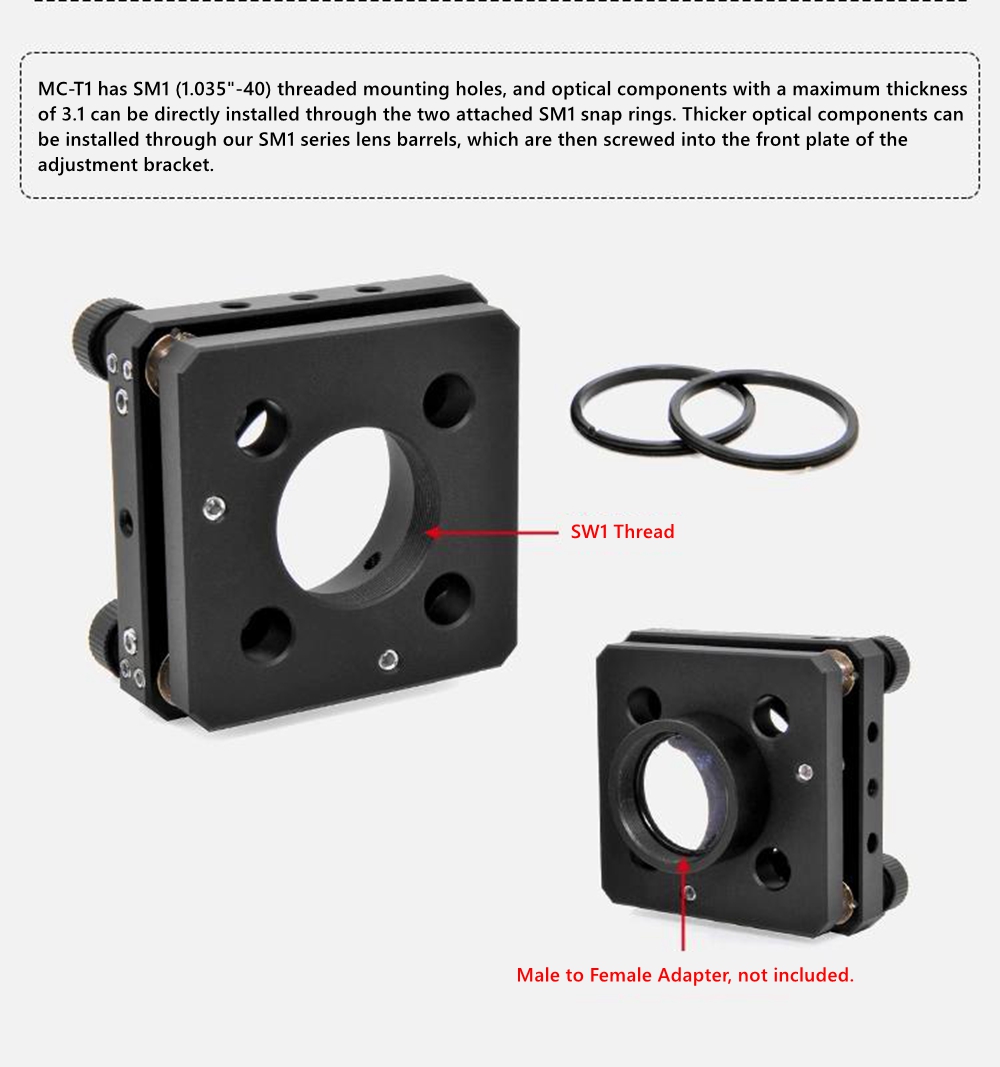

- MC-T1 can install optical elements with a maximum thickness of 3.1mm, and thicker optical elements can be installed through the SM1 series lens barrel.
- M4 screw hole for installing connecting rod.
Package Included:
- 1 x Cage Adjustment Frame
