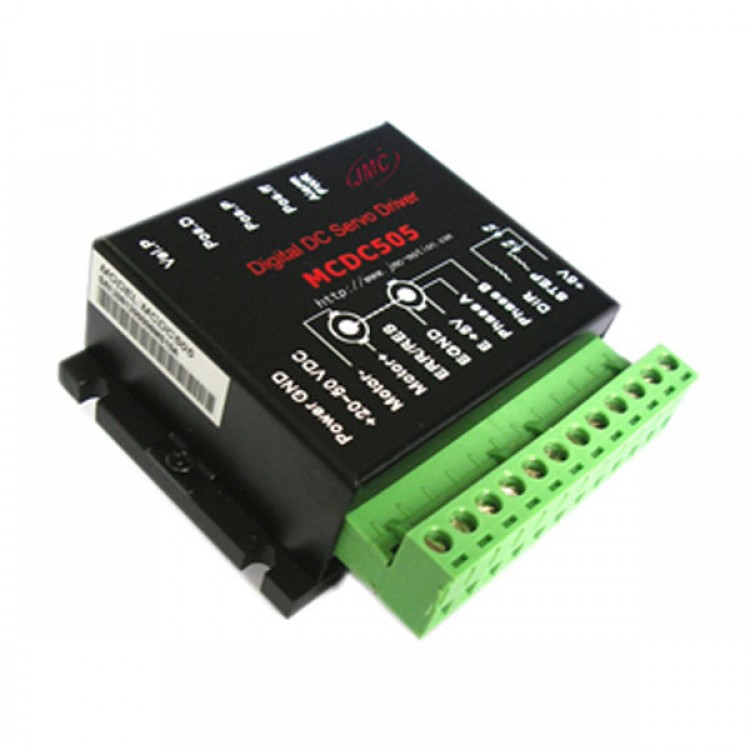

MCDC505 Digital Large Format Printer DC Servo Motor Driver
Product Description
- MCDC505 all-digital DC servo drive system adopts high-performance digital signal processor (DSP) and integrated circuit, and come out to be a cost effective product with simple circuit, high integration, easy operation, and strong practicability. - - MCDC505 provide three feedback loops: position loop, velocity loop and current loop. Three work control mode: position, velocity and torque. McDC505 matches with DC servo motor under 50V and 200W.
Product Feature
- Position control: light isolate input PULSE/DIRECTION;
- 'Speed control: input simulate 0-3.3V voltage signal (speed input by Pos.ff);
- Torque control: input simulate 0-3.3V voltage signal (torque input by Pos.ff);
- Width of current loop (-3dB) 2KHz (standard);
- Width of velocity loop: 500 Hz (standard);
- Width of position loop: 200 Hz (standard);
- Perfect protection against overload, I2T, over-voltage, over current, overheating, short circuit, circuit interruption, chip damage;
- Green light for on, red light for protected mode or offline.
Product Specification/Models
- Input DC voltage range 24—50v(standard);
- Continuous Output power:200W;
- Continuous output current:6A 32KHz PWM;
- Overload output current: 18A(3s);
- Protection: Over current initiated peak value: 30A±10%;
- Overload I2T current initiated value: 300% 5s;
- Overheating initiated value: 80℃;
- Over voltage initiated value: 65 v;
- Under Voltage initiated value: 18V;
- Maximum pulse input frequency:300K;
- Maximum RS232C speed: 19.6Kbps (an extra transfer interface require
- Working environment: No dust, no oil mist and no corrosive air;
- Working temperature: 0-+50℃;
- Storage temperature: -20--+80℃
- Humidity:40-90%RH;
- Cooling method: natural air cooling and forced air cooling;
- Dimension: 74 x 71 x 38 mm
- Weight: about 120g
