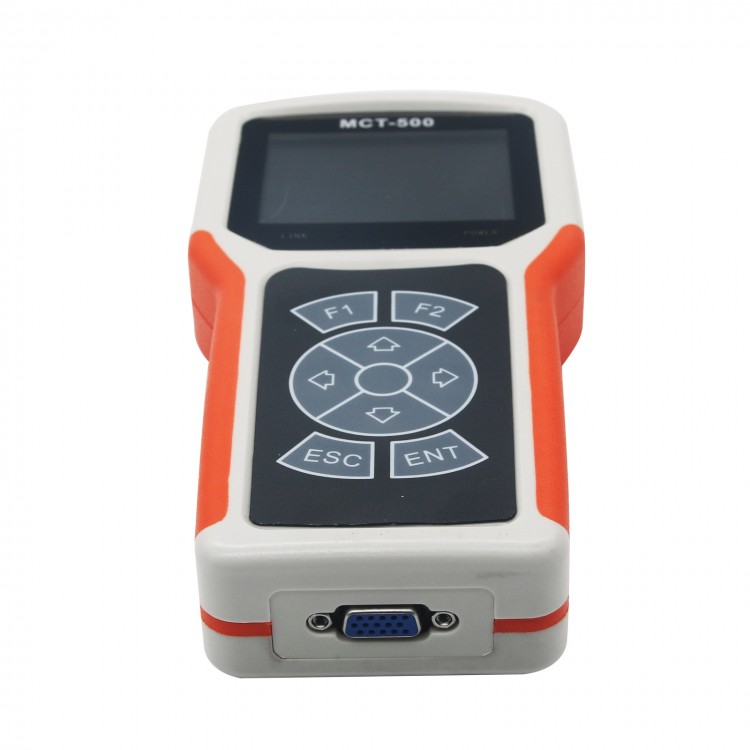

MCT500 Universal Motorcycle Scanner Tool Auto Car Diagnostic Code Reader

MCT500 Universal Motorcycle Scanner Tool Auto Car Diagnostic Code Reader

Description:
- MCT-500 Universal Motorcycle Scanner Tool Support Multi-languages
- Support Multi-Language: Chinese, English, Vietnamese Indonesian
- Support Multi-Brand Motorcycles, hand-held device, operation easy.
- Contain all kinds connect cable for different Motorcycle model.
- Support both CAN and K-Line protocols.
- Support motorcycle model List: HONDA,SYM,KYMCO,YAMAHA,PGO,SUZUKI,AEON,HARTFORD,KAWASAKI,VA,BENELLI,KTM.

Feature:
- Retrieve ECU information
- Display live data stream
- Read fault codes
- Clear fault codes
- Component test
- Special Function，such as: oil reset, ISC reset, CO adjustment etc
- Support view waveforms and the numerical curve changes in data steam.

Specifications:
- Power: DC10-15V
- Workign current: 250mA
- Screen: 160*105 LCD
- Storage temperature:-10~50 degree C
- Operating temperature: 0-75 degree C
- With USB port

MCT-500 Motocycle Scanner Support protocol:
- K-line and CANBUS protocols.

MCT-500 Motocycle Scanner Update:
- Connect the USB cable with PC, select "USB storage" option, the PC will detect the device as new flash disk.
- Copy the update tool files to the disk, follow the tips to finish updating procedure. ( If your TF card can not be reset, please follow the tips to disconnect and connect power, then finish the updating procedure)

Device can be used as a USB flash disk
- When connect USB cable with PC and select "USB storage" option,  the device can be used a USB flash disk which can save files based on your needs. Disable the flash disk on PC when finish using. The scanner will back to Main Menu automatically.
- Replace TF card and battery
- If the TF card is damaged or the battery is low, open the device back cover to replace.  Make sure the scanner is power off before replacing.

NOTE: MCT-500 Motorcycle scanner's TF card is FAT32 format. Please pay attention when formatting SD card. Otherwise the scanner will not work properly.

Package including:
- 1PC x MCT-500 Main Unit
- 1PC x Main Test Cable
- 1PC x SYM cable
- 1PC x KYMCO cable
- 1PC x SUZUKI-4PIN diagnostic cable
- 1PC x SUZUKI-6PIN diagnostic cable
- 1PC x PGO diagnostic cable
- 1PC x YAMAHA diagnostic cable
- 1PC x Battery Clamp
- 1PC x USB cable
- 1PC x HARTFORD diagnostic cable
- 1PC x AEON-1diagnostic cable
- 1PC x HONDA diagnostic cable
- 1PC x PIAGGIO/VESPA diagnostic cable
- 1PC x KAWASAKI-4PIN cable
- 1PC x KAWASAKI-4P/6PIN cable
- 1PC x TF Card
