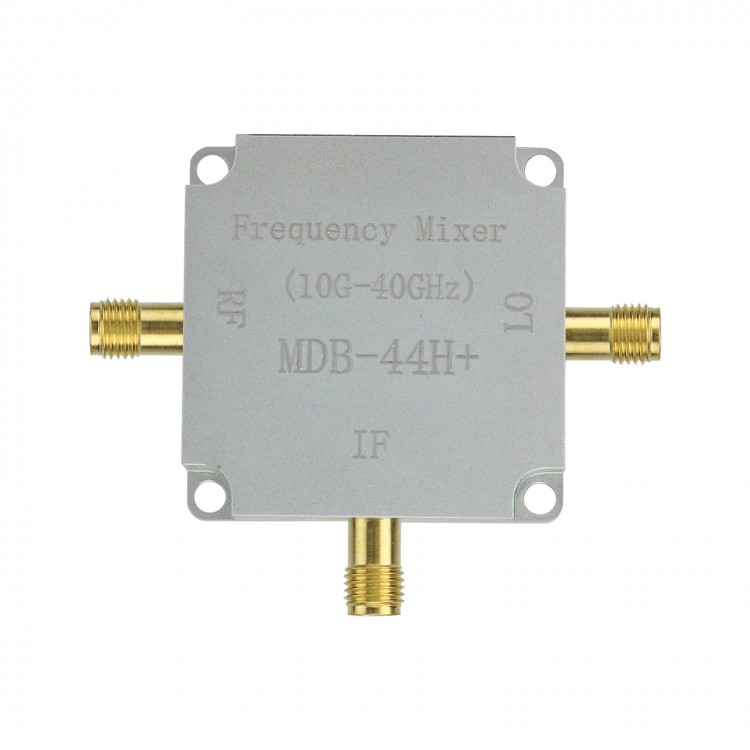

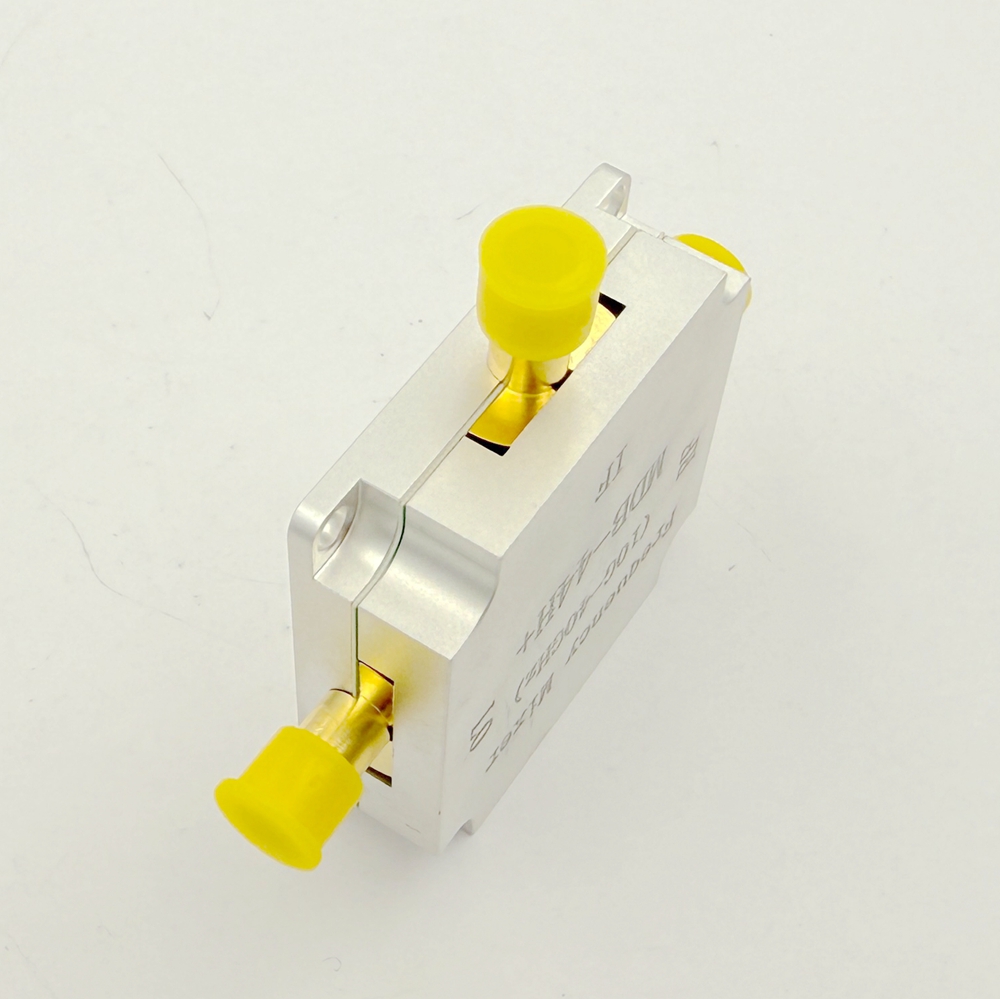

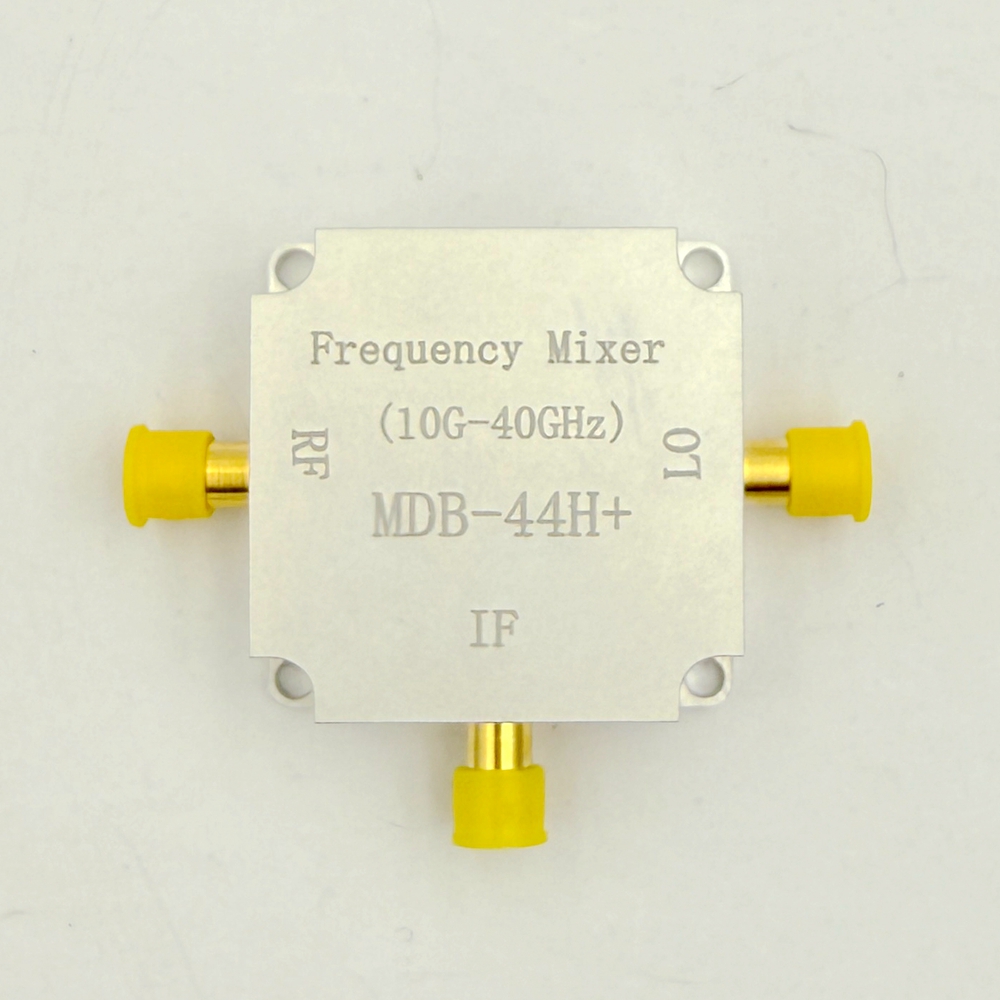

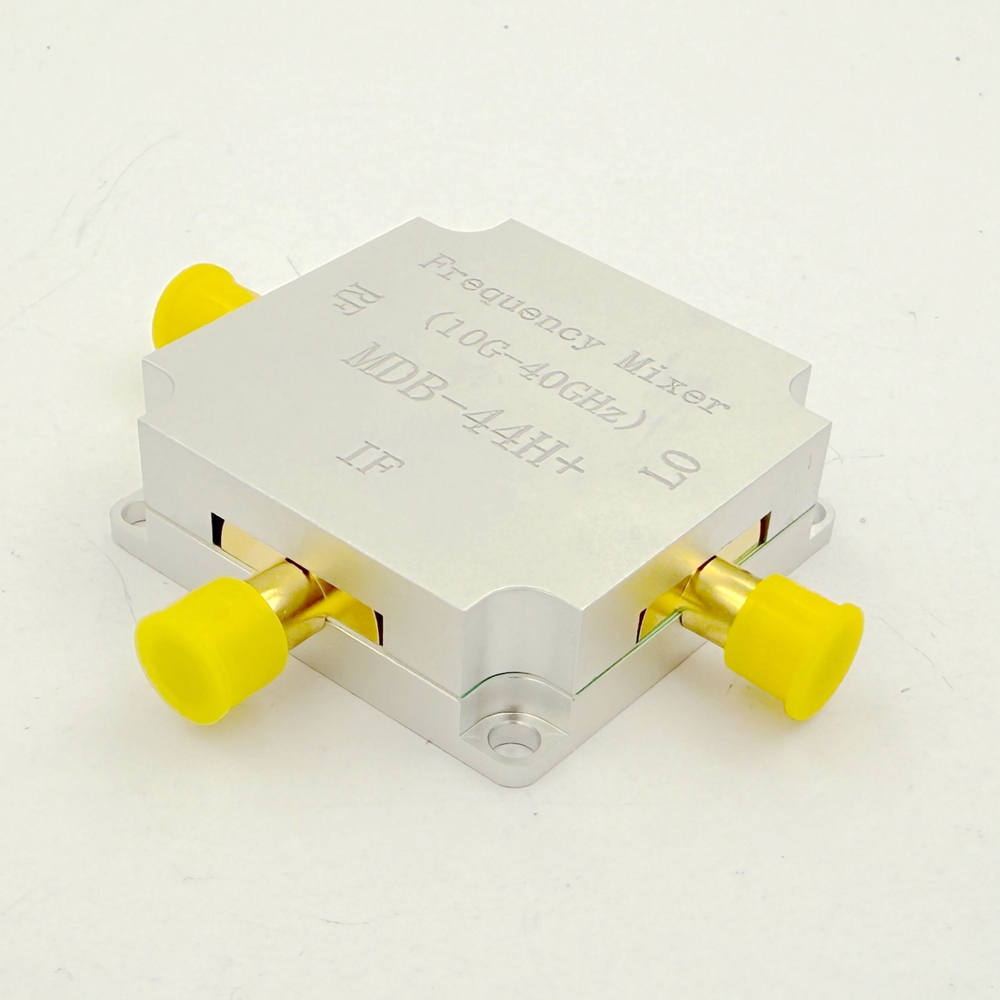

MDB-44H+ 10G-40GHz Ultra-wide Band Passive Frequency Mixer RF Up/down Converter with SMA Female Connector
Description:

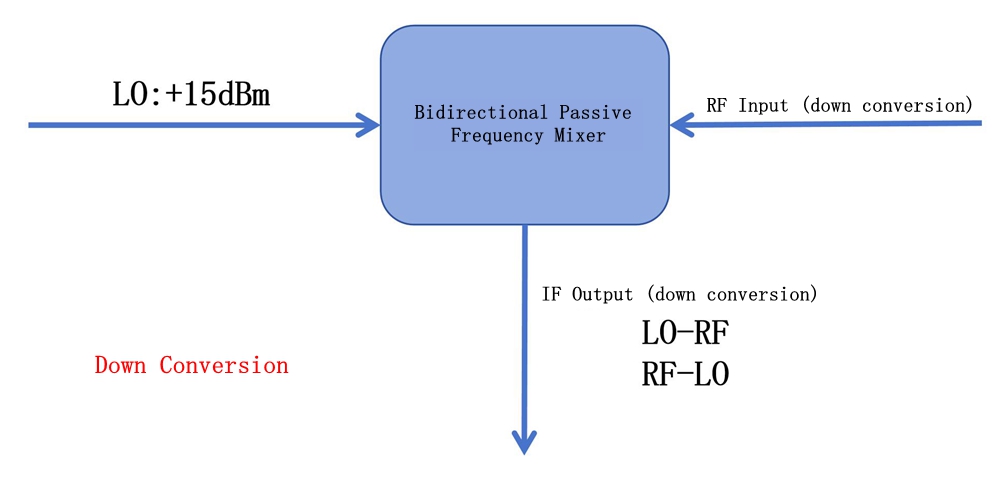

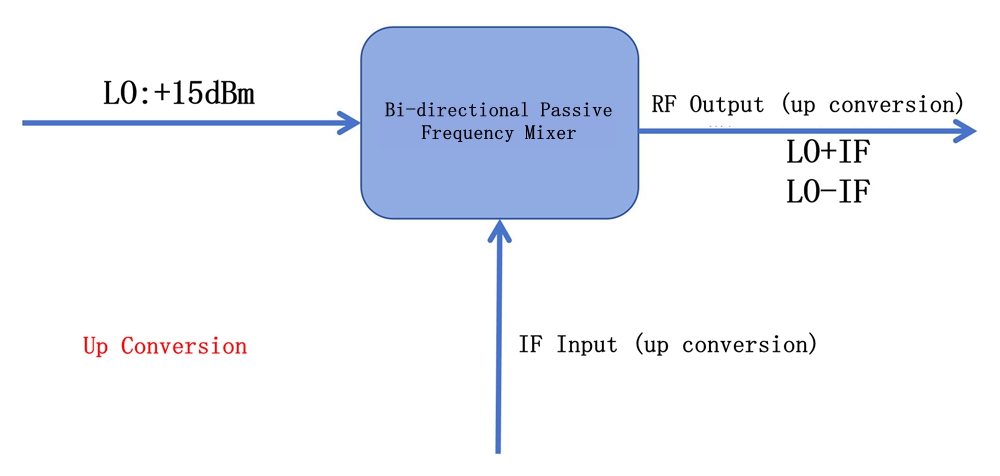

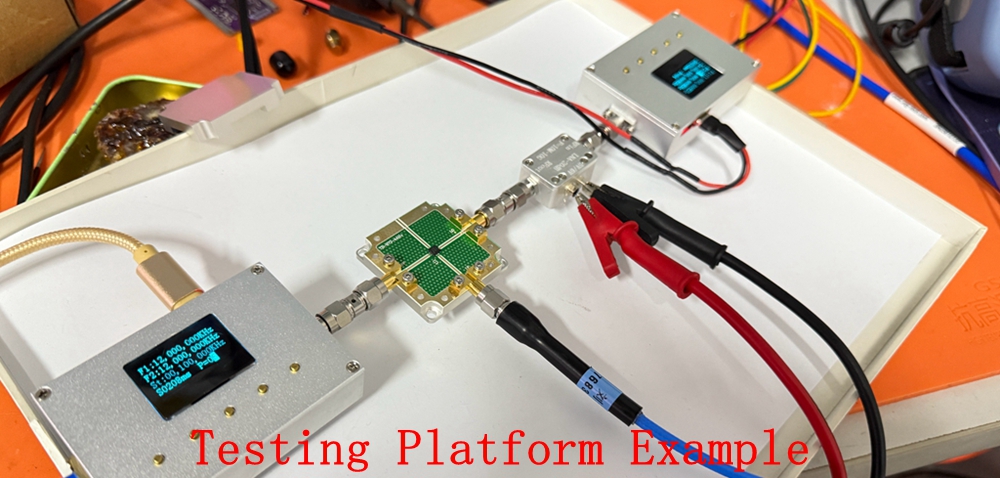

- The ultra wideband double balanced mixer covers a frequency range of 10G-40G, and the intermediate frequency operating frequency range covers DC-15G. It can operate in the C, X, Ka, and Ku bands as an ultra wideband mixer. The RF connector adopts a high-performance clamp type SMA connector, which can be used as a broadband up and down conversion module for transceivers, with good high isolation and IIP3. The intermodulation spurious generated after mixing is very small. The module provides a size diagram, which can be directly used as a system module or as an up and down conversion verification platform.
Specification:
- RF: 10GHz - 40GHz; RF signal
- LO: 10GHz - 40GHz; local oscillator signal (power > 15dBm)
- IF: DC-15GHz; intermediate signal
Package Included:
- 1 x Frequency Mixer
