MDP-XP Digital Power Supply Set Programmable Power Supply Kit Adjustable Digital DC Power Supply

MDP-XP Digital Power Supply Set Programmable Power Supply Kit Adjustable Digital DC Power Supply

Description:

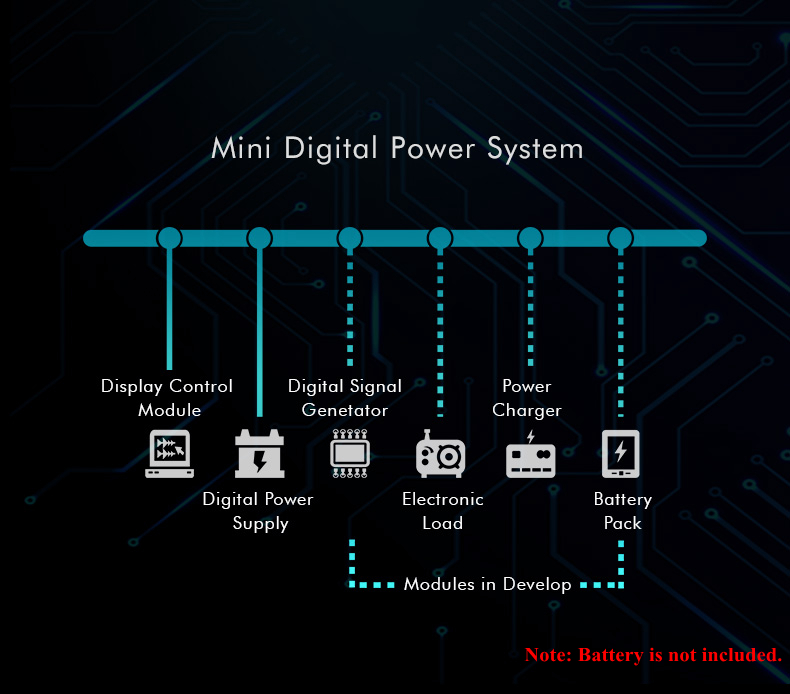

MDP (Mini Digital Power System) is a system of programmable linear DC power supply based on modular design, capable of connecting different modules for use as needed.

MDP-XP consists of a display control module (MDP-M01) and a digital power supply module (MDP-P905). Through 2.4G wireless connection, it achieves multichannel free combination at the power of 90W per channel. MDP-XP is a high cost-effective programmable linear DC power supply, featuring indicators, stability, reliability and distinct user interface comparable with professional power supplies; it also provides programmable output, timing output, sequential control, automatic compensation and other powerful functions, so as to meet diversified testing needs.

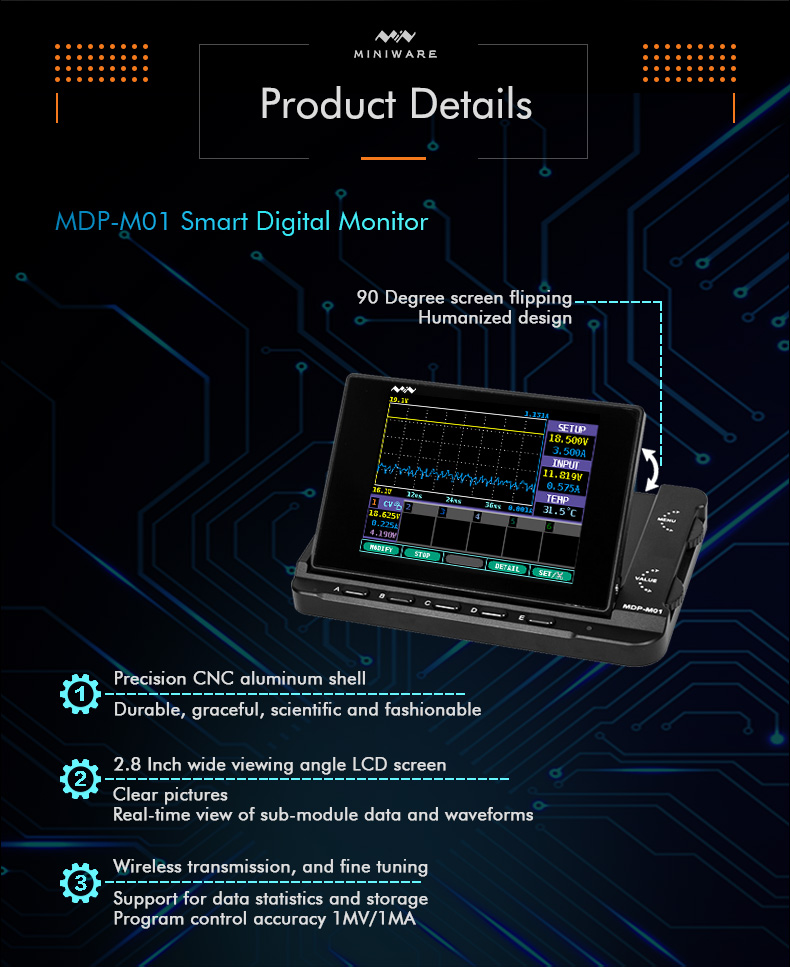

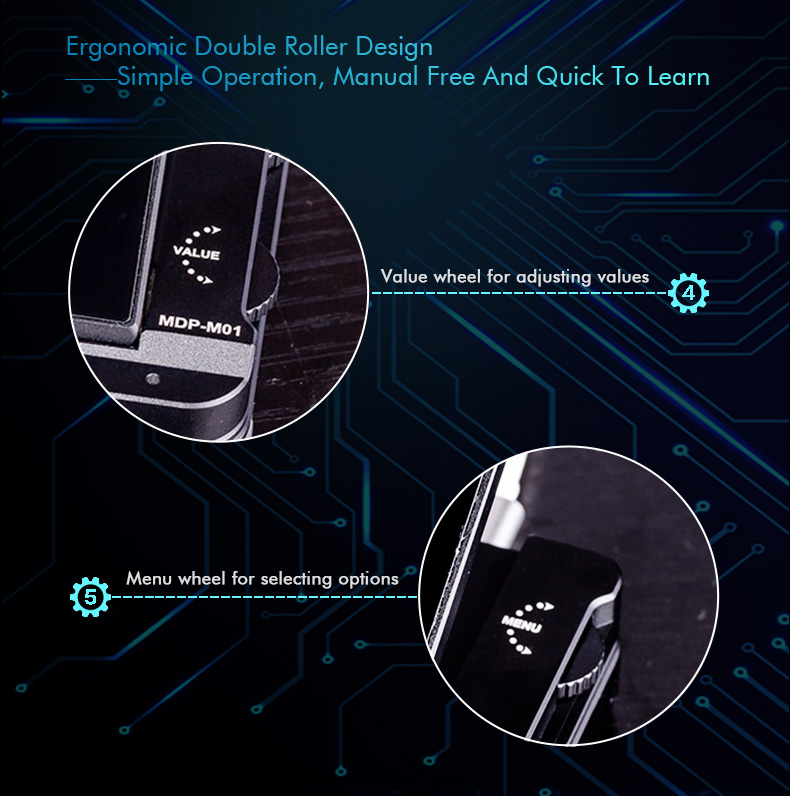

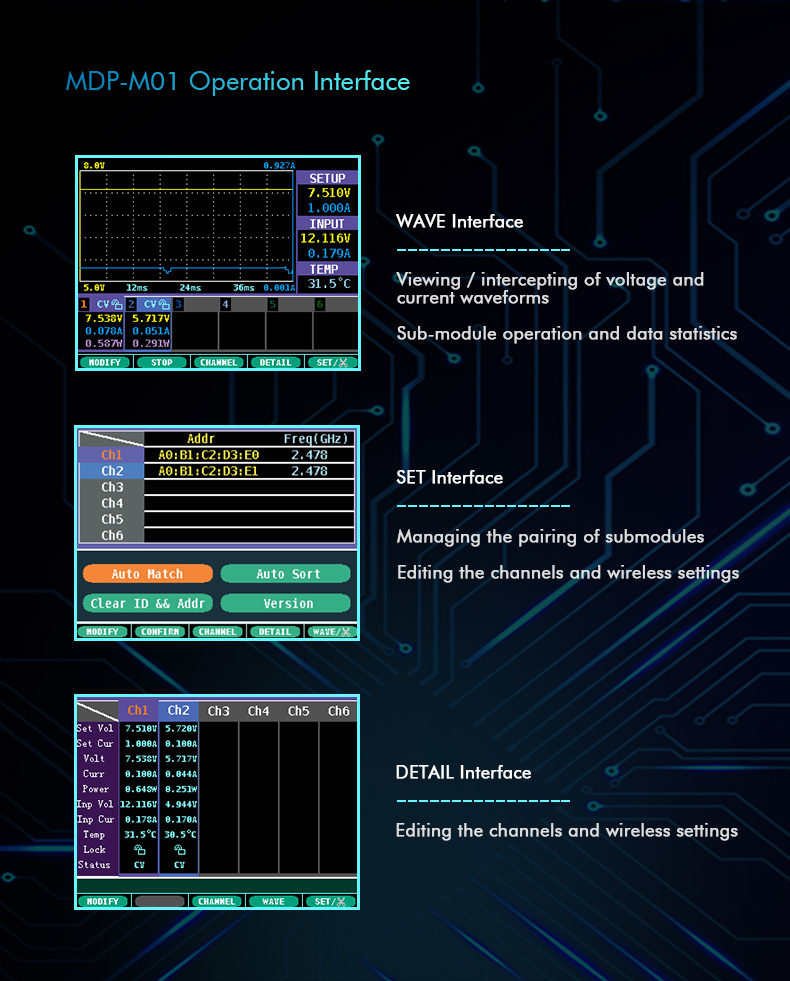

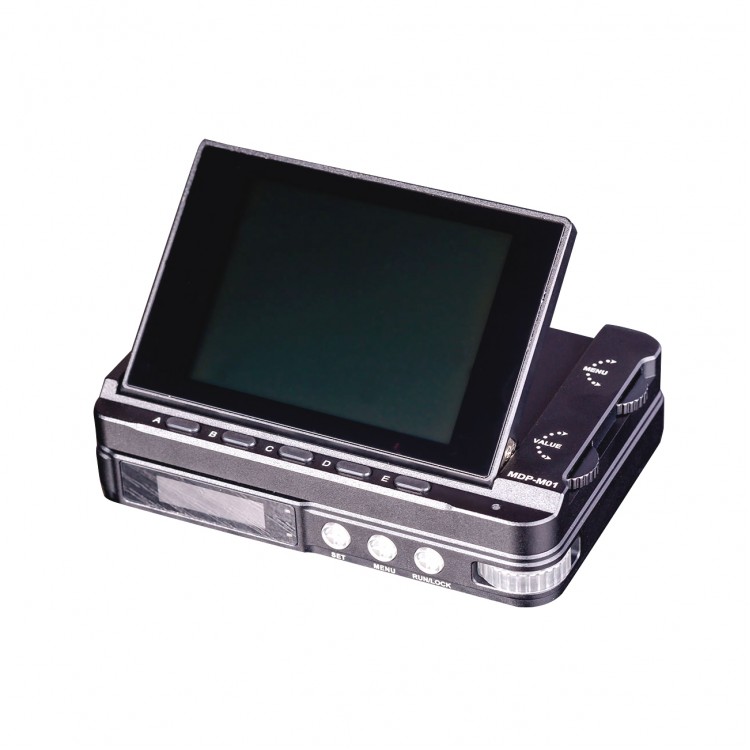

MDP-M01 Display Control Module: Equipped with a 2.8-inch TFT screen, it can display the voltage-current waveform in real time, support data statistics, and automatically pair with and control six sub-modules (digital power modules), with dual thumb wheels and 90-degree scrolling user-friendly design.

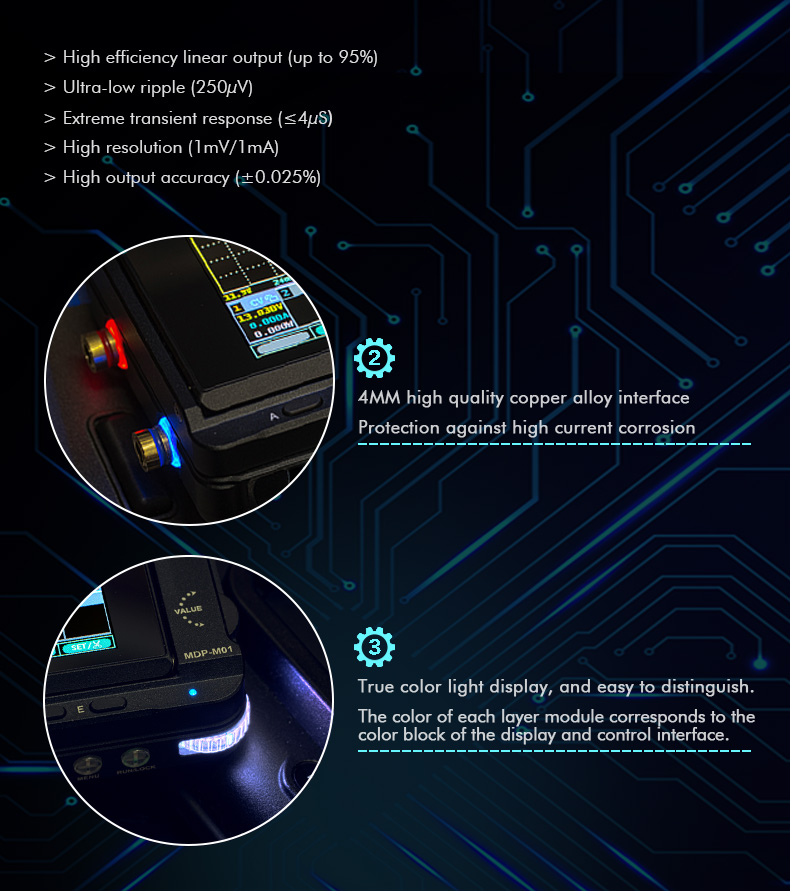

MDP-P905 Digital Power Supply Module: High efficiency linear output, 0.25mV ripple wave, high-speed transient response, and supporting precise fine-tuning.

MDP Tutorial Video:
https://www.youtube.com/watch?v=BU_ZSer5koI
https://v.qq.com/x/page/y0917njp13r.html

Product Features:

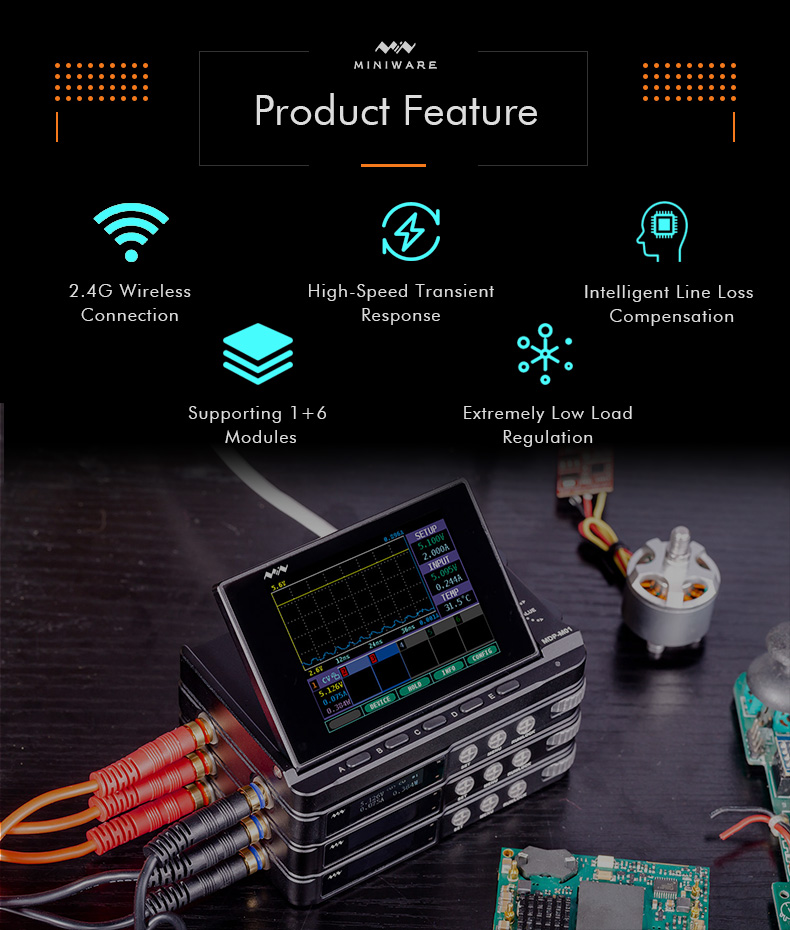

- 2.4G wireless connection, support 1 display control module + 6 sub-modules

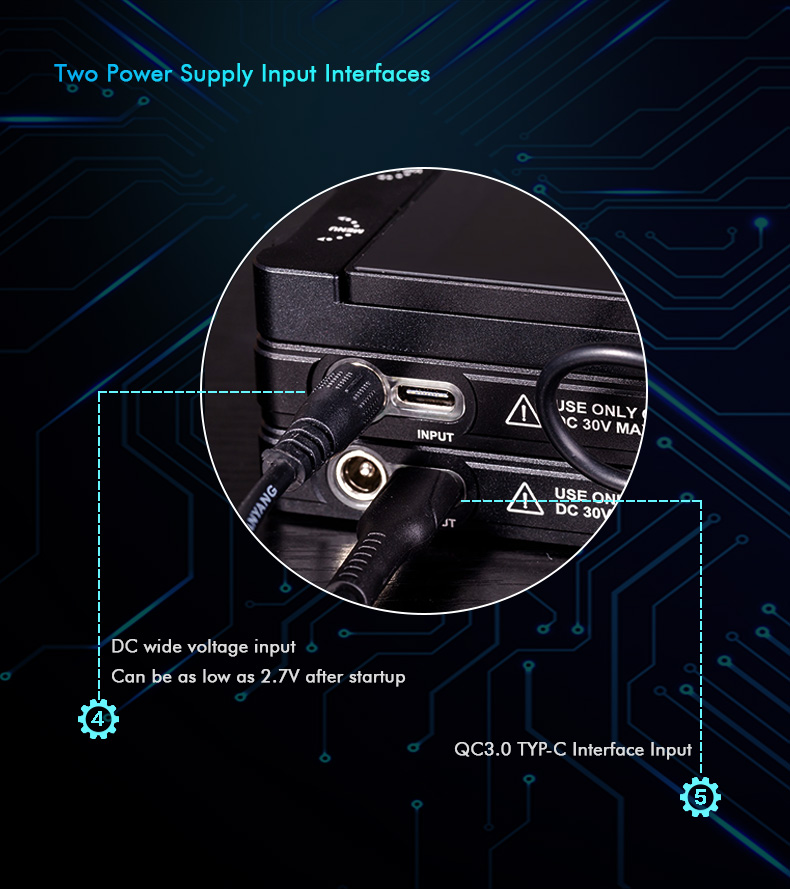

- DC wide voltage input 3.6V-30V, after starting it can be as low as 2.7V
- Extremely high-speed transient response and over-current protection, as low as 4uS
- Very low load adjustment rate, intelligent line loss compensation
- High efficiency, 90W full load natural heat dissipation

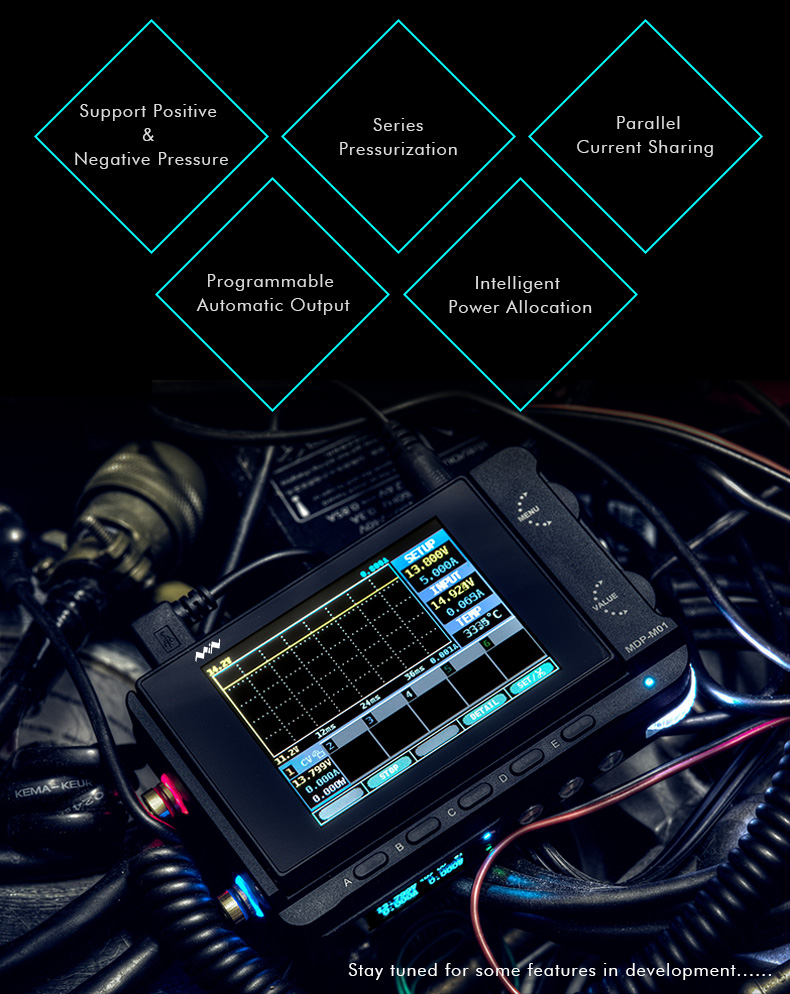

- Support positive and negative voltages, series boost, parallel current sharing, arbitrary combination of coordinated load, intelligent power allocation

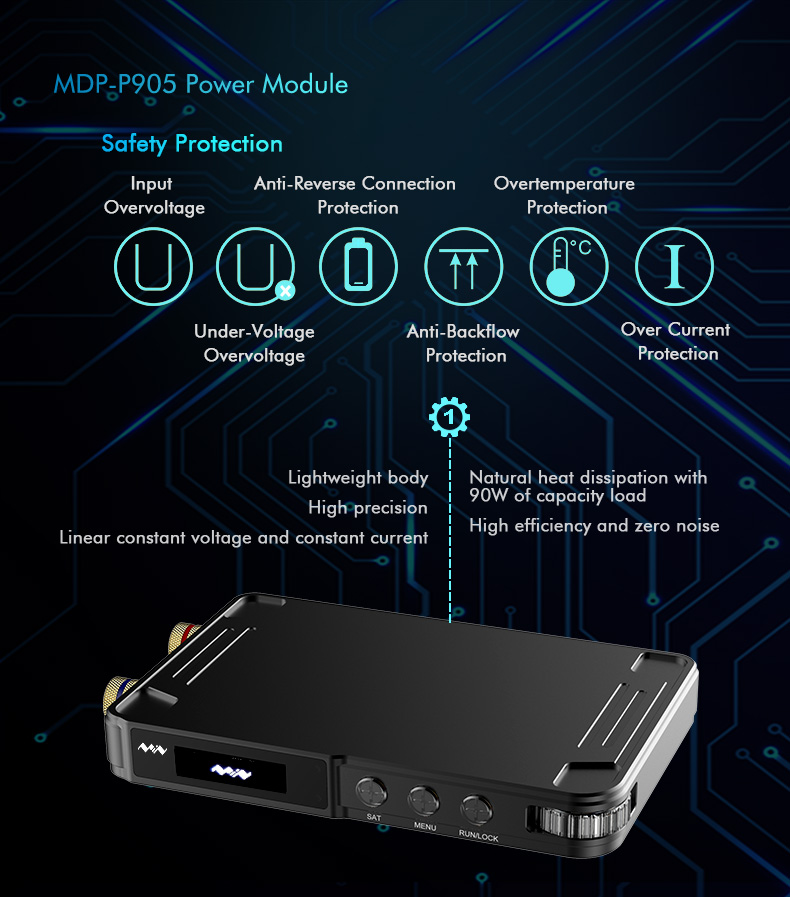

- Safety protection: input over-voltage, under-voltage protection, anti-reverse protection, anti-backflow protection, over-temperature protection, over-current protection

Application:
- Universal tests and teaching experiments in R&D laboratory
- Maintenance of cellphones, laptops and other digital products
- Power supply testing and data logger of RF and microwave circuits or modules
- Supply purified power for high-accuracy digital-analog hybrid circuits and Hi-Fi audio devices
- Property verification and fault diagnosis of devices and circuits
- Quality control and quality inspection
- Emergency power supply for model airplanes and vehicles

Performance Parameters:
- Model: MDP-XP
- Input Parameters: DC3.6V-30V(2.7V after startup), 100mA-6A, support QC3.0
- Single-way Output:    30V/5A, 90W
- Adjustment rate:
* Load adjustment rate <±0.01^%
* Power adjustment rate <±0.01^%
- Ripple and noise: 250uVrms/3mVpp
- Transient response time: ≤ 4uS
- Line loss compensation range: 5mR-100mR
- Protections: Input over-voltage, under-voltage protection, anti-reverse protection, output anti-backflow protection, over-temperature protection
- Data record: Max. storage: 7MB, Max. recording time: 24 hours.
- Others:
* Automatically shut down and enter micro-power mode
* Support USB firmware upgrade
* Support user calibration

MDP-M01:
- Screen Size: 2.8-inch TFT LCD display
- Resolution: 320*240
- Module Size: 101.5 x 64 x 12 mm
- N.W.: 133g

MDP-P905:
- Module Size: 107 x 66 x 13.6mm
- N.W.: 143g
- Input Parameters: DC4.2V-30V (2.7V after startup), 100mA-6A, support QC3.0
- Single-way Output:    30V/5A, 90W
- Adjustment rate:
* Load adjustment rate <±0.01^%
* Power adjustment rate <±0.01^%
- Ripple and noise: 250uVrms/3mVpp
- Transient response time: ≤ 4uS
- Line loss compensation range: 5mR-100mR
- Protections: Input over-voltage, under-voltage protection, anti-reverse protection, output anti-backflow protection, over-temperature protection
- Data record: Max. storage: 7MB, Max. recording time: 24 hours.
- Others:
* Automatically shut down and enter micro-power mode
* Support USB firmware upgrade
* Support user calibration

Package Included:
- 1 x Set of Digital Power Supply

Note: All pictures below are application scenarios, the accessories shown are for reference only. Please refer to the actual delivery list.
