MDSO USB Bandwidth 20M Dual-Channel Digital Storage Oscilloscope + Data Logger


Introduction
- MDSO dual-channel digital oscilloscope, with "low-cost, high-performance" as the design goals. well-designed bandwidth of 20M, 48M sampling rate, 2 channels, alternating support X, Y and XY alternating pattern of two-channel virtual oscilloscope, spectrum analyzer and data recorder.

Powerful analysis function :
- Support any multi-screen display, Easy to Variety of analysis;
- Support the input waveform interpolation;
- Support the input waveform, "add", "subtraction" and "multiplication" synthesis;
- Support the input waveform plus Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gauss, dolph_chebyshev 18 kind of window;
- Support the input waveform filtering and design filter;
- Support the input waveform, "Lissajous", "Amplitude", "phase", "log Amplitude", "self-power spectrum", "log self-power spectrum" ,"cross-power spectrum", "log cross-power spectrum" ,"auto-correlation" and "cross-correlation "analysis;
- Support under logarithmic coordinate system, the input waveform, "Amplitude", "phase", "log Amplitude", "self-power spectrum", "log self-power spectrum" ,"cross-power spectrum", "log cross-power spectrum" ,"auto-correlation" and "cross-correlation "analysis.

Powerful data recorder function:
- Support continuous data collection and storage, and can move, zoom, view global data, and compare multiple data collection;
- High-speed USB2.0 for fast transfer, unlimited long the collected data, records into files for easy viewing and analysis of collected data;
- 24M of continuous recording up to meet the acquisition function of the general agreement, such as SPI, IIC, UART, etc.

Feature Description
- Oscilloscope / spectrum analyzer:
- Bandwidth  20M
- Sample  48M
- Channel  2
- Input voltage range  [-50V,+50V](With probe X10)
- Memory depth   1M*2
- AD Bit   8
- Software trigger rising, falling, rising / falling, differential, rising /  falling+differential
- Analysis    Waveform Synthesis:  Add, subtract, multiply;

Filter processing: IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design; FIR filter supports arbitrary range of frequency sampling method , and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design.

Waveform analysis: Lissajous, "Amplitude", "phase", "log Amplitude", "self-power spectrum", "log self-power spectrum" ,"cross-power spectrum", "log cross-power spectrum" ,"auto-correlation" and "cross-correlation ".

Collection frame   Continuous function of captuer the frame


Note: Due to computer USB voltage differences, the oscilloscope measurement results may have some bias, needs your own manual calibration, the specific reference to the oscilloscope use.

- data recorder:Sample 0.25M~24M
- Channel 2
- Input voltage range [-50V,+50V](With probe X10)
- AD Bit 8
- Data View  The stored data can be continuous, and support global, zoom and move the viewing.

Note: The specific speed recorder with computer processing speed, and if use high sampling rate, the situation may break.


Package List:

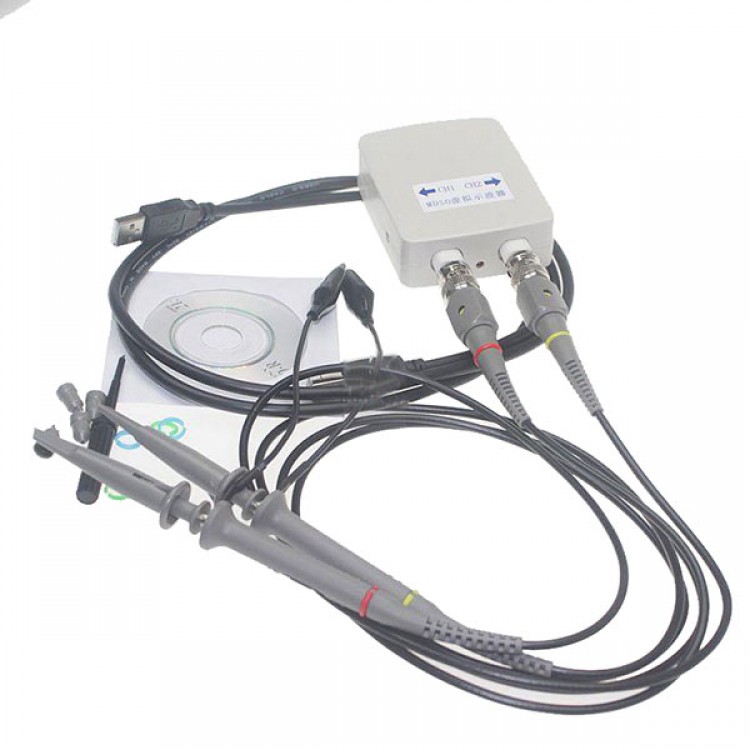

- 1 * MDSO Host
- 1 * USB Cable
- 2* 40MHz probe
