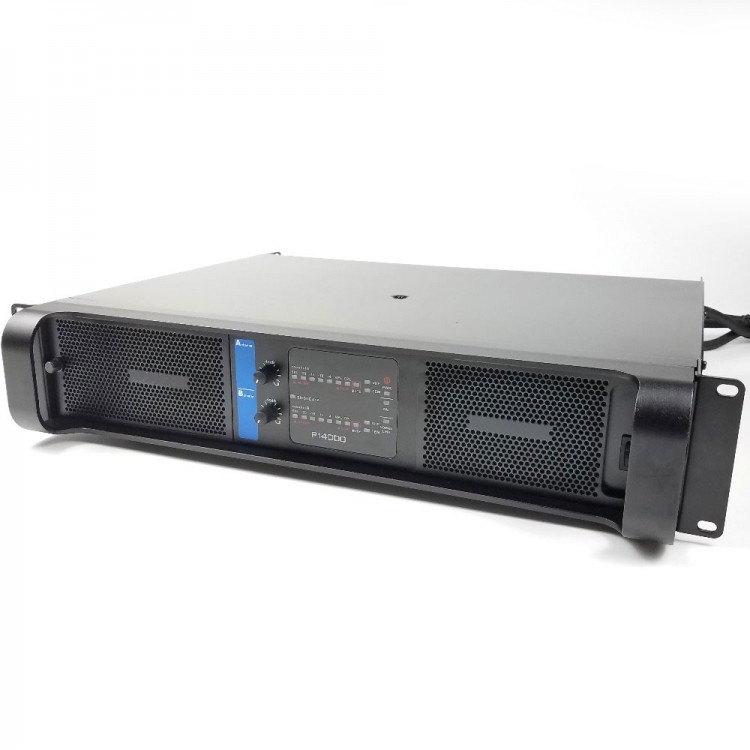

MDWSS FP14000Q 2x2350W Digital Power Amplifier Power Amp Designed for KTV High-end Stage Performance

MDWSS FP14000Q 2x2350W Digital Power Amplifier Power Amp Designed for KTV High-end Stage Performance

Features:
TD Class High-Power Line Amplification:
* Professional TD Class line design with independent power supply reduces noise and distortion and increases power usage.
* Power conversion within one millionth of a second ensures accurate output.
* Independently powered channels ensure high power and make the sound more detailed and soft.

Professional Amplifier
* The new Class H line design and independent power supply greatly reduce intermodulation distortion and noise.

Powerful Driving Force
* The powerful explosive power makes every pitch burst instantly.

Dual-channel High Power
* 2350W+2350W channels provide high power output and continuous strong power.
* The amplifier features a professional, instantaneous response construction and its dual outputs enable greater dynamic power push to ensure a continuous flow of power.

24-hour Uninterrupted Operation
* Output current limit, DC protection, filter protection, over0temperature protection, short circuit protection.
* 4 high-speed fans for cooling.
* Overload protection: with overload and over-current protection.

Copper Heat Dissipation Module
* Copper for the electrical industry helps to dissipate heat quickly.

FP Series Power Amplifier
* Support 2~8 ohm load.
* 2x2350W at 8 ohms.
* Designed with a metal panel.
* Four fans enables excellent heat dissipation performance.
* Superb circuit layout.
* With LED indicator light.
* Strong power performance.
* Professional limiting protection.
* Knob with damping feel.
* Due to handles, it is easy to move.

Energy Storage Pool
* Enables high power while providing plenty of energy. It can effectively protect the switching power supply from damage and ensure stable output.

Premium Components
* 24 original high-power semiconductor chips for Toshiba are used to make the sound round, thorough and friendly to listeners' ears.
* Four built-in cooling fans contribute to efficient and fast heat dissipation.
* Automatic detection module: VHF high-frequency filter voltage limiting function module prevents direct current.
* High-frequency transformer: One imported custom capacitor transformer increases the speed of charging and discharging. And at low frequencies, its effect is better.
* Large imported filter capacitors: 10pcs TD class filter large capacitors with ultra-large capacity are used, so that the low-frequency sound is soft, the mid-frequency sound is round and full, and the high-frequency sound is clear and thorough.

Widely Used
* Dedicated to high-end stage performances.
* It can be used for large-scale stage performances, bars, leisure clubs, KTV, family karaoke, conferences, etc.

Specifications:
* Model: FP14000Q
* Output power/single channel at 8Ω: 2350W
* Output power/single channel at 4Ω : 4400W
* Output power/single channel at 2Ω : 7000W
* 8Ω bridge output power/single channel: 8800W
* 4Ω bridge output power/single channel: 14000W
* Frequency response (1W, 8ohms) at ±3dB: 6.8Hz-34.2KHz
* THD at 1KHz: <0.05%
* SNR: >112dBA
* Damping factor: >2000
* Crosstalk: >70
* Input sensitivity: 23, 26, 29, 32, 35, 38, 41 and 44dB
* Input impedance: 20KΩ/balanced
* Output type: FTD

Package Included:
* 1 x Power Amplifier
