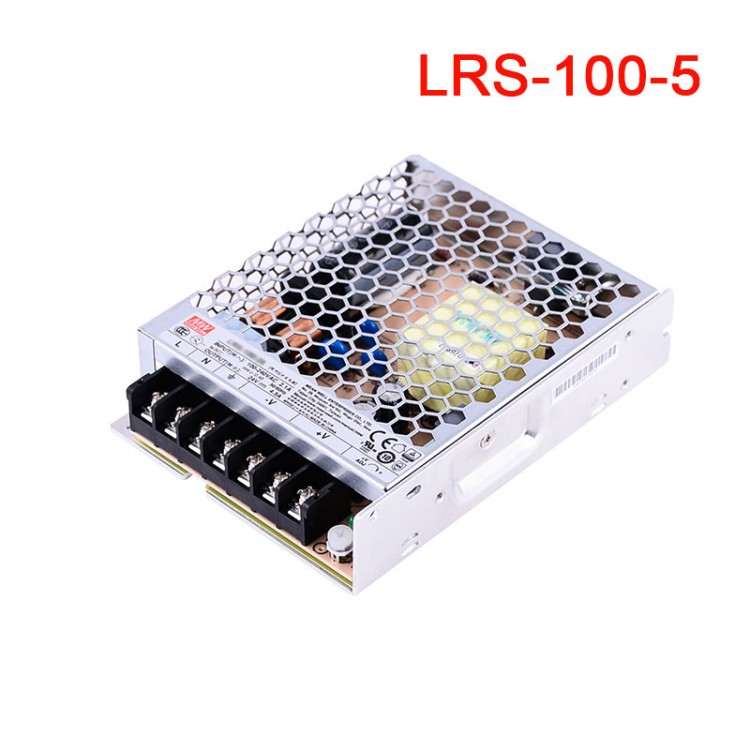

Mean Well LRS-100-5 5V 18A 90W PC Power Supply Unit PSU Single Output Switching Power Supply
Description:
LRS-100
series is a single-output enclosed type power supply with 30mm of low
profile design. Adopting the full range 85~264VAC input, the entire
series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V
and 48V.
In addition to the high efficiency, the design of
metallic mesh case enhances the heat dissipation of LRS-100 that the
whole series operates from -30℃ through 70℃ under air convection without
a fan. Delivering an extremely low no load power consumption (less than
0.3W), it allows the end system to easily meet the worldwide energy
requirement. LRS-100 has the complete protection functions and 5G
anti-vibration capability; it is complied with the international safety
regulations such as TUV BS EN/EN2368-1, BS EN/EN60335-1, BS
EN/EN61558-1/-2-16, UL62368-1 and GB4943. LRS-100 series serves as a
high price-to-performance power supply solution for various industrial
applications.
Features:
- Universal AC input/Full range
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit/Overload/Over voltage
- Cooling by free air convection
- Miniature size and 1U low profile
- Compliance to IEC/BS EN/EN 60335-1 (PD3) and IEC/BS EN/EN61558-1, 2-16 for household appliances
- Operating altitude up to 5000 meters (Note.7)
- Withstand 5G vibration test
- LED indicator for power on
- No load power consumption<0.3W
- Over-voltage category Ⅲ
- 100% full load burn-in test
- High operating temperature up to 70℃
- High efficiency, long life and high reliability
Applications:
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipment or apparatus
- Household appliances
Package Included:
- 1 x DC Power Supply
