The ATS520 series has four models:
ATS520: Dual power intelligent switching module;
ATS520I: On the basis of ATS520, the electric energy measurement function is added.
ATS520R: RS485 port is added on the basis of ATS520.
ATS520IR: On the basis of ATS520, power measurement and RS485 port are added.
Description:
-

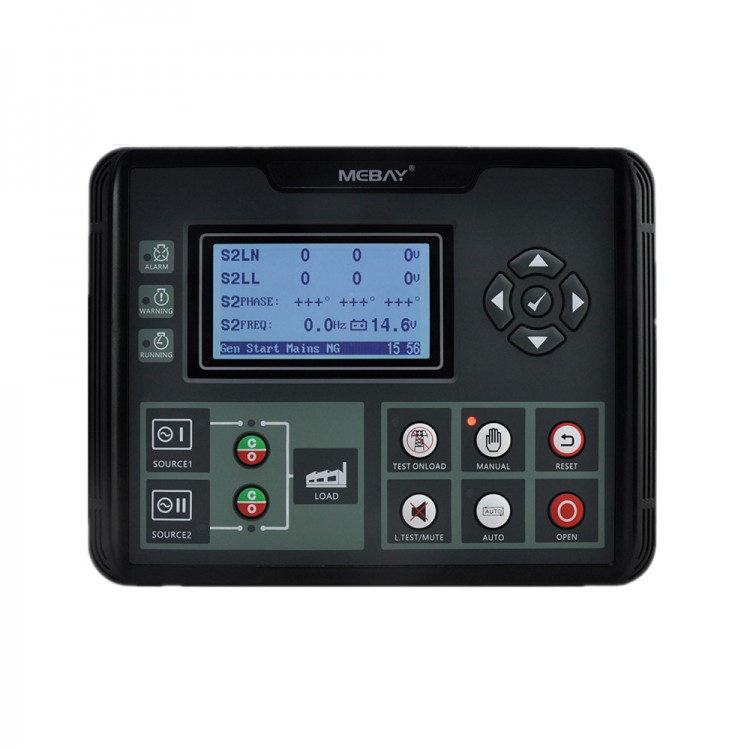

This series of controllers is a dual power switching controller, which
has programmable function, automatic measurement and control, LCD
display of dual power intelligent switching module.
- This controller
uses 3.5 inch 240*128 large screen high resolution LCD display, a
completely new and original UI design.Controller built-in Simplified
Chinese, English and other display interfaces can be selected, and
language interface can be customized according to customer requirements.
-
All parameters of the controller can be adjusted by keys on the
controller panel, or adjusted and monitored by PC through USB port or
RS485 interface.
- It can be widely used in various types of power systems.
Specification | |
Working voltage | DC8-36V Continuous |
Power consumption | Standby：24V：MAX2W |
Working：24V：MAX6W | |
1P2W 30VAC-369VAC(L-N) | |
2P3W 30VAC-625VAC(L-L) | |
3P3W 30VAC-625VAC(L-L) | |
S1 Close Output | 16Amp(AC250V) free output |
S2 Close Output | 16Amp(AC250V) free output |
Programmable Relay output 1-6 | 10Amp(AC250V) free output |
Switch value input | Available if connecting with Battery- |
Working condition | -25-65℃ |
Over all dimension | 210mm*160mm*50mm |
