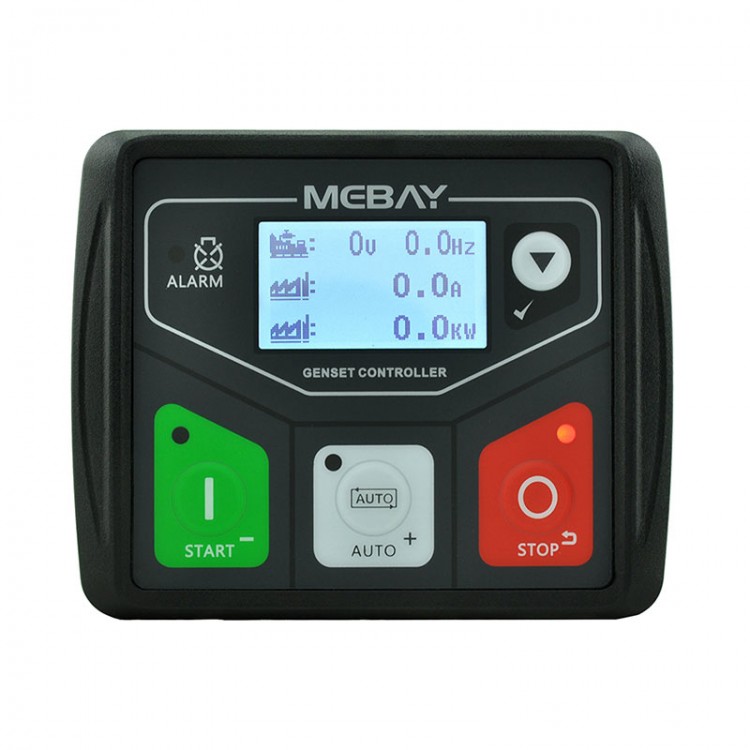

MEBAY DC30D Genset Controller Generator Controller Generator Control Module with 1.8" LCD Display

MEBAY DC30D Genset Controller Generator Controller Generator Control Module with 1.8" LCD Display

Summary:
This Controller Series is specialized for small diesel, gasoline, gas generator sets' start, stop, monitor and defaults checking as well as parameters setting.

With a point array LCD screen, it can display various faults in the same time that the genset will be stopped once it can not work smoothly.

There are Chinese/English interface options, more language can be set according to user's request. All the parameters can be configured through the front face buttons or use programmable interface by USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.

Main Features:
- 32 units Micro-procession technology is used
- 1.8" 128*64 LCD display with backlight, option language interface (Chinese/English), user's language set if necessary
- PC front face panel, which is water-proof, oil-proof, and UV-proof so that the durability is longer
- USB Port: parameters can be set even without power
- All the parameters can be set through front panel buttons
- Collect and display a variety of engine and generator parameters
- Records function: relative faults shall be recorded in real time
- It has 5 relay outputs, 3 of which are configurable, and more than 10 functions can be selected for each channel
- 1 switch value input, and each can be set as max 20 functions
- 3 sensor simulation input connectors, various kinds of units can be set
- Sensor can be self-defined by front face button or PC software
- Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen
- Control Protection:Auto Start/Stop of genset,load transfer and perfect failure display and protection
- Standard water-proof rubber gasket. The waterproof can reach IP54
- Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily

Parameters Display:
- Engine RPM
- Engine oil pressure
- Engine temperature
- Engine fuel level
- Engine battery voltage
- Generator voltage L-N
- Generator current A
- Generator Frequency Hz
- Generator active power KW
- Successful start Times
- Current running time
- Total running time
- Classes maintenance notice

Protection:
- Over speed
- Under speed
- Low oil pressure
- High temperature
- Low fuel level
- External emergency alarm
- Sensor Open
- Over Frequency
- Under Frequency
- Over voltage
- Under voltage
- Over current
- Maintenance expire
- Low water level alarm
- Emergency stop
- Crank failure
- Stop failure
- Over battery voltage
- Under Battery voltage

Package Included:
- 1 x Genset Controller

Note:
- Battery is not included.
