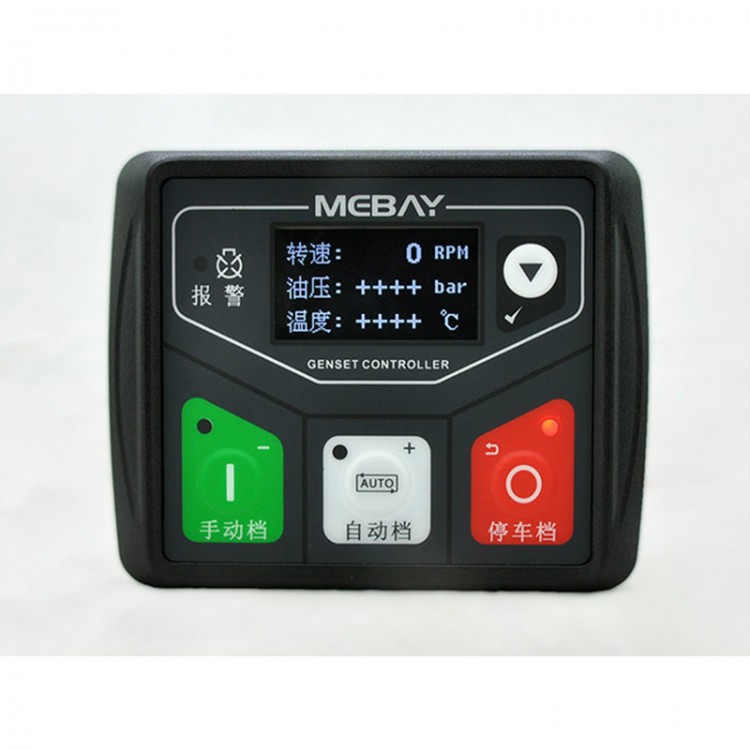

MEBAY DC30MR Ultra-Low Temperature Genset Controller Generator Set Controller for Generators

MEBAY DC30MR Ultra-Low Temperature Genset Controller Generator Set Controller for Generators

Description:
The genset controller is designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets. It supports parameter setting.

The controller has built-in Chinese Simplified and English display interfaces. All parameters of the controller can be adjusted through the controller panel buttons, or adjusted and monitored through the RS485 communication port using a PC. It can be widely used in various types of generator set automation systems.

Features:
- It adopts 32-bit original high-performance MCU control;
- High-resolution LCD display, with Chinese and English switchable, can be customized according to customer needs;
- Made of PC material, its buttons and panel are waterproof, oil-proof and anti-ultraviolet, with good operation feeling and long service life;
- With RS485 interface: parameters can be set and monitored in real time through RS485 interface;
- Collect and display engine speed RPM, oil pressure kPa/PSI, temperature °C/°F, oil level %, battery voltage V, this running time H, cumulative working time H, etc;
- Collect and display generator frequency Hz, voltage V, current A and power KW;
- Maintenance countdown and reminder function;
- With black box function, real-time saving of the relevant parameters of the unit when the fault alarm, convenient to find the cause of the unit failure;
- 6-way relay outputs, of which 4 output functions can be configured;
- 1-way switch input, function configurable, nearly 10 functions can be enabled;
- 3-way analog inputs, configurable function, selectable as sensor input or switching input;
- A variety of starting conditions (speed, frequency and oil pressure) combination can be selected;
- With waterproof ring: protection performance is IP54 after panel installation;
- Modular design: all wiring is completed through European-style terminals. It is very easy and convenient to finish assembly, connection, maintenance and replacement of equipment.

Parameter Display:
- Engine speed;
- Engine oil pressure;
- Engine temperature;
- Engine fuel level;
- Engine battery voltage;
- Generator frequency Hz
- Generator voltage V;
- Generator current A;
- Generator active power KW;
- The generator accumulates electrical energy Kwh;
- Cumulative number of starts of the unit;
- The cumulative number of motor actions of the unit;
- The operating time of the unit;
- Cumulative operating time of the unit;
- Unit maintenance countdown.

Alarm Protection:
- Over-speed
- Under-speed
- Low oil pressure
- High temperature
- External instant alarm
- Sensor open-circuit
- Over-frequency
- Under-frequency
- Power generation over-voltage
- Power generation undervoltage
- Over-current
- Low water level alarm
- Emergency stop
- Startup failure
- Shutdown failure
- Maintenance countdown
- Low fuel level warning
- Battery over-voltage warning
- Battery undervoltage warning

Specifications:
- Working voltage: DC8V to 18V continuous
- Power consumption: standby: 12V MAX 1W; Operating: 12V MAX 2W
- AC voltage input: one-phase two-wire 30VAC-450VAC (ph-N)
- Engine speed signal range: 50-9000Hz
- Maximum cumulative running time: 9999.9 hours (minimum storage time is 6 minutes)
- Fuel output: 1Amp DC + VE supply voltage output
- Motor output: 1Amp DC + VE supply voltage output
- Configurable relay 1: 1Amp DC + VE supply voltage output
- Configurable relay 2: 1Amp DC + VE supply voltage output
- Configurable relay 3: 1Amp DC + VE supply voltage output
- Configurable relay 4: 1Amp DC + VE supply voltage output
- Switching input: effective when the negative pole of the battery is connected
- Working conditions: -40 to 70°C
- Storage conditions: -40 to 85°C
- Protection class: IP54 (when the controller and control screen are equipped with a waterproof ring)
- Insulation level: AC2.2kV voltage is applied between the AC high-voltage terminal and the low-voltage terminal, and the leakage current within 1min is not more than 3mA
- Dimensions: 106 x 86 x 45mm/4.2 x 3.4 x 1.8"
- Hole spacing: 78 x 66mm/3.1 x 2.6"
- Weight: 0.25Kg/0.6Lb

Package Included:
- 1 x Set of Genset Controller

Note:
- Battery is not included.
