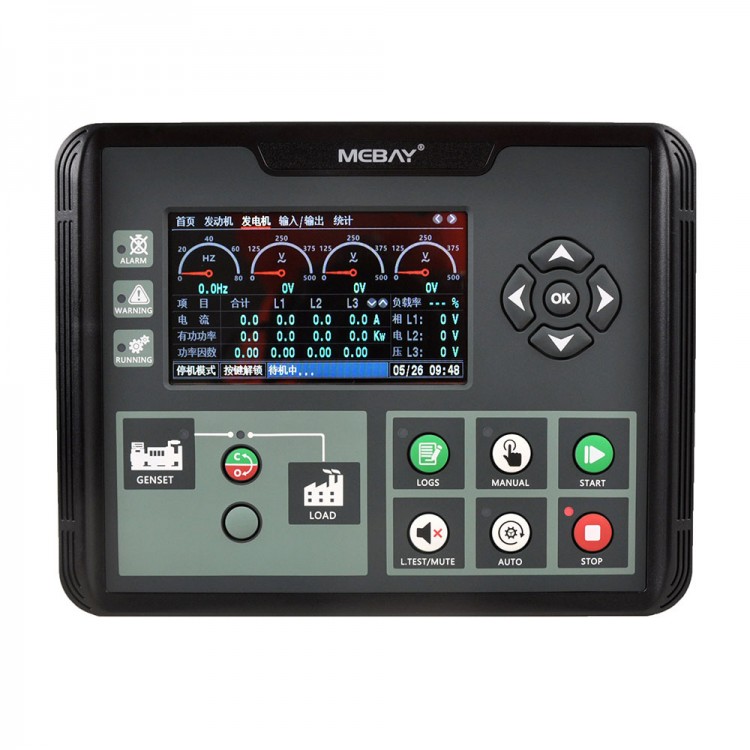

MEBAY DC70MR Ultra-Low Temperature Genset Controller Generator Controller with 4.3 Inch Color Screen

MEBAY DC70MR Ultra-Low Temperature Genset Controller Generator Controller with 4.3 Inch Color Screen

Description:
The genset controller is designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets. It supports parameter setting. It adopts 4.3 inch TFT color screen, 24-bit true color display and original UI design. Parameters can be displayed by analog pointers and numbers. The LCD screen can display multiple current fault states at the same time. When the generator set is not working properly, it can effectively implement the protection of shutdown.

The controller has built-in Chinese Simplified and English display interface. All parameters of the controller can be adjusted through the controller panel buttons, or adjusted and monitored through the USB port using a PC, RS485 interface or Ethernet interface. It can be widely used in various types of generator set automation systems.

Comparison:
- DC70MR: for single machine automation. Control the automatic start and stop of the generator set through the remote start signal;
- DC72MR: On the basis of DC70MR, the control function of mains monitoring and automatic switching of mains/generator (AMF) is added. It is suitable for a stand-alone automation system composed of one generator set of one-way mains.

Features:
- 32-bit high-performance MCU control;
- 4.3" high-resolution TFT display supports Chinese and English (switchable);
- Wide temperature (-40 to 70°C) operating range: suitable for harsh working environments;
- UI interface design of pointer instrument plus digital display;
- Using hard screen acrylic material, the screen is wear-resistant and scratch-resistant;
- Using silicone, the panel is waterproof, oil-proof and anti-ultraviolet, with good user experience and long service life;
- With USB interface: parameters can be set through the USB interface, enabling monitoring in real time. And parameters can be set when the controller is not connected to a power supply;
- With RS485 interface: it supports Modbus-RTU communication protocol;
- With Ethernet communication interface: it can be connected to the GSCLOUD generator cloud control platform to realize remote monitoring of the generator set status through the WEB platform and mobile APP; and the Ethernet interface supports Modbus-RTU protocol, and controller parameters can be set through a PC;
- With CAN communication interface and built-in J1939 protocol, it has matched more than 40 kinds of EFI engines;
- Acquisition and display of multiple engine and generator parameters;
- Displays the status of input and output ports;
- Built-in real-time clock, with shift planning and maintenance planning function: the monthly or weekly duty plan of the generator set can be arranged through the setting, and the monthly or weekly maintenance plan of the generator can be arranged for more flexible use of the generator set;
- Maintenance countdown function: you can set the maintenance timer or date;
- With black box function: the controller can save real-time relevant parameters of the genset when there are faults and alarms, making it convenient to find the cause of the faults;
- It has 6-way output, of which 4-way output can be configured. Each channel can choose more than 20 functions, and 3 sets of outputs are passive contacts;
- With 5-way configurable input. Each channel can choose from more than 20 functions;
- With 3-way sensor analog input, of which the oil pressure sensor is compatible with voltage, resistance and current signal inputs, and a variety of display units can be configured;
- Battery charging control: the charger can be controlled according to the battery voltage to effectively prevent battery overcharge and power loss;
- The sensor curve can be customized by panel buttons and PC software;
- Suitable for three-phase four-wire, three-phase three-wire, single-phase two-wire and two-phase three-wire (120V/240V) power supply 50/60HZ systems;
- Wide range of starting condition (speed, frequency and oil pressure) combinations;
- Control and protection function: realize automatic start/stop of generator set, ATS switching and perfect fault display and protection;
- With waterproof ring: the protection performance of the panel after installation reaches IP54;
- Modular design: all wiring is done via Euro terminals. Very easy and convenient to assemble, wire, repair and replace equipment.

Parameter Display:
- Engine speed;
- Engine oil pressure;
- Engine temperature;
- Engine fuel level;
- Engine battery voltage;
- Engine charging voltage;
- CAN related parameters;
- Cloud control related parameters (displayed in the status bar);
- Mains frequency (only for DC72MR);
- Mains phase voltage L-N (only for DC72MR);
- Mains wire voltage L-L (only for DC72MR);
- Generator three-phase phase voltage L-N;
- Generator three-phase line voltage L-L;
- Generator three-phase current A;
- Generator frequency Hz;
- Generator power factor COSφ;
- Generator active power KW;
- Generator apparent power KVA;
- Generator reactive power KVar;
- The load rate % of the generator this time;
- Generator cumulative average load ratio %;
- Electrical energy Kwh generated by the generator this time;
- Electrical energy Kwh accumulated by the generator;
- Cumulative number of starts of the genset;
- Cumulative number of motor actions of the genset;
- Cumulative power-on time of the module;
- Operating time of the genset;
- Cumulative operating time of the genset;
- Genset maintenance countdown;
- Input function display;
- Output function display;
- Current date and time.

Alarm Protection:
- Over-speed
- Under-speed
- Low oil pressure
- High temperature
- Low fuel level
- External instant alarm
- D+ open circuit
- The rotational speed signal is lost
- Sensor open circuit
- Over-frequency
- Under-frequency
- Power generation over-voltage
- Power generation undervoltage
- Over-current
- Current imbalance
- Over power
- Maintenance expiration
- Low water level alarm
- Emergency stop
- Startup failure
- Battery over-voltage
- Battery undervoltage
- The charger failed to charge
- Shutdown failure
- ECU shutdown alarm
- ECU communication failure

Specifications:
- Operating voltage: DC8V to 36V continuous
- Power consumption: Standby: MAX 2W at 24V; Operation: MAX 5W at 24V
- AC voltage input: one-phase two-wire 30VAC-276VAC (ph-N); Two-phase three-wire 30VAC-276VAC (ph-N); Three-phase four-wire 30VAC-276VAC(ph-N)
- Engine speed signal range: 50-10000Hz
- Maximum cumulative run time: 99999.9 hours (minimum save time is 6 minutes)
- Fuel output: 16Amp DC + VE supply voltage output
- Motor output: 16Amp DC + VE supply voltage output
- Configurable output 1: 5Amp DC + VE supply voltage output
- Configurable output 2: 5Amp AC250V passive contact one normally open and one normally closed output
- Configurable output 3: 5Amp AC250V passive contact normally open output
- Configurable output 4: 5Amp AC250V passive contact normally open output
- Excitation output: DC + VE supply voltage output
- Configurable input: valid when the negative terminal of the battery is connected
- USB port: Type-B
- RS485 interface: isolated, for Modbus-RTU protocol
- Ethernet interface: RJ45 10/100Mbps adaptive network interface. For cloud monitoring protocol and TCP/IP Modbus protocol
- LCD display: Under the condition of -40°C, the controller can be displayed normally within 10s after powering on; After 2 minutes after power-on, the dynamic display response speed is normal
- Working conditions: -40 to 70°C
- Storage conditions: -40 to 80 °C
- Protection class: IP54 (when the controller and control screen are equipped with waterproof rings)
- Insulation level: AC2.2kV voltage is applied between the AC high-voltage terminal and the low-voltage terminal, and the leakage current within 1min is not more than 3mA
- Dimensions: 210 x 160 x 50mm/8.3 x 6.3 x 2"
- Hole spacing: 186 x 142mm/7.3 x 5.6"
- Weight: 0.9Kg/2Lb

Package Included:
- 1 x Set of Genset Controller

Note:
- Battery is not included.
