Summary:
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.

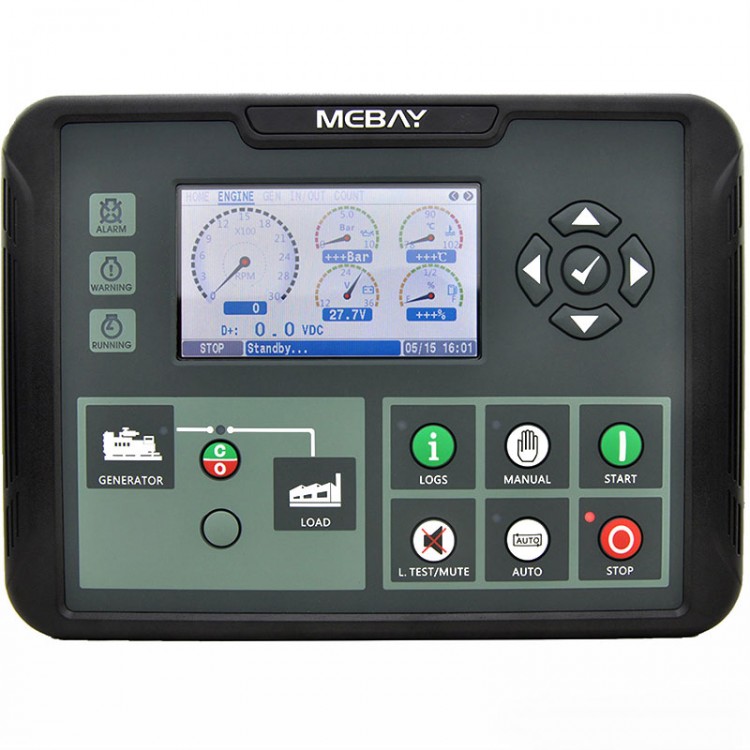

4.3" colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can't work smoothly.

There are Simplified Chinese, Traditional Chinese, English, Spanish, Russian interface options, more language can be set according to user's request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 (optional) or USB to adjust via PC. It can be widely applied for all kinds of automatic control system of gensets.

Model Introduction:
There are four Models under DC8xD MK3 series.
* DC80D MK3: used for single machine automation. Start/Stop through remote start signal.
* DC82D MK3: Based on DC80D MK3, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.
* DC80DR MK3: Based on DC80D MK3, it adds RS485 port.
* DC82DR MK3: Based on DC82D MK3, it adds RS485 port.

Main Features:
- Dual core 32bit high performance single chip microcomputer
- 4.3" TFT colorful big screen LCD, Available in 5 languages, user's language set if necessary.
- Indicator and number display through UI surface
- Acrylic material is adapted to protect the screen
- Silicone panels
- USB Port: parameters can be set even without power through USD port to monitor in real time.
- With RS485 communication port (optional), it can achieve "Three Remote" functions via MODBUS protocol
- Various kinds of parameters display
- Input/output function, status can be shown directly
- More categories of surface setting
- Real time clock inside
- Maintenance countdown function, can set maintenance timing or date
- The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is convenient to find the cause of the fault
- Totally 7 relay's output, among which 5 relay output can be self-configurable, each relay can be set as max 50 functions, besides, there are 2 groups as non-contact terminals
- 5 relays can be set as switch value input, and function configurable
- 3 sensor simulation input connectors, various kinds of units can be set
- Sensor can be self-defined by front face button or PC software
- Adapt to 3P4W, 1P2W, 2P3W (120V/240V, 50/60HZ)
- Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen
- Control Protection: Automatic Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection
- Standard water-proof rubber gasket. The waterproof level can reach IP54
- Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily

Parameters Display:
- Engine RPM
- Engine oil pressure
- Engine temperature
- Engine fuel level
- Engine battery voltage
- Charging voltage
- Mains Frequency (only for DC82D MK3)
- Mains phase voltage L-N (only for DC82D MK3)
- Mains phase voltage L-L (only for DC82D MK3)
- Generator 3 Phase voltage L-N
- Generator 3 Phase voltage L-L
- Generator phase
- Generator 3 phase current A
- Generator Frequency Hz
- Generator Power Factor COS φ
- Generator active power KW
- Generator apparent power KVA
- Generator reactive power K Var
- Real-time load rate %
- Current load rate%
- Average loading rate %
- Current consumption KWH
- Total consumption KWH
- Total Crank times
- Current running time
- Total running time
- Maintenance notice
- 5 switches input status display
- Output status display of 7 relays

Protection:
- Over speed
- Under speed
- Low oil pressure
- High temperature
- Low fuel level
- Low oil level
- External emergency alarm
- RPM Lost
- Sensor Open
- Over Frequency
- Under Frequency
- Over voltage
- Under voltage
- Over current
- Over power
- Maintenance expire
- Low water level alarm
- Emergency Stop
- Crank failure
- Stop Failure

Package Included:
- 1 x Generator Controller Panel

Note:
- Battery is not included.
