MEBAY FC70DR Fire Pump Controller Genset Controller Used for Fire Pump Units Driven by Diesel Engines

MEBAY FC70DR Fire Pump Controller Genset Controller Used for Fire Pump Units Driven by Diesel Engines

Summary:
This controller is used for fire pump units driven by diesel engines, which has the functions of parameter setting, start, stop, parameter monitoring, fault monitoring and protection.

4.3-inch LCD screen display with brand new UI design is used in this controller. The screen can display related parameters directly. The LCD screen can also display various faults at the same time. Once the unit does not run normally, it can effectively achieve protection.

There are Chinese/English interface options, and more language can be set according to user's request. All the parameters can be configured through the buttons on its front panel or use programmable interface by RS485 or USB to adjust via PC.

Main Features:
- Dual core 32bit high performance single chip microcomputer
- 4.3" LCD screen, Available in Chinese/English languages, user's language set if necessary
- Indicator and number display through UI surface
- Acrylic material is adapted to protect the screen
- Silicone panels, waterproof, oil-proof, UV-resistant, good operation feel and long service life
- USB Port: parameters can be set even without power through USD port to monitor in real time
- With RS485 communication port, can achieve "Three Remote" functions via MODBUS protocol
- Standard CAN communication port, built-in J1939 protocol
- Various kinds of parameters display
- Input/output function, status can be shown directly
- More categories of surface setting
- Real time clock inside: preset time operate and auto maintenance is available
- Genset working plan can be set as per week or month
- Three class protection countdown function, which can set the maintenance time or date
- The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is convenient to find the cause of the fault
- Totally 11 relay's output, among which 7 relay output can be self-configurable, each relay can be set as max 50 functions
- With 6 switches input, up to 40 functions optional
- 4 sensor simulation input connectors, 4 input types is configurable and various kinds of units can be set
- 2 voltage sampling points of battery packs and 1 voltage sampling points of battery charger
- 2 battery packs can be switched to start the unit
- Battery charging control function,which can protect the battery according to battery voltage status
- Sensor can be self-defined by front face button or PC software
- Various of crank conditions (RPM, External input and Oil Pressure) can be chosen
- Control Protection: Auto Start/Stop of unit, perfect failure display and protection
- Standard water-proof rubber gasket. The waterproof can reach IP54
- Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily

Parameters Display:
- Engine RPM
- Engine oil pressure
- Engine water temperature
- Engine fuel level
- Engine battery voltage 1
- Engine battery voltage 2
- Raw water temperature
- Charging voltage
- Total Crank times
- Current running time
- Total running time
- Maintenance notice
- 6 switches input status display
- Output status display of 11 relays

Protection:
- Over speed
- Under speed
- RPM Lost
- Low oil pressure
- High Engine water temperature
- Low Engine water temperature
- Low fuel level
- High raw water temperature
- Low raw water temperature
- External real-time alarm
- Sensor Open
- Primary/Secondary/Third maintenance expire
- ECU alarm failure
- ECU communication Failure
- Low water level alarm
- Crank failure
- Stop Failure
- Over battery voltage
- Under battery voltage

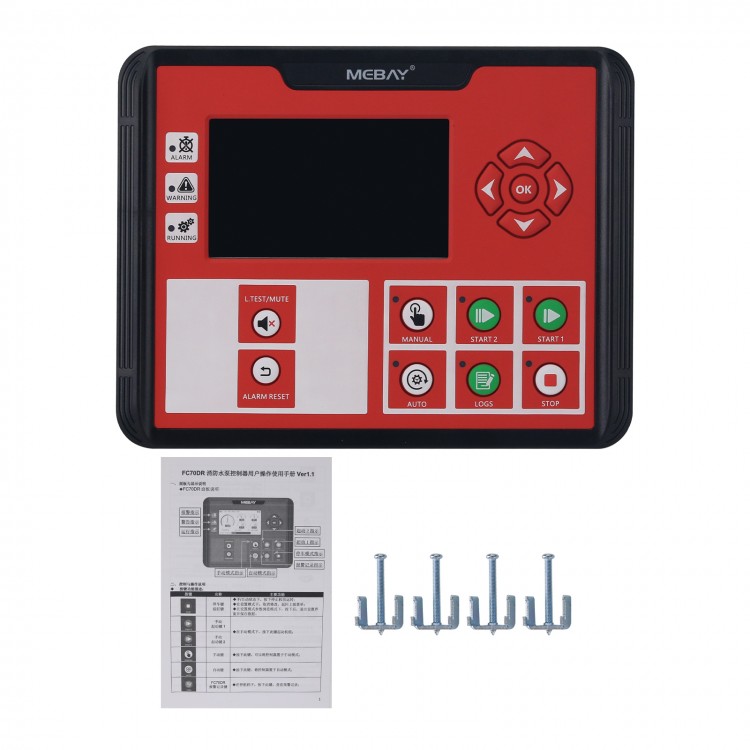

Package Included:
- 1 x Fire Pump Controller

Note:
- Battery is not included in the package.
