Description:

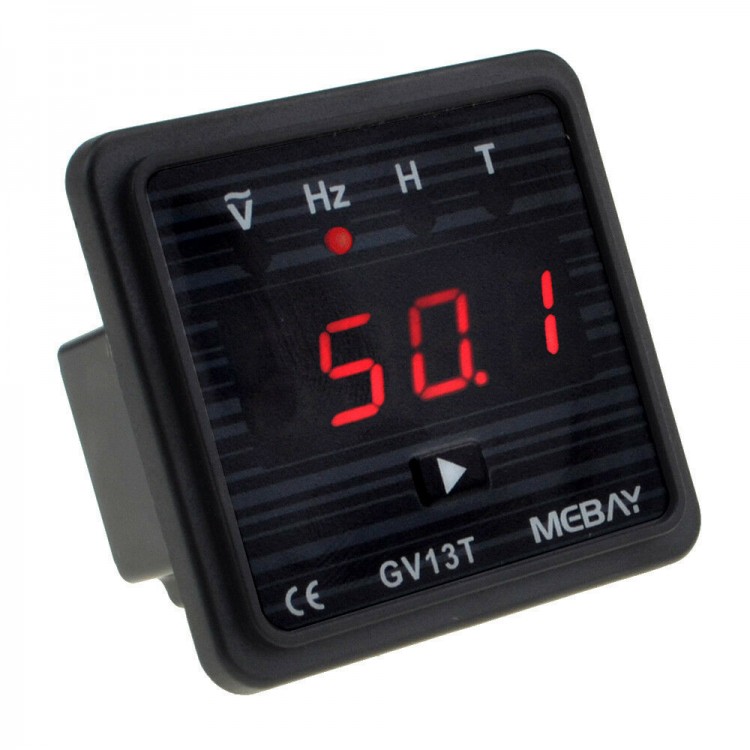

- GV13T is one light and low price-orientated module used for checking and demonstrating Voltage, Frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.
Features:
- Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;
- Results shown by 4-position digital LED tube
- Self-recycling of parameters
- with Page Turning Buttons
- Extra working power is not needed
Parameter demonstration
- Phase voltage (V)
- Frequency (Hz)
- Accumulating time(H)
- Current Time(T)
Specification:
- Working Power: AC 70~160V(110V system),AC 185~265V (220V) or AC 280~450V(380V system)
- Cumulative running time: 0-9999H
- Consuming Power:MAX 1W
- Recycling Time:Voltage:5s,Frequency:5s
- Accumulating time:2s
- Temperature:-20~~75
- Volume size (W * H * D): 58mm * 54mm * 41mm
- Mounting hole (W * H): 47mm * 37mm
- Weight:45g
Package include:
- 1 * GV13T Digital Voltmeter Frequency Hour Meter
