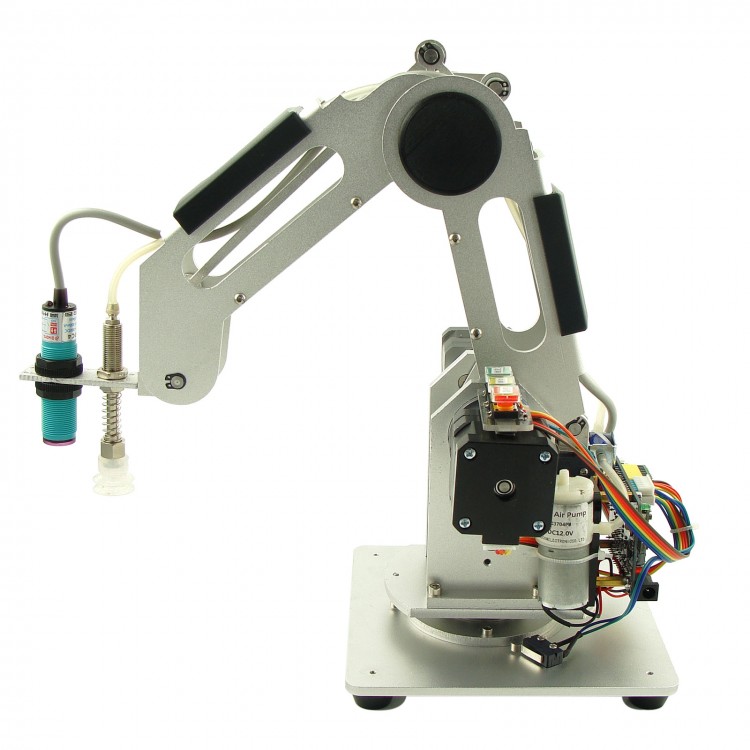

Mechanical Robot Arm 3 Axis Desktop Production Line Carry Aluminum Alloy 6061
Features:
- Including 3pcs 42 Slow Step motors
- This mechanical arm robot with 3 axis
- The main structure made of aluminum alloy 6061
- This product include control panel, infrared sensor, pneumatic sucker all the necessary parts
- Support simplified Chinese, traditional Chinese, English language interface
- Specially designed for handling of production line, load 500g
- Support control by your Android mobile phone via WiFi
Specifications:
- Deceleration Ratio: 1:10
- Maintaining Torque: 4.32 Nm
- Allowing Torque: 4.32 Nm
- Maximum Torque: 8.64 Nm
- Resolution: 0.18°
- Backspace: ≤15 arc minute
- Noise: ≤ 45 dB
- Efficiency: 96%
- Life: 20000 h
Package Included (Assembled):
- 1 x Mechanical Structure
- 3 x Slow Step Motors
- 1 x Control Panel
- 1 x Electric Valve
- 1 x Button
- 1 x Air Pump
- 1 x Suction Cup
- 1 x Infrared Sensor
- 1 x Power Adapter
- 1 x Power Cable
- 1 x Operating Manual
- 1 x Spare Parts
- 1 x Tool
