Tags: TS100 Tracked Tank
| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $165.40 | $162.03 | $156.97 | $150.21 | Contact US |
Finished 3D Printing Tracked Tank Chassis 6V 370 Reduction Motor Version Intelligent Tank Chassis Support DIY
$75.14
Assembled RC Tank Chassis Tracked Chassis DIY Climbing Car 3D Printing Load 5KG With Motors 370
$49.34
Assembled RC Tank Chassis Tracked Chassis DIY Climbing Car 3D Printing Load 3KG With Motors 280
$47.37
Product separameter:
- Chassis material:plastic
- Chassis width:40mm
- Weight:1.2KG
- Dimension:270*255*90mm (LxWxH)
- Motor type:37 motor (12V DC reduction motor;mode:37GB520)
Designed load:3~10kg (Depend mostly on motor parameter.The lower the rotation,the higher the torque.)
- Rotating angle 180.
- Rotating radius: 355mm
- The set height: 428mm (close clamper)
- Clamp front the max span:55mm
- Clamp the widest distance:98mm

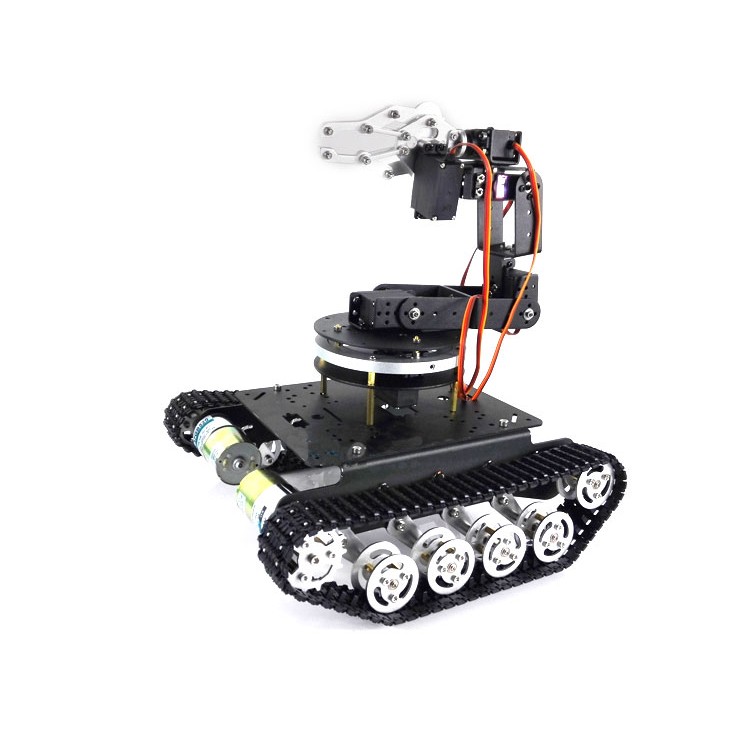

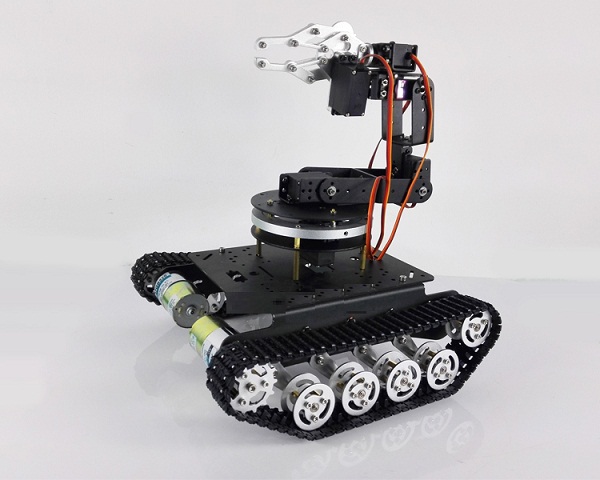

- Name:TS100 Shock Absorption Tank Car
- Surface:Sand-blasting Oxidation treatment
- Colour of the bottom:silver
Details:
- 2mm thick hard aluminium alloy,stable and durable.

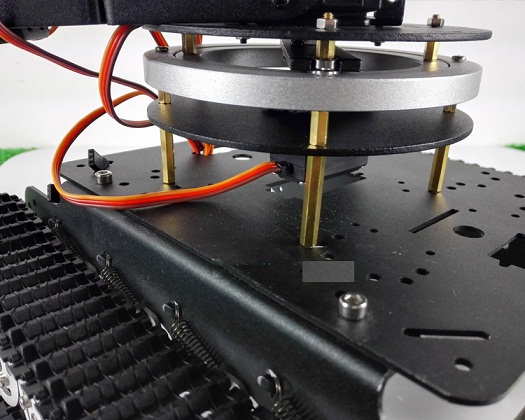

- Mechnical arm rotation base
- The mechnical arm is made up of a set of metal disk and 1pcs metal bearing.
Note:The control board and base plate is not included in gimbal mechnical arm.
Package List:

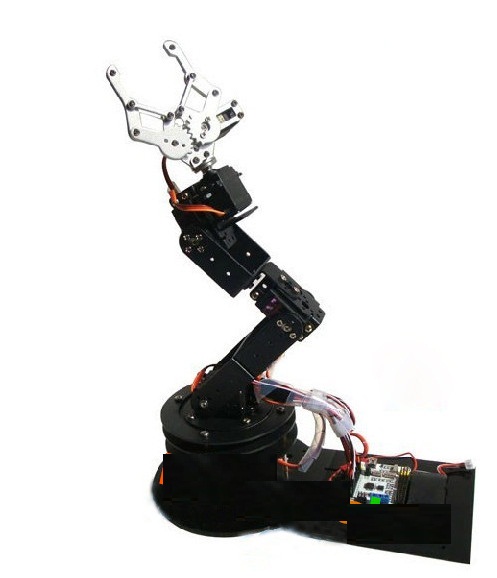

- 1 x Mechnical Arm 6 free Degree Gimbal

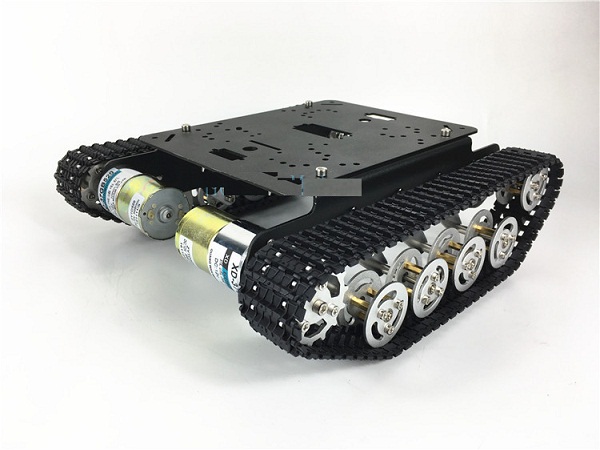

- 1 x Unassembled TS100 Tracked Shock Absorption Tank
- 1 x Metal Rotation Base
