Description:

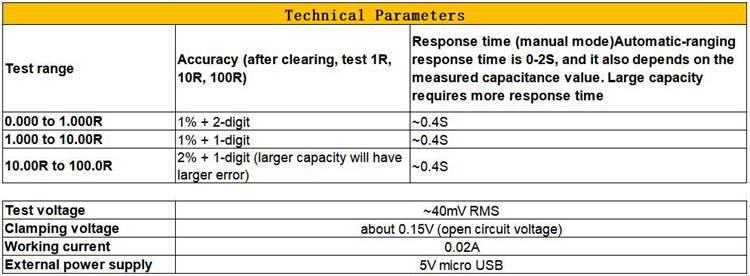

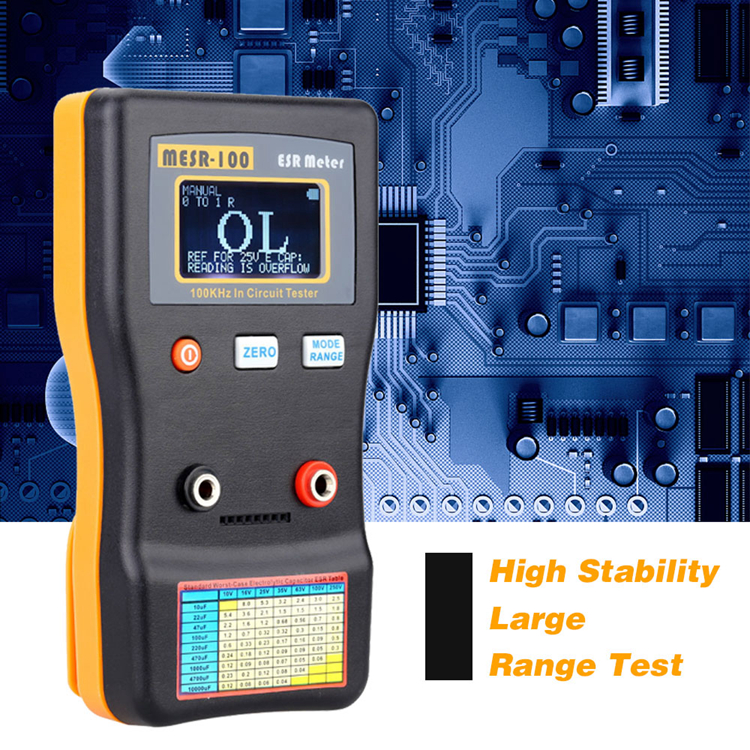

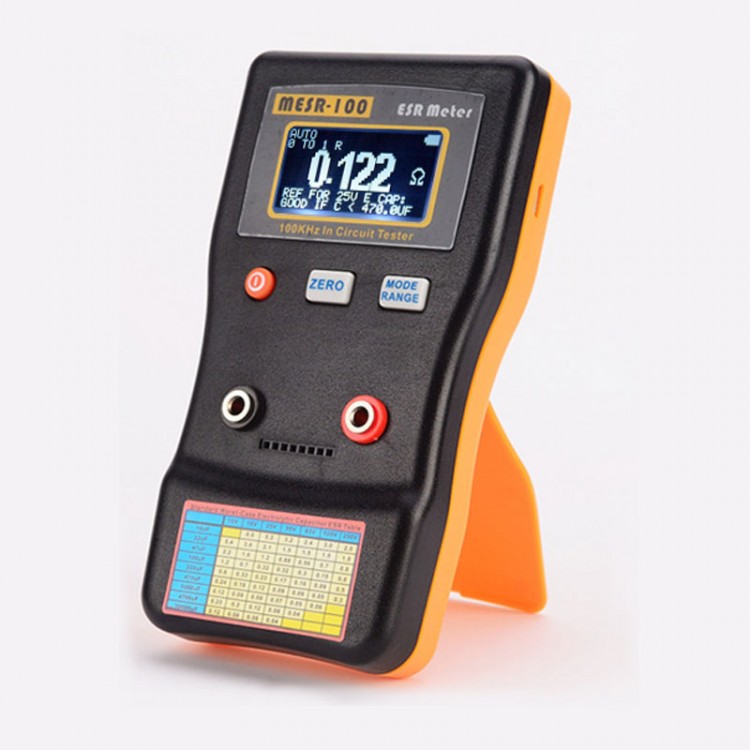

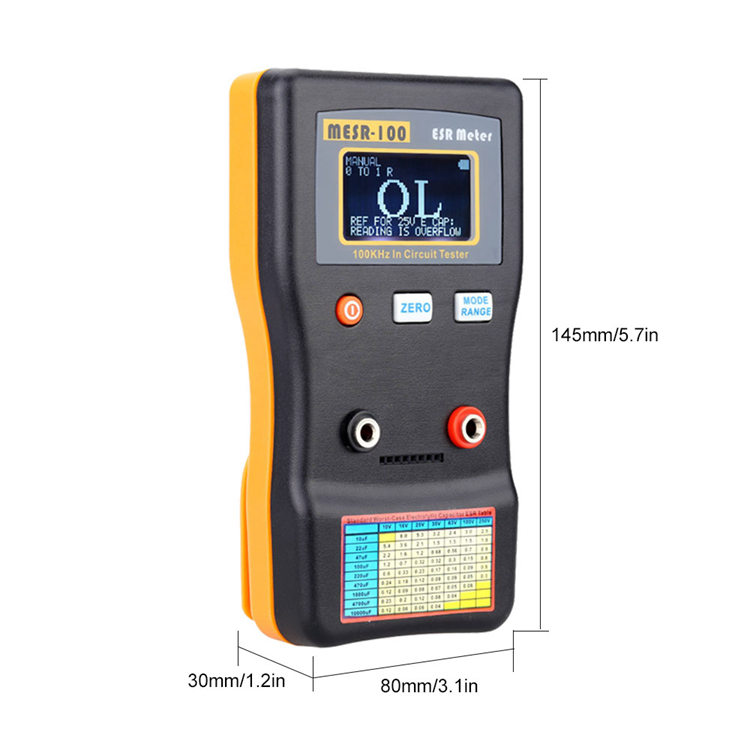

MESR-100 V2 is an automatic range meter to test capacitor's resistance (ESR) and small resistance. The measurement range is from 0.001 to 100.0R, with a high accuracy of 1%. Supports measurement in the line. High resolution 0.001. Large LCD display, support USB power supply, DC5V power supply.

Use a real 100KHz sine wave to measure the internal resistance (ESR) of a capacitor, which is equivalent to the test method of a capacitor manufacturer. In the market, there are some test methods that use instantaneous pulse technology to test, but the measured capacitance value changes, and sometimes the measured value is completely different from other manufacturer's value.

Features:
- Fully automatic range design. Manually switch to est ESR. With molded case, it is lightweight and easy to carry

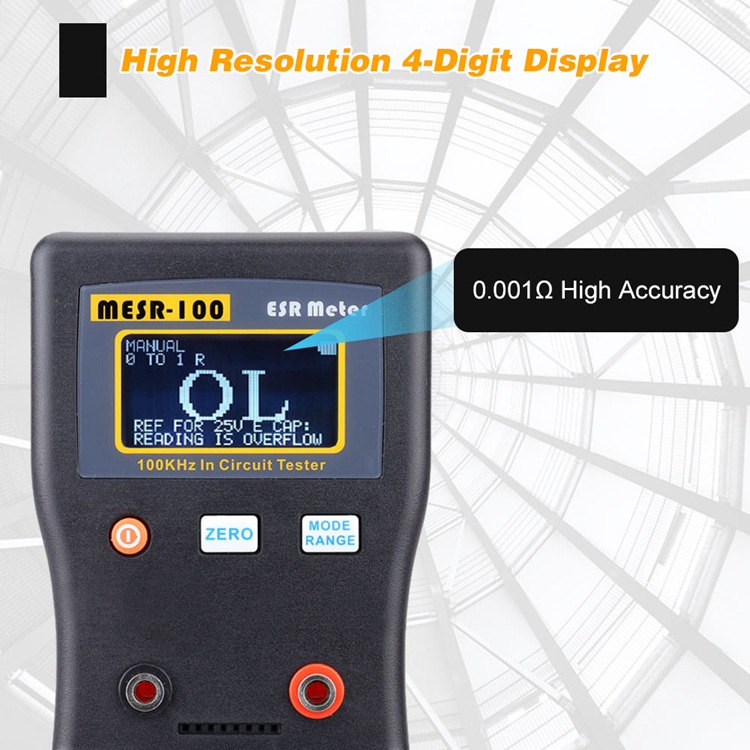

- High-resolution 4-digit display. High accuracy 1%, test small values, internal resistance 0.001Ω
- Online test circuit board: test lead can directly test the internal resistance of component capacitors on the circuit board without removing the component for testing

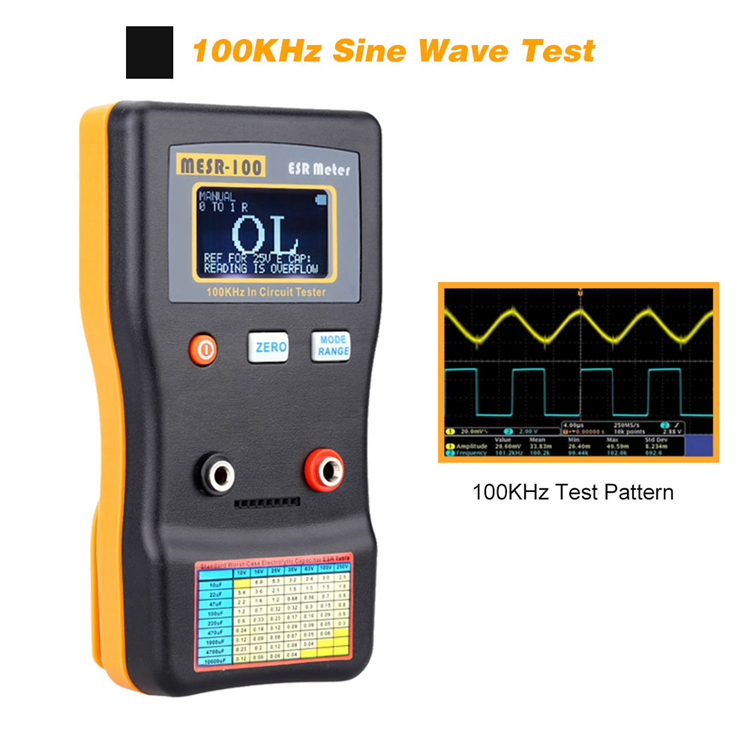

- 100KHz sine wave test for more accurate tests

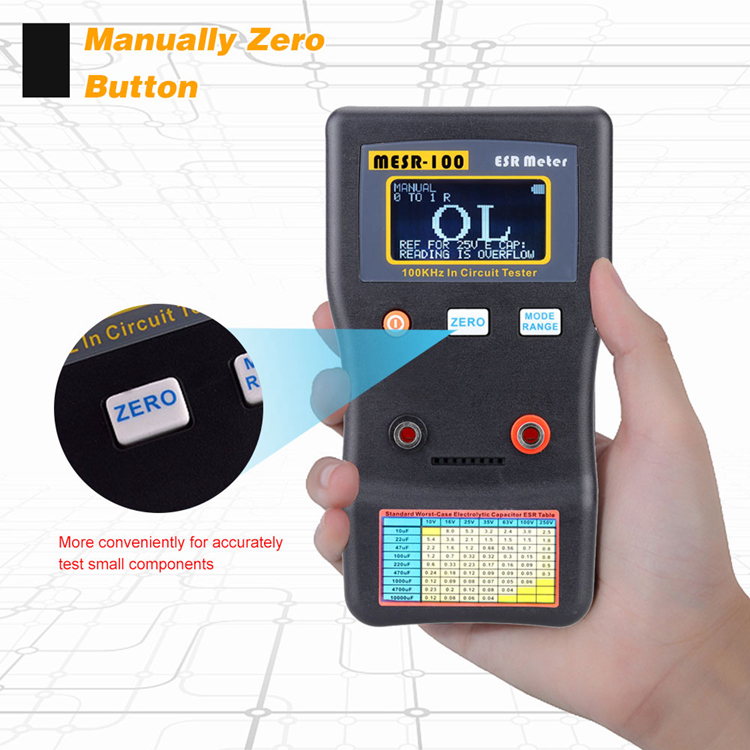

- ZERO button: Press this button to remove error caused by test clips, it is more convenient and accurate to test small value components
- Mini USB interface, DC 5V charging

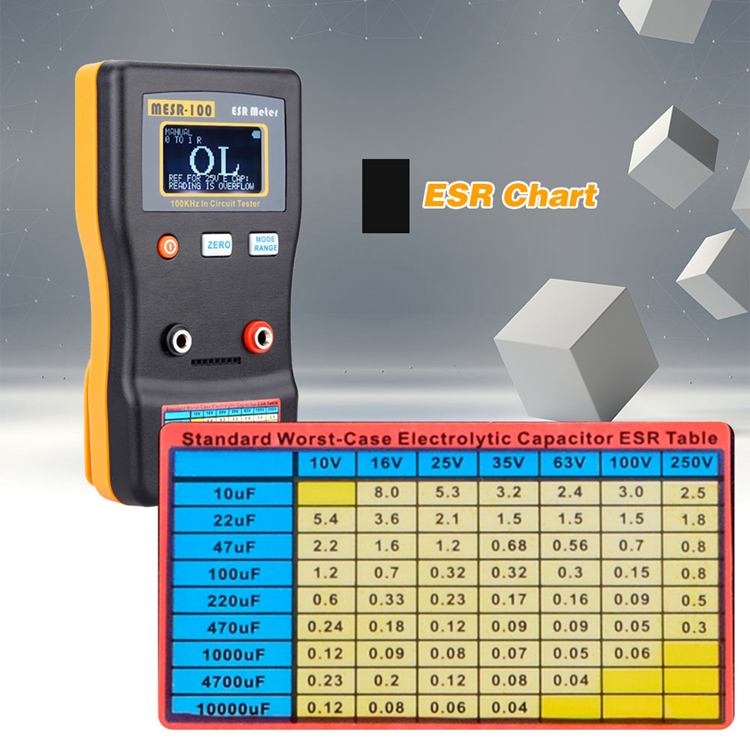

- Commonly used capacitor ESR table: Some capacitors are limited to the ESR value reference table, and comparison tests can be done outside the range. *The ESR table is for reference only. Different capacitor manufacturers have different ESR values. In order to better test the ESR of a good capacitor, a comparative test is required. Generally, the ESR value of a broken or aging capacitor is several times larger than that of a good capacitor.

More Details:

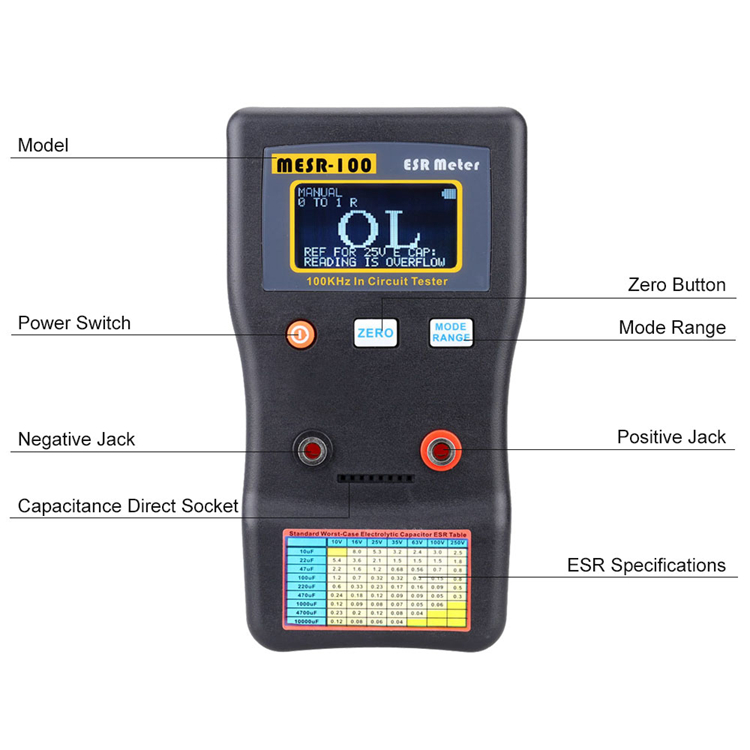

- Automatic range: Press and release RANGE button, the first line of the LCD will display "AUTO" (automatic), in the automatic mode, the meter will automatically select the appropriate detection range.
- Manual range: Press and release the RANGE key to manually select range 0-1R, 1-10R, 10-100R. The first line of the LCD will display MANUAL, and the second line will display 0-1R, 1-10R, 10- 100R.
- ZERO button: Short-circuit the test clip to eliminate the resistance of the test lead. Press and release ZERO button, the LCD screen displays ZERO, and wait for the zero to disappear. If you are using an array socket, you need a short pin to short-circuit and clear it.

Package Included:
- 1 x MESR-100 Main Unit
- 2 x Alligator Clips
- 1 x Product Certificate
- 1 x Chinese-English Manual

Note:
- It is powered by 2pcs 1.5V AA batteries which are not included.
- SMD test clip is optional. If it is needed, please contact us. Thank you!

FAQ:
Q1: MESR-100 measures the ESR value of capacitors. Can it measure capacitance?
A1: It is specially designed to measure the ESR value of a capacitor. It cannot measure capacitance!

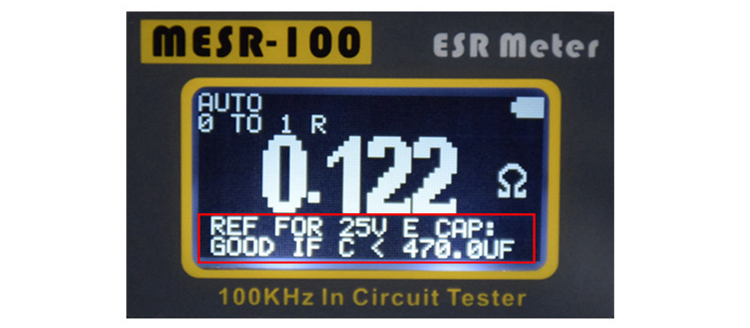

In the LED display screen shown below, "470.0UF" in the lower line of letters is displayed. This value is not the capacity value of the capacitor under test. This value is only a reference value, meaning that if the capacitor under test is less than 470.0UF, it shows that capacitance is good, and this "good" is just a relative concept!


Q2: Can this MESR-100 measure the ESR value of a capacitor online? In addition, do I need to discharge before measuring a capacitor?
A2: MESR-100 can measure the ESR value of capacitor online, or remove capacitor to test, both of which are possible, because the output voltage of its test leads is very small. Before measuring capacitors, especially for large voltage it needs to discharge capacitors.

Q3: How to understand ESR value? When is the ESR value good and when is the ESR value bad?
A3: Every manufacturer hopes that the ESR value of its capacitor is as small as possible, but in the production process, there will inevitably be some impurities or other factors that make a capacitor not a pure one. A small resistance is formed in the capacitor, which is what we call the internal resistance of the capacitor ESR. It is not that the larger the ESR, the worse our capacitors. There is no accurate standard for judging the ESR value of a capacitor, please make the judgment according to the actual situation!

Q4: Why is there interference in the value I measured? Sometimes the reading always changes?
A4: This meter is a very sophisticated ESR tester. In this case, we can:
1. Stay away from high-power electrical appliances or environmental with high electromagnetic interference;
2. When measuring, test lead is short-circuited and cleared, and when the reading is close to 0, perform measurement;
3. The shorter the test wire, the better;
4. Try to keep the test lead as stable as possible during measurement, and don't move it.
