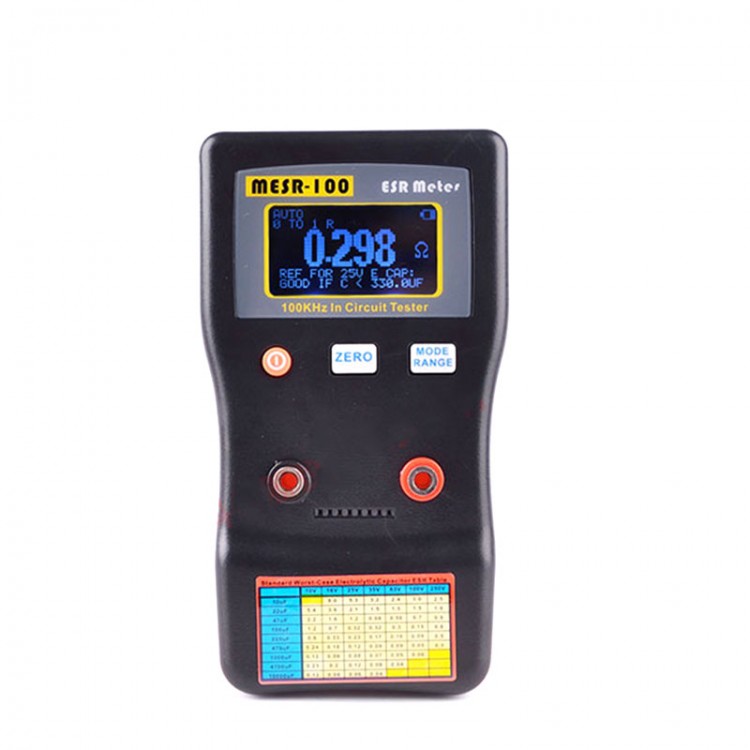

MESR100 ESR Capacitance Ohm Meter Professional Measuring Resistance Capacitor Circuit Tester

MESR100 ESR Capacitance Ohm Meter Professional Measuring Resistance Capacitor Circuit Tester

Description:
This MESR-100 V2 auto-ranging capacitor ESR and low Ohm meter measuring range from 0.001 to 100.0R, support in circuit testing. Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer.

Features:
- It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).
- The impedance become small, and we can then measure the true series resistor value.
- Using this theory, we can measure the capacitor is bad/ damaged or good in condition.
- Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.
- During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.
- Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.

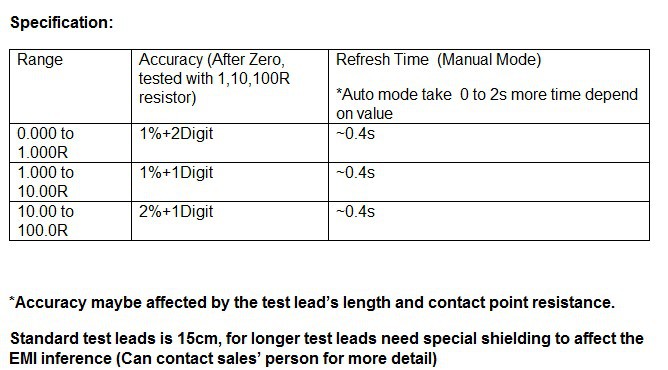

- Accuracy:  Up to 1% (detail on above table)
- Wide Measurement Range:  >1uF (for 0.1uF the error will be larger on equation 1/(2*pi*F*C) @ 100Khz )
- High Resolution: 4 digit, or 0.001Ohm @ 1 Ohm range
- Measuring voltage: <~40mV RMS (TESTING VOLTAGE)
- Clamping voltage: ~0.15V (open voltage)
- Battery 2X AA 1.5V battery
- External Power: 5V micro USB
- Operating current 0.02A
- Battery Life time: >80 Hours

Operating Introduction:
POWER ON
Press and hold the ON/ OFF circle orange button for 2 to 3 second to power on.
Press and release the ON/ OFF button to shut down meter.

AUTO/ MANUAL mode:
1. Auto Range:
- Press and release the RANGE button and at the first line of LCD will show “AUTO:"
- At auto mode meter will automatically select the best range to detect.
2. Manual Range:
- Scroll the manual range from 1R, 10R and 100R range by press and release the RANGE button
- In LCD will show MANUAL at first LCD line and show at second line: 0-1R, 1-10R and 10-100R.

1 Key Zero:
Short circuit the test leads’ terminal, cancelling the wire resistance.
Press and release the “ZERO" button, LCD shows “ZERO" and wait the zero disappear.
If you are using the meter array socket, you need to use a short pin to short circuit to set zero.

Backlight:
LCD backlight will on during power on

Auto Sleep:
Around 10 hours for not testing, it will shut down automatically to save power.

OVERFLOW or OL:
Display overflow when the value is out of range, you can check that you are zero correctly.

ESR TABLE:
It is for reference only, different manufacturer of capacitor has different ESR, better to test a good cap ESR and compare with what you are testing, usually bad cap with higher ESR few times larger than good one.

SOFTWARE ESR:
Put the 25V Electrolytic capacitor value to LCD, and compare,
GOOD if C < XXuF, means the capacitor maybe good condition if it is less than XXuF

PLASTIC STAND:
If you don't use the stand, press and push the lock position

Package List:
- 1 * Capacitance Meter
- 2 * Test Clips
- 1 * User Manual
