[Key Features]
-
Equipped with power control switch and reset switch, and it is convenient to start with one button.
-

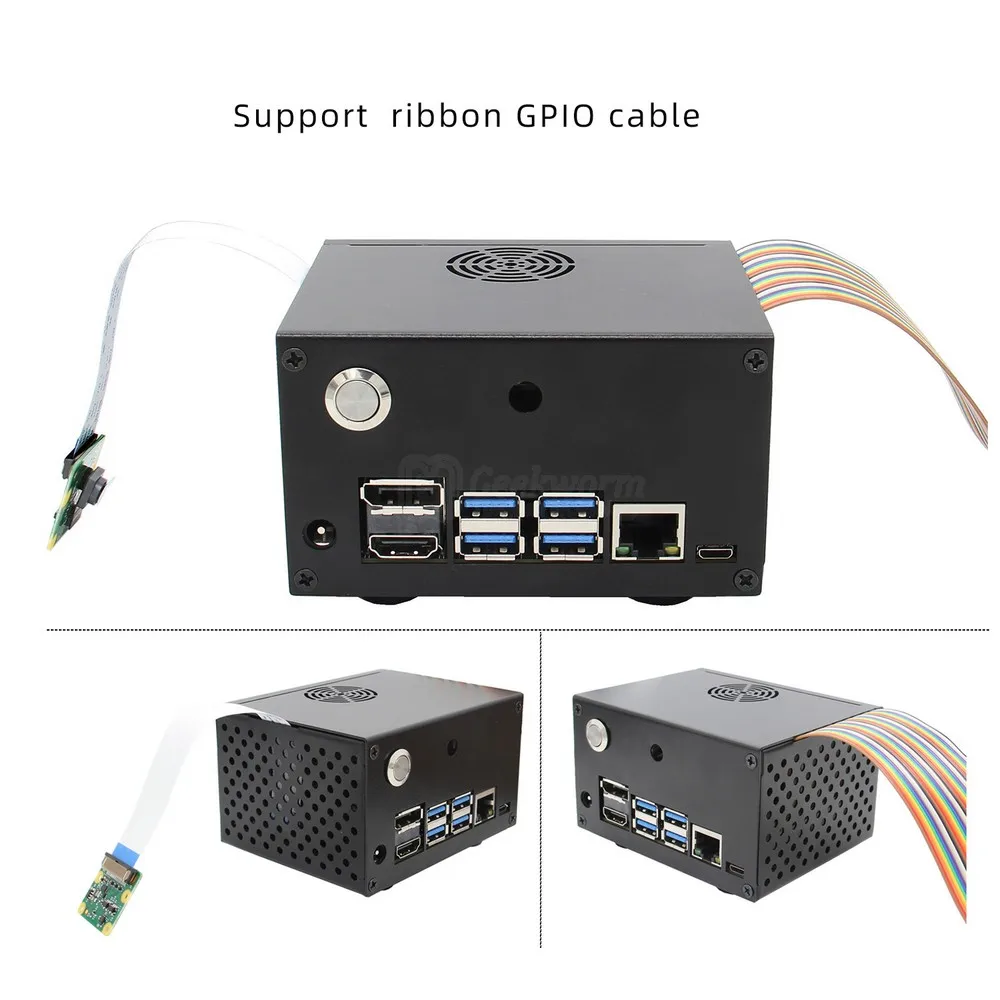

Equipped with camera bracket for raspberry pi official camera, can fix the camera on the top or side of the case as you like
-
The power switch has LED indicator.
-
The reset switch is placed on the back to prevent accidential touch.
-
Support to install a cooling fan, reserve 22mm high fan installation height, easy to install the official recommend fan.
-
The antenna hole is reserved to
faciliate the arrangement of the external antenna. (as the antenna in
the photo is not included if you need to use you have to buy it
yourself)
-
According to customer's feedback, add 2 holes to install antennas or camera.
[FAQ]
Q1:How to assemble this case?
A: Please read the following picture or refer to wiki: raspberrypiwiki.com/index.php/N100
Q2: Is it supported to install a fan?
A: Support for fan installation, 22mm high fan installation height reserved. Support Noctua NF-A4x20 5V PWM fan, we also send the screws to install the Noctua NF-A4x20 5V PWM fan , the screws is long enough, if you have any problem while install it, please contact us for help!

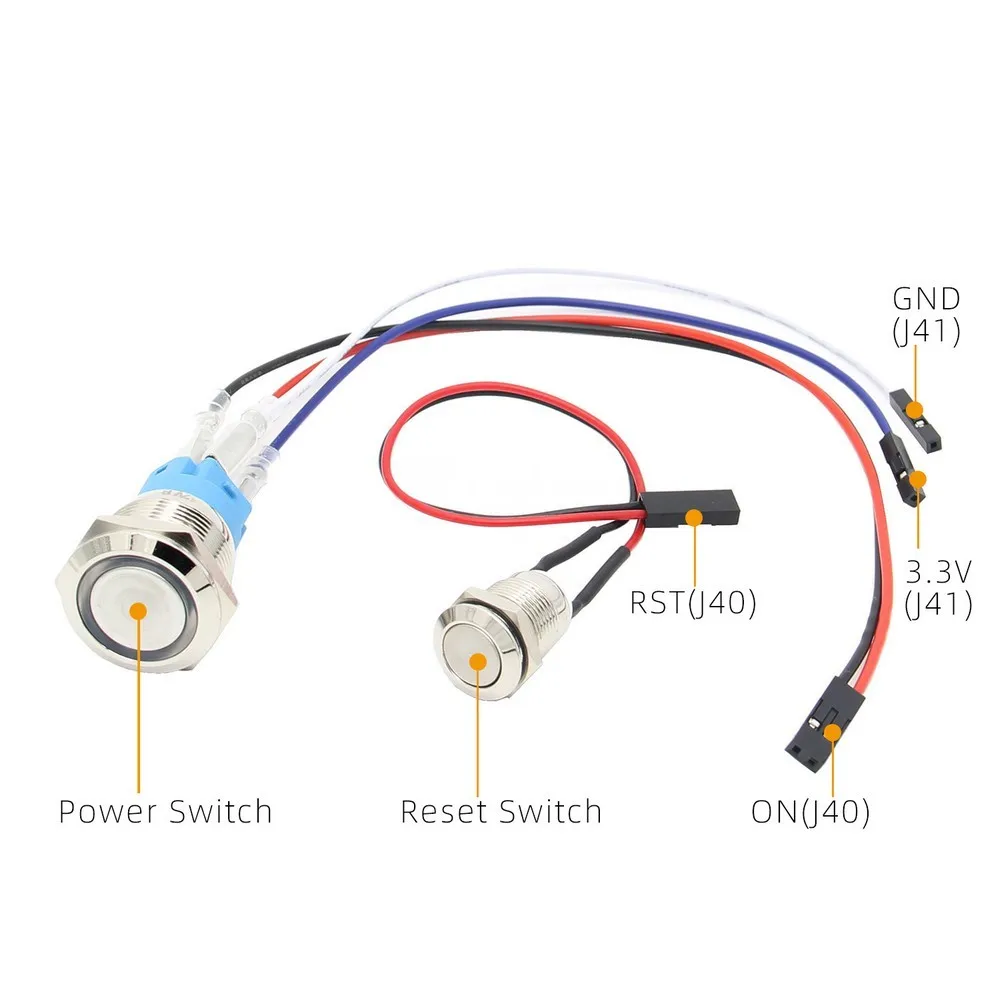

Q3: How to use the jumper cap?
A: Because this case has a power switch,
you need to disable the AUTO ON function first. Please insert the
jumper cap into the AUTO ON position of the J40 pin to disable the AUTO
ON function.
Q4: The fan on the jetson heatsink is not align the fan hole, will it influence the heat dissipation?
1/ The fan on the jetson nano heatsink is very close to the edge of the board, it will have any installation difficults if the fan hole is also very close to the edge.
2/ Don't worry about the heat dissipation, we have done the test, and also open many small heat dissipation holes on the side, which will have a good heat dissipation!!!
Q5: Why was the MICRO SD card slot cancelled?
A: N100-V9 is compatible with both A02
and B01 versions now. We must increase the distance between the JETSON
NANO motherboard and the front panel of the case to install the switch.
We found that even if we kept the TF card slot, we couldn’t insert the
TF card by hand or plastic tweezers, so we have to cancel this card
slot;
We hope that the official NVIDIA will
adjust the position of J50 in subsequent versions. For more questions,
please refer to the official forum link:
https://forums.developer.nvidia.com/t/stop-shipping-the-nvidia-jetson-nano-development-
kit-b01-j50-is-on-the-wrong-side/112066
[Packing List]

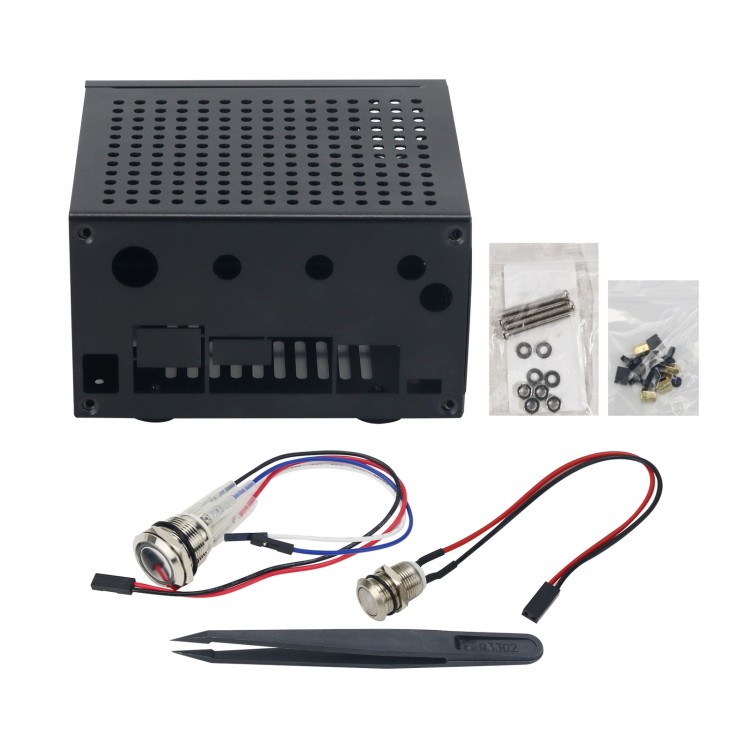

Bundle 1:
-
1 x Metal Case for NVIDIA Jetson Nano Board
-
1 x Camera Brasket (only spport raspberry pi official camera)
-
1 x Power Switch(Momentary switch, power on the board)
-
1 x Reset Switch (Momentary switch, reset the board)
-
2 x Jumper (Disabled the AUTO ON, and toggle the power supply between Micro USB and DC Jack)
-
1 x Screws Pack
-
1 x ABS Tweezers (It is useful when you install a fan only
Not include the Antenna.
[Antenna]
Antenna Glue Stick:
-
Frequency：2400-2500MHz 4900-5900MHz
-
Gain：6dbi± 0.7dbi
-
V.S.W.R.(Voltage Standing Wave Ratio)：≤1.8
-
Impedance：50Ω
-
Connector Type：SMA male with inner pin
-
Antenna length：about 19CM
-
Style: Foldable to 90 degree
SMA female external screw inner needle to 1 generation IPEX connector:
-
Frequency：0-6G
-
Impedance：50Ω
-
Connector Type：IPEX generation 1, high quality gold plated SMA
-
Cable Material：RF113（Wire diameter:1.1mm）
-
Cable Length：about 20CM
-
Cable Color：Black
