Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $49.81 | $48.80 | $47.27 | $45.24 | Contact US |

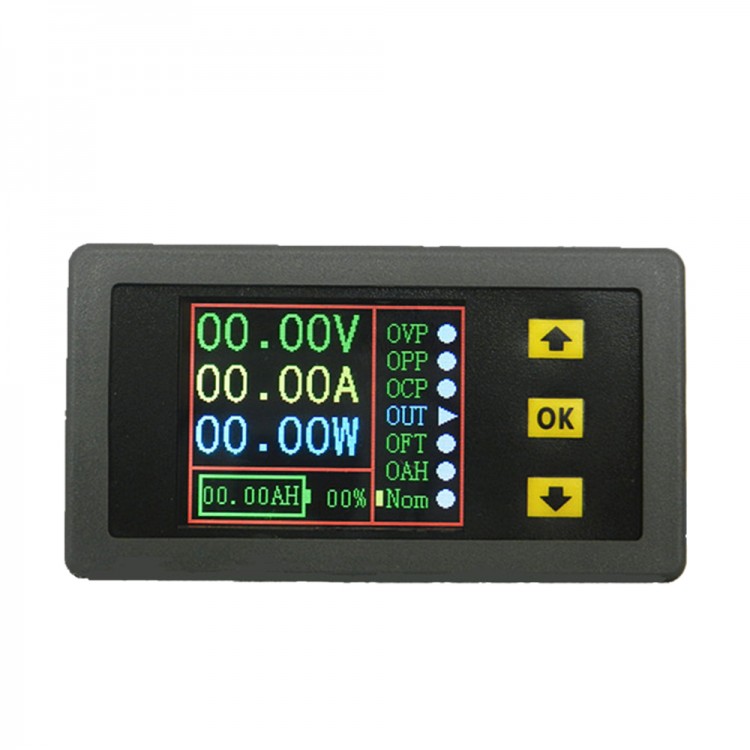

MHF120P Multifancutioal High Power LCD Wireless DC Voltage Meter Power Capacity Meter Multimeter
Description :
1. Weirless data transmission
2. Can show the voltage, current, chargong capacity, time and power at the same time.
3. With output off function keys, flexible on or off output.
4. Over voltage, over current, over power, over time, over charging protection and so on.
Specifications:
Input voltage:
- Self power supply: 10V-80V
- External power supply: 0V-120V
- Output current: 0-100A (MHF-120100P), 0-200A (MHF-120200P)
- Color liquid crystal display
Display resolution:
- Voltage: 0.01V
- Current: 0.01A
- Capacity: 0.01AH
- Time: 0.01H
Accuracy:
- Voltage: -+1%+2bytes
- Current: -+1%+5bytes
- Measuring speed: 5 times per second
- Communication distance: 10m
- OVP: 0.01V-80V
- OPP: 0.01W-9.99KW
- OCP: 0.01-100A
- OAH: 0.01AH-120AH
- OFT: 0.01h-99.9h
- Size: 79x43x52 (mm)
- Mounting Hole Size:76.5x39.2 (mm)
NOTE: The new meter table shows the power supply voltage is adjusted to 5-12V.
Package Included:
- 1 x LCD DC Voltage Power Capacity Meter
