MHP30 Mini Heating Station Preheating Station Constant Temperature No Power Adapter For Mobile Phone

MHP30 Mini Heating Station Preheating Station Constant Temperature No Power Adapter For Mobile Phone

Description:
This is an ultra-mini-sized intelligent constant temperature heating station, which eliminates redundancy, retains sufficient effective heating area, greatly saves energy consumption and heating time, and condenses the desktop large constant temperature heating station into a pocket volume. Supports PD power input, making the heating table no longer trapped on the desktop, and it has become a portable heating tool.

It is small and exquisite, in the shape of a square tower, and the total height is only 5.2cm (2 inches). The main body adopts a split design, and the control terminal and the heating element can be flexibly separated and replaced. The console is equipped with an OLED display and two physical buttons (on the back). The bottom is equipped with expandable supporting feet, which makes the whole body more stable and reliable when standing on a flat surface. The heating part of the heating body is made of brass plated with nano-ceramic coating, with a smooth surface and uniform heating. The stainless steel hollow bracket connects the heating part with the circuit board, and directly inserts it into the control end through the pin.

Inheriting the high-efficiency performance of MINIWARE heating products, it has excellent thermal performance. When used with a 65W PD power supply, it only takes 150 seconds to heat from room temperature (26°C) to 300°C. The control terminal has a built-in true color light, and the color of the light changes with the temperature rise and fall of the heating element. In addition to the upgradeable firmware function, it also has smart menus such as preset temperature, tilt protection, power wake-up, and automatic sleep. Users can set up or turn off the corresponding functions according to their needs.

Features:
- Mini size, exquisite and attractive;
- Split design, heating element and control end can be replaced separately;
- The shell is made of aluminum alloy and hollowed out stainless steel heat sink, with excellent workmanship;
- Built-in OLED display and true color light, the light color can change with temperature;
- One-key heating, temperature control and menu settings can be switched freely;
- The support feet can be deployed at the bottom, stable support and not easy to fall;
- The brass heating body is plated with nano-ceramic coating, which is smooth and durable, and heats evenly;
- The heating element adopts futuristic design stainless steel heat dissipation bracket, which has both artistic aesthetics and practicality;
- PD power supply mode, the power can reach 60W;
- It only takes 150 seconds to heat to 300℃ at room temperature (26℃) (65W PD power supply needed);
- Eliminate redundancy, save energy and reduce emissions, and be environmentally friendly;
- Multiple smart modes: preset temperature, tilt protection, power wake-up, automatic sleep, firmware upgrade;
- Uses: Portable take-out, thermostatic heating table that can be installed in the pocket, preheating, desoldering circuit boards, components, LED lamp beads, etc.

Product Parameters:
- Heating element model: BS30
- Heating area: 30mm*30mm
- Temperature range: 100-350℃
- Temperature stability: 3%
- Resistance to ground: <2Ω
- Power: 60W (maximum)
- Input: PD protocol
- Control end size: L43mm*W35mm*H31mm
- Heating element size: L31mm*W31mm*H28mm
- Weight (control terminal + heating element): 82g
- Multiple smart modes: preset temperature, tilt protection, power wake-up, automatic sleep, firmware upgrade

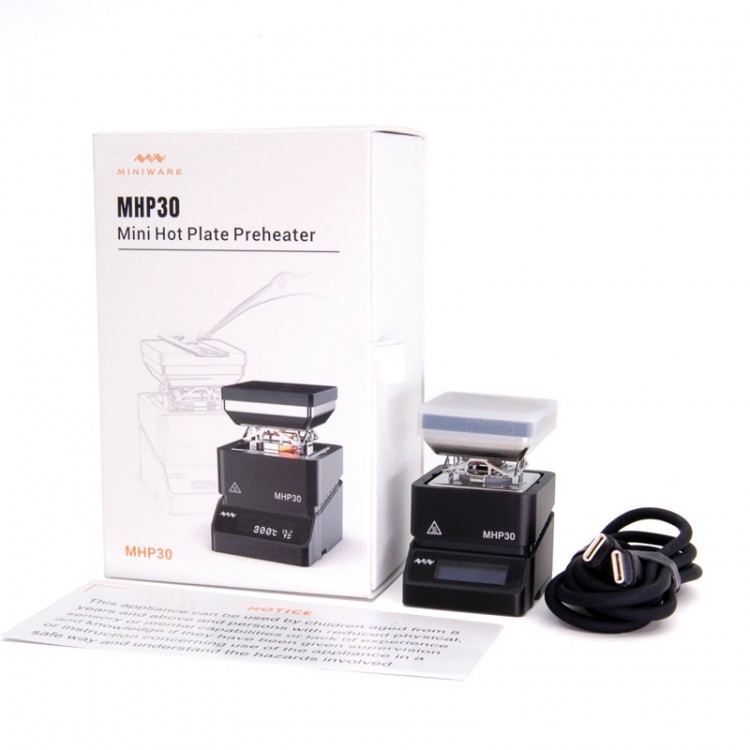

Package Included:
- 1 x MHP30 Controller
- 1 x Mini Heating Element BS30
- 1 x Type-C Data Cable
- 1 x Notice Paper
