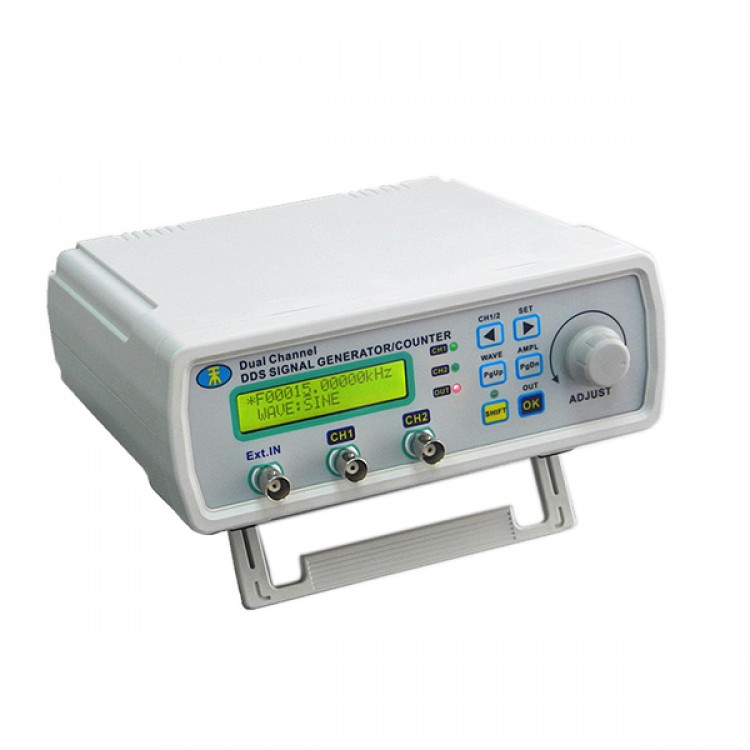

MHS-3200P Dual Channel Full Digital Control Function Signal Generator DDS Signal Source Frequency Meter
Parameters:
- Signal: DC 0-80KHz
- Output signal: 30mVp-p~30Vp-p
- Maximum output current: 1A
- Maximum output power: 2*15W
- Output short circuit protection: YES
- Output impedance: <= 1Ohm
- Output phrase: same as the signal end
- Distoration: <1%
- Output signal Flatness: -+1db
- Maximum frequency: 25Mhz
Frequency :
- Sine wave: MHS-3200P-06M: 0Hz-6Mhz
- Square wave: 0Hz-6Mhz
- Triangle wave: 0Hz-6Mhz
- Serration wave: 0Hz-6Mhz
- TTL signal wave: 0Hz-6Mhz
- Output modulation: Frequency scanning
- Sampling speed rato: 200MSa/s
- Wave resolution: 8bits
- Minimum frequency resolution: 10Mhz
- Frequency tolerance: -+5 x 0.000001
- Frequency stability: -+1 x 0.000001
- Amplitude range: 15mVp-p~ 15Vp-p (<12MHz);15mVp-p~ 8Vp-p (>12MHz)
- Output impedance: 50Ohm-+10%
- TTL: - Low level: <0.3V
- High level: 1V-7.5V
- Scanning time: 1-500s
- Counting range: 0-4294967295
- Storage number: 10
- Position: M0-M9
- Interface: USB to seriel port
- Communication speed rato: 57600bps
- Power : DC 12V
- Size: 180x190x71 (mm)
- Weight: 670g
Package Included:
- 1 x 12V 5A Power
- 1 x USB
- 2 x Clip line
- 1 x power extended board
- 1 x 4 channels TTL extended board
