MHS2300A Series CNC Dual-Channel Arbitrary Waveform Signal Generator 25MHz

MHS2300A Series CNC Dual-Channel Arbitrary Waveform Signal Generator 25MHz

Description:

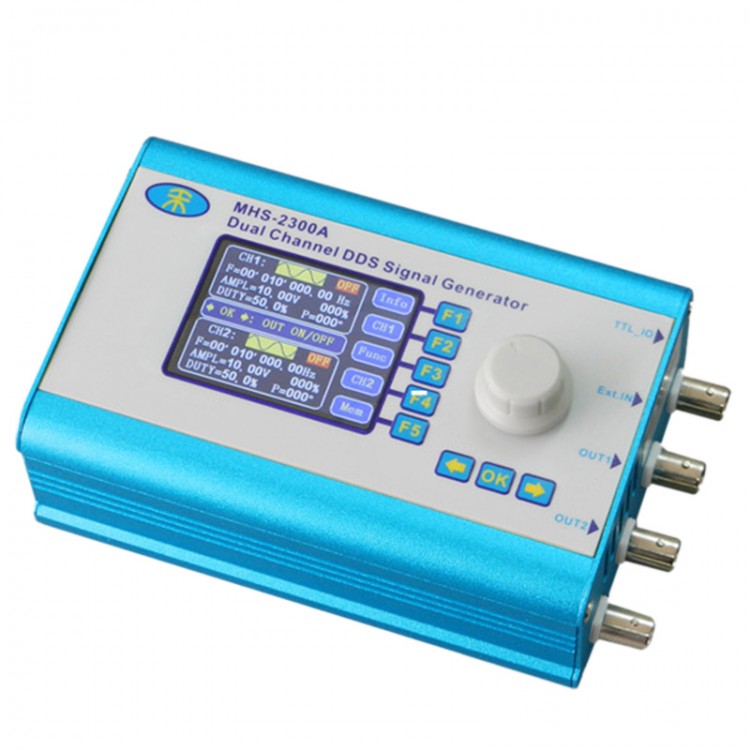

Large–scale CMOS integratedcircuits,high-speed 32-bit ARMmicroprocessor and surface mount technology were adopted, which improved the instrument’s immunity and longevity greatly. 2.4 inch TFT LCD screen with320*240 resolutions was able to display all the parameters of the two channels
and prompt the current key functions, avoid pressing buttons repeatedly. Theinstrument has applications in electronic engineering labs, production facilities,service shops, and schools.

Features:
1. Adopting direct digital synthesis (DDS) technology, FPGA design, andultra-low power consumption;
2. With portable aluminum alloyed shell, sole DC 5V powered adapter, easyto carry;
3.With a 2.4-inch TFT color LCD, variable function soft keys and a rotaryencoder, greatly enhances the usability of the instrument;
4 .Perfectly symmetrical two channels can be synchronized to work, andthe phase adjustable;
5 .Two or multi-machines can be achieved multi-machines synchronous byTTL_IO port;
6 .Various basic function waveforms of sine, triangle, square, saw tooth,and pulse (duty adjustable);
7. The minimum output signal frequency to 10?Hz;
8. With 100 sets (M00~M99) parameter storage locations, data of M00 canbe loaded as power on;
9 .With 15 sets arbitrary waveform storage locations for users self-defining,memory depth of each set is 1024*10 bits;
10. Amplitude up to 20Vp-p as frequency≦ 15MHz; amplitude up to15Vp-p as frequency>15MHz;
11. Minimum frequency resolution reaches 10μHz, minimum amplituderesolution to 10mV;
12 .With DC offset function (-100%~+100%);
13. With FSK function, hop frequency, carrier frequency and FSK rate canbe set freely;
14 . Three trigger modes, manual trigger, internal CH2 trigger, externaltrigger, an arbitrary burst of 1~1048575 can be outputted;
15 . If the setting is +100%, any CMOS digital signal of 0~10V can beoutputted;
16. Duty adjustment of pulse wave is accurate to 0.1%.
17 .The burst function can control the output pulses from 1 to 1048575.
18. Frequency sweep, amplitude sweep and duty sweep with an arbitrarystart and end point.
19. With functions of frequency measurement, period measurement,positive and negative pulse width measurement, duty cycle measurement and counting.
20 . All parameters can be calibrated by internal program.
21. Powerful communication functions and the completely opencommunication protocol, which makes it very simple to the secondarydevelopment.
22 .After in connection with the PC, the PC can be used to control theinstrument and arbitrary waveforms edited on the PC can be download to the
instrument to output.

Performance Testing:
1. CH1 channel 10kHz sine wave output, you can see that we have exactly the same frequency DDS signal generator and oscilloscope display, thefact is that we do a precise line calibration, the frequency output can be no less.
2. CH1 channel output 10KHZ square wave
3. CH1 channel output triangular wave
4. CH1 channel liter sawtooth, triangle wave that is the result of setting the duty cycle greater than 50%
5. CH1 channel descending sawtooth, triangle wave in this set is the result of less than 50% duty cycle
6. CH1 channel at 20% duty cycle square wave, square wave mode, you can freely set the duty cycle, resulting in variable duty cycle pulse,accurate to 0.1% regulation accuracy
7. CH1 channel to 80% duty cycle square wave
8. CH1 channel sine wave DC offset OFFSET = 50%, offset this DDS signal generator is calculated as a percentage of the magnitude of theadjustment range
9. CH1 channel OFFSET = 100% AMPL = 5V square wave, and this situation will occur in the horizontal waveform above all, that is, no negativewave, square wave modulation, the equivalent of a digital signal, and the digital signal amplitude can be adjusted, so the signal generator can output such as 1.2V, 1.5V, 1 .8 V, 2.5V, 3.3V, 5V, 10V (maximum 10V) CMOS any level.
10. CH1 channel sine pulse function, pulse number is 5, this feature allows the user to control the output of a limited number of bursts
11. CH1 channel frequency 100KHz sine wave

Package included:
1XMHS2300A Series CNC Dual-Channel Arbitrary Waveform Signal Generator 2MHz
