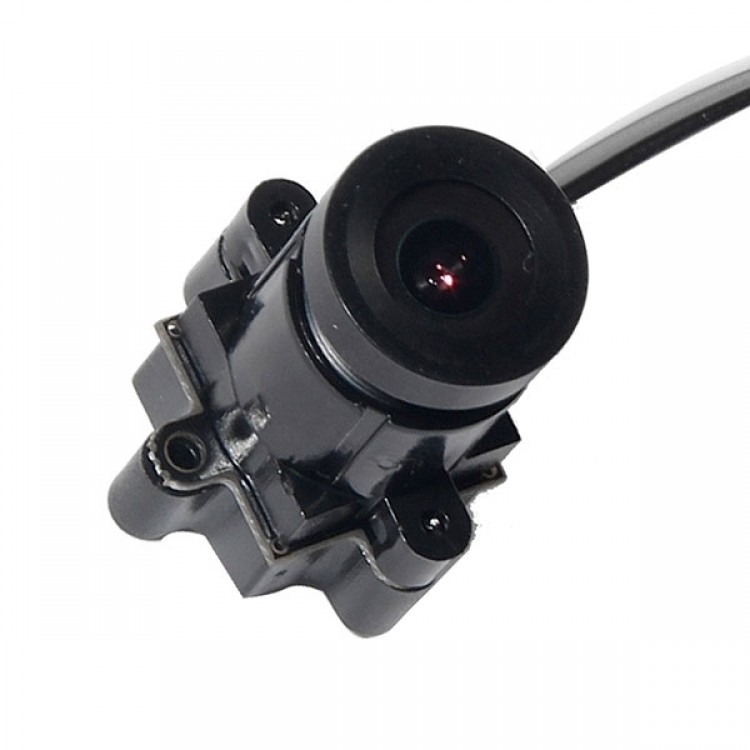

Micro Camera 8g PAL 120degree Wide Angle FPV aerial photo 2-5S CMOS+ DSP 520 TVL
Description:
- This camera adopt DC3.3V-24V wide range voltage supply.You could use 2s,3s,4s or 5s battery.
- Never worry about battery choice. 4th generation CMOS and DSP digital chip ensure high image clarity without distortion.
Specifications:
- Sensor: Single chip 1/4 CMOS
- System: NTSC & PAL （We just ship PAL system now)
- Resolution:720(H)x480(V);PAL:720(H)x576(V)
- Image signal process: Digital Signal Processing System
- Sensor diamension: 4.75mm(H)x3.55mm(V)
- Horizontal resolution: 520TV Lines
- Scanning System: 2:1 Interlace
- Sensitivity: 0.008Lux/F1.2
- Lens and view angle: 3.6mm F2.0 / 120degree
- S/N RATIO: 48dB
- Video Out: 1.0V p-p/75ohm
- Size: (L x W x H):29x14x14mm
- Weight: 8g
- Working voltage: 3.4-24V
Usage:
1. Could be applied to RC car,boat,rc helicopter,fixed-wing plane,quadcopter etc.
2. It can also be used to home monitor.You could put it on ceilling,cabinet,door etc.
