• Micro Diaphragm Pump DC12V 60W 5L/min Agriculture Electric Water Pump 0142HD-12-60

Micro Diaphragm Pump DC12V 60W 5L/min Agriculture Electric Water Pump 0142HD-12-60

Availability: In stock, usually dispatched in 1 business day

  • Price:$21.59
  • Price in reward points: 216 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.16 $20.73 $20.08 $19.22 Contact US
Quantity:

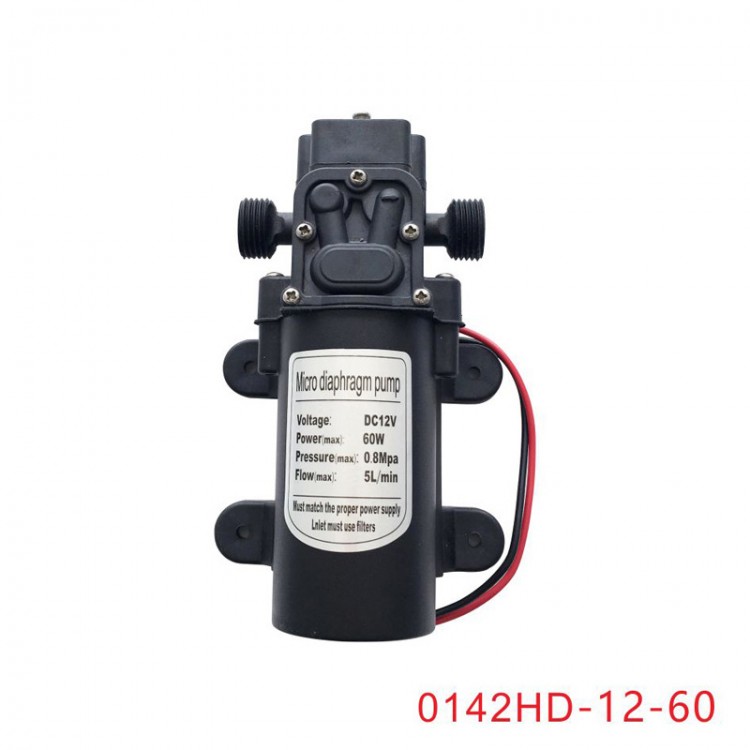

Micro Diaphragm Pump DC12V 60W 5L/min Agriculture Electric Water Pump 0142HD-12-60

Parameters:

- Voltage: DC 12V
- Power: Max. 60W
- Maximum Pressure: 0.8Mpa
- Working Pressure: 0.5Mpa
- Flow: Max. 5L/min
- Vertical Suction Distance: 1.5M
- Lift: 50M

- Model Number: 0142HD-12-60
- Material: Engineering Plastic
- Color: Black
- Pump Length: 157mm
- Hole Spacing: 77.5 x 55mm

Features of Reflux Pump:
- When the outlet is blocked, its motor keeps working. Its reflux valve will open and the water will recycle within the pump. It requires no special blowhole.
- The maximum pressure of the reflux pump is adjustable via a designed screw. The maximum pressure is increased by turning the screw clockwise. Rotate counterclockwise and the maximum pressure becomes smaller. The pressure has been set at the factory. Please do not adjust the pressure screw under ordinary conditions.
- D Type Inlet and Outlet: outer diameter 20.5mm and inner diameter 14mm; It can connect to hose in any size with a 1/2 internal thread connector.

Package Included:
- 1 x Micro Diaphragm Water Pump

Note: Only pump, other accessories are not included in this package.
