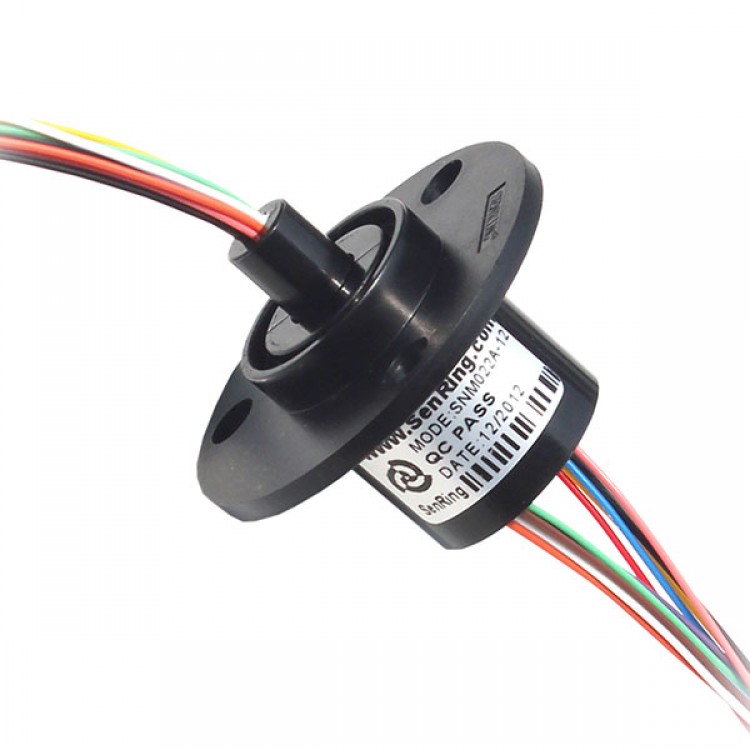

Micro Electronic Conductor Slipring High Speed 12 Core External Dia 22mm
Electrical technology parameters:
Rated voltage: 240VDC----240VAC
Current: standard per ring is 2A
Wire size: silver plated AWG28 insulation
Lead length: 250mm or according to customer requirements
Isolation strength: 500VAC @60Hz 60s
Insulation resistance: 1000MΩ/500VDC
Dynamic contact resistor variation: < 0.01
Mechanical technology index:
Working speed: 0-250rpm
Protection level: IP51
Working temperature: -40 ~ +80
Installation: external circle and equipment rotating center hole bonding
Maximum torsion: 0.3 g / M
Tensile strength: radial 2KG, axial 0.5KG
Working life: 6 more than (depending on the speed and working environment)
Contact material: gold - Gold
