MicroPhase A7-Lite-35T FPGA Development Board Core Board Onboard USB-JTAG for Xilinx Artix 7

Specification:
- Model: A7-Lite-35T
- Main chip: XC7A35T-2FGG4841
- Logic unit: 33280
- DSP: 90
- Block RAM: 1800Kb
- DDR3: 4Gbit, 16Bit, 800Mbps
- USB-JTAG: onboard USB JTAG circuit, it can download programs and simulations online without extra downloader
- QSPI Flash: 128Mbit, program storage for configuring FPGA
- HDMI: one channel HDMI to send (1080P at 60Hz), which can also be configured as HDMI to receive (720P at 60Hz)
- Ethernet: one channel 10/100/1000 adaptive Ethernet. Can be used for network communication and related applications
- EEPROM: 32Kbit I2C EEPROM
- SD Card: one channel Micro SD card socket, support SD mode and SPI mode
- USB-UART: one channel USB UART interface for communication between FPGA and PC
- Clock: 50M
- Button/LEDs: 3-channel user button, 4 LEDs; 2 x User LED, 1 x FPGA configuration status LED, 1 x power indicator LED
- Expansion: 2-channel 50Pin 2.54 space expansion port, 88 x IO, 44 x IO voltage 3.3V, 44 IOs voltage adjustable
- Board size: 80 x 56mm

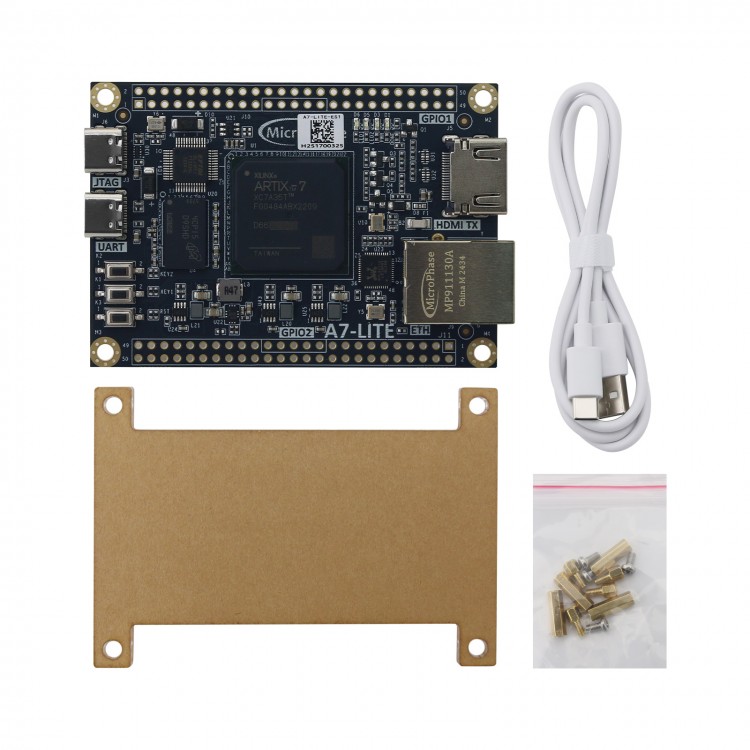

Package Included:
- 1 x FPGA Development Board
- 1 x Type-C Data Cable
- 1 x Protective Acrylic Board
