MicroPhase ANTSDR E200-9361 70M~6GHz Software Defined Radio SDR (AD9361) w/ Shell for Openwifi

MicroPhase ANTSDR E200-9361 70M~6GHz Software Defined Radio SDR (AD9361) w/ Shell for Openwifi

Features:
ANTSDR E200 SDR
* The portable software defined radio is intended for professional radio applications. It supports on-site host-less operation.
* Flexible and easy to use: It supports for Pluto drivers and more powerful and professional UHD.
* Powerful performance: Excellent RF performance and stability.
* Specialized applications: Successful examples of professional applications for a wide range of industries.

Small size and cost-effective
* Shell size: 86.75mm*56mm*23.4mm. As a result, it is ideal for applications with small form factors, such as handheld devices. In addition, it offers a very competitive price.

More professional, more user verification and feedback
* After several iterations of the software and hardware of the ANTSDR E series products, the E200 has stronger transmit power, better receiving sensitivity, and lower phase noise and noise floor.

It breaks through the bandwidth bottleneck of Pluto and expands more application possibilities
* Original Pluto has a bandwidth sampling rate of only 5 MSPS. However, the E200 easily breaks through Pluto's bandwidth bottleneck and can be increased by 5 times up to 25MSPS, which is smooth and stutter-free.

Supports more community projects and more software
* ANTSDR has been included in the list of support boards by many official communities, such as for Openwifi, DragonOS, Open5G-PHY, srsRAN, SigDigger and STASAGEN.

Abundant industrial application cases
* ANTSDR has accumulated a wealth of successful application cases in the field of radio applications, including spectrum monitoring, drones, GPS, radio analysis, etc.

Specifications (E200-9361):
* RFIC:
 ·For ADI AD9361, 2T2R, 2X2 MIMO
 ·Frequency: 70M~6G (A9361) and up to 56M instantaneous bandwidth (AD9361)
* Baseband processing: ZYNQ 7020, 512M GBYTE DDR3 and RAM256M QSPI
* Interface: RJ45 GIGA ETH, one SD card slot, USB TYPE-C CONSEL, and GPIO expansion
* Synchronous: External 10M or PPS input
* Clock: VCTCXO with an initial accuracy of 0.5ppm. The clock is dynamically adjusted by a digital PLL with an accuracy of better than +/-5ppb
* API: For UHD, ADI IIO (preinstalled), C/C++, and PYTHON
* Shell size: 86.75mm*56mm*23.4mm
* Power supply: USB TYPE-C power supply
* Transmit power: 10dBm (depending on frequency)
* ADC: 12bit 61.44MS/s
* DAC: 12bit 61.44MS/s
* RX noise figure: <8dB
* Power consumption: 2~6W
* Transmission IQ bandwidth: 10 MSPS (for ADI IIO); 25MSPS (for UHD)
* Number of channels: SMA: 1T1R; IPEX: 1T1R
* Host interface: 1G ETH
* GPS: None
* External synchronized clock: 10M/PPS
* Product features: Extremely small and cost-effective

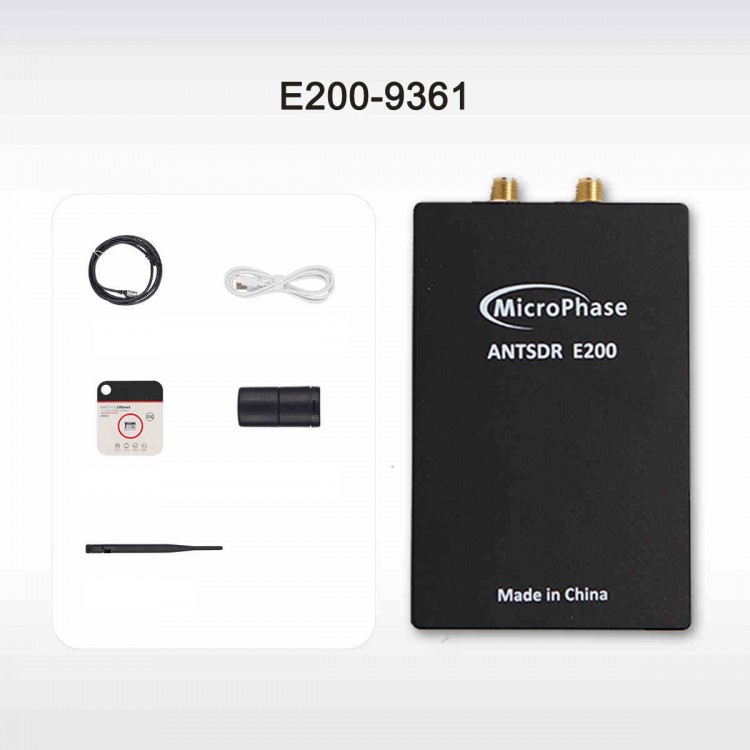

Package Included:
* 1 x ANTSDR E200 SDR
* 1 x Network cable
* 1 x USB data cable
* 1 x 32G memory card
* 1 x Card reader
* 2 x Rubber antennas

Packaging Details:
* Weight: 0.8kg
