Description:
When you are ready to use devices for ADI Pluto or ZED+FMCOMMS2/3/4 for research or development, then this ANTSDR E310 may be more suitable for you, in terms of performance, price, interface expandability, and flexibility. Positioned for product applications, E310 can be applied to your product directly.

Inspired by ADI Pluto, the design refers to Pluto, and the firmware is transplanted to support the reference design of Pluto. At the same time, we have made the following improvements:

Ready to use. Perfect development rig for SDR developers.

Referring to the design for ADI Pluto, and the firmware is transplanted to support the reference design of Pluto. At the same time, we have made the following improvements:
1. The chip (for ZYNQ) adopts XC7Z020, which has larger logic capacity and supports larger logic design;
2. The memory adopts two pieces of 512M DDR3, with a total of 1GByte, a larger capacity.
3. Support Gigabit Ethernet port and support ZED+FMCOMS3 reference design transplant;
4. Support higher precision clock, 0.5ppm TCXO, provide higher precision VCTCXO option;
5. Adopt 2R2T, support MIMO;
6. The RF pre-stage adopts sub-band processing, and the attenuation of each frequency band is lower;
7. Provide USB-JTAG, more convenient and flexible development.

We hope this product will facilitate your radio development journey.

Source Code:
https://github.com/MicroPhase/antsdr-fw

Specifications:
RF:
- RF IC: AD9361/AD9363 (optional)
- Frequency Range: 70MHz to 6GHz (AD9361) or 325MHz to 3.8GHz (AD9363)
- RF Channels: 2R2T, 2x2 MIMO
- Signal bandwidth: 200k~56MHz (AD9361) or 200k~20MHz (AD9363)

Interfaces:
- Gigabit Ethernet
- USB2.0 OTG
- USB-UART and for SD Card
- Integrated USB-JTAG
- Expansion port supports GPS clock synchronization input

Data Processing Unit:
- SoC for ZYNQ: XC7Z020CLG400
- Dual-core for Cortex-A9, main frequency 766MHz
- 85k logic unit
- DDR3 RAM: 1GByte
- QSPI Flash: 32MB

Clock, Dimensions and Power:
- TCXO: 0.5ppm
- Support higher precision VCTCXO clock customization
- 103 x 66mm/4.1 x 2.6"
- USB powered

Software Support:
- For GNURadio
- For MATLAB SIMULINK
- For SDRangel
- For SDR#
- For Gqrx SDR
- For Pothosware

Applications:
- Drone remote sensing
- Radar detection
- Front-end digitization
- Wifi, Lora, and Zigbee
- Wireless base station
- Digital broadcasting

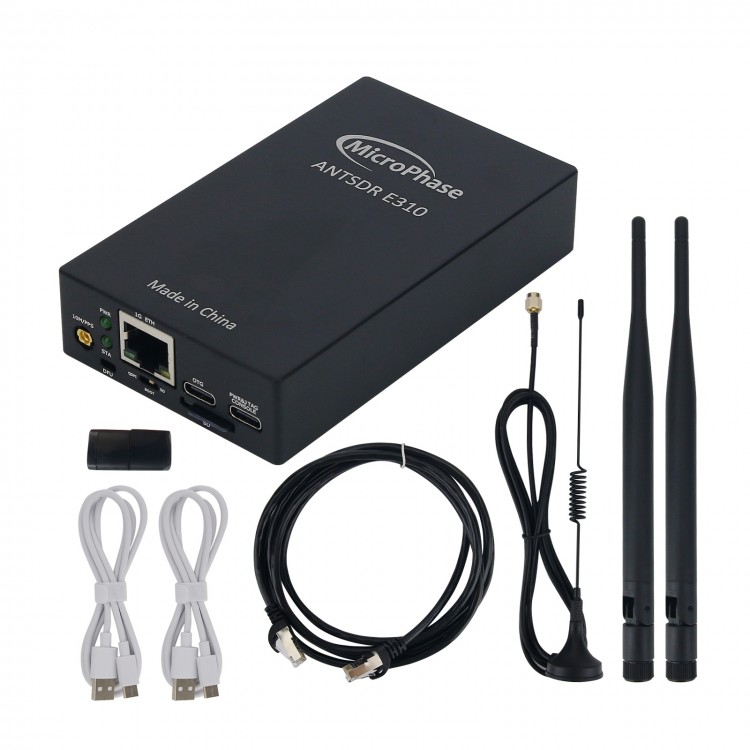

Package Included:
- 1 x ANTSDR E310
- 1 x Shell
- 3 x USB Data Cables
- 1 x 16GB Micro SD Card
- 1 x Card Reader
- 1 x Sucker Antenna
- 1 x Rubber Antenna

Note:
- It is assembled.
