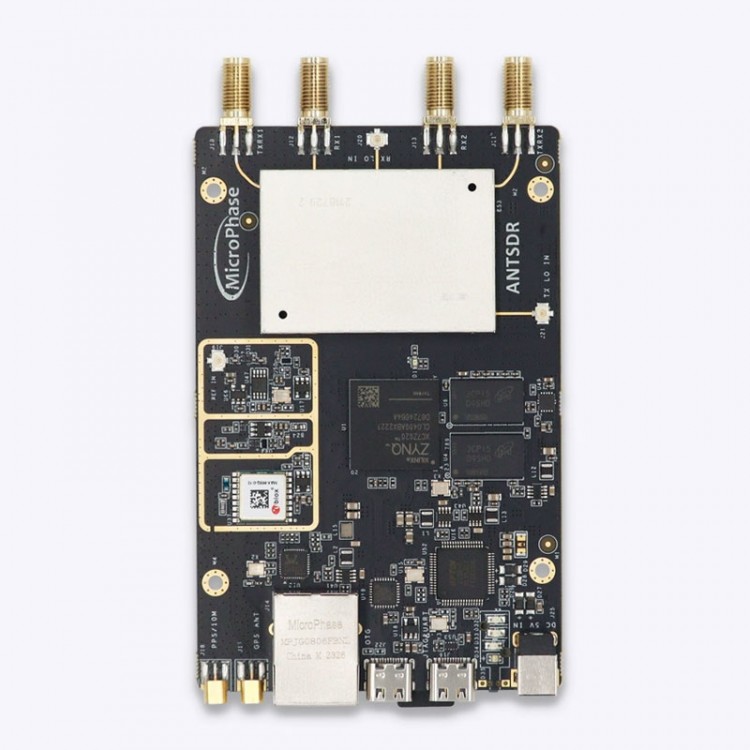

MicroPhase ANTSDR E316-AD9361 Open Source Software Defined Radio Development Board for ZYNQ XC7Z020

MicroPhase ANTSDR E316-AD9361 Open Source Software Defined Radio Development Board for ZYNQ XC7Z020

Description:

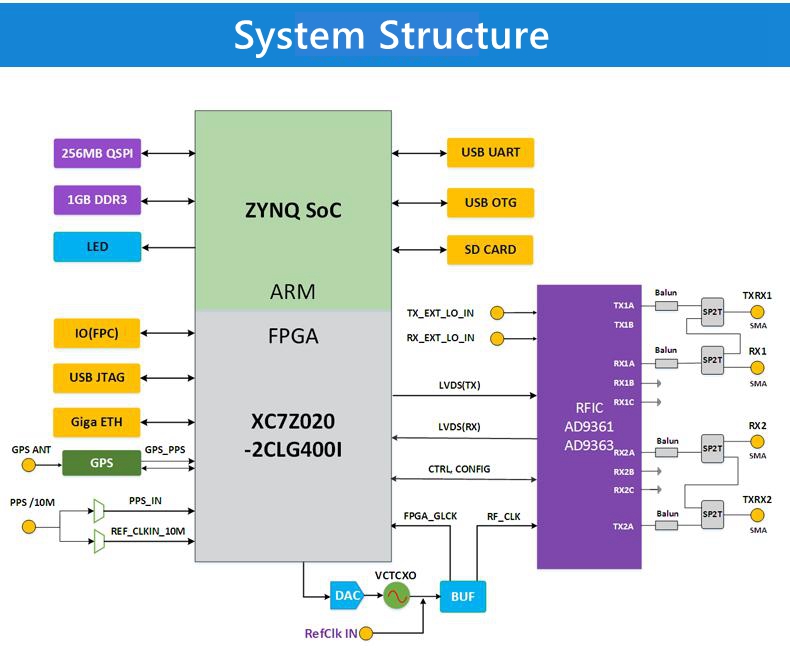

- ANTSDR E316 provides a portable, independently operable software defined radio. The RF solution adopts Analog Devices RF agile transceiver AD9361, which supports 2x2 MIMO and can provide an instantaneous bandwidth of up to 56MHz, ranging from 70MHz to 6GHz, covering most application frequency bands. The base-band processor uses for Xilinx ZYNQ 7020 SoC to provide FPGA accelerated computing, and achieves independent operation through a dual core ARM CPU.
- ANTSDR E316 provides a variety of peripheral devices, such as GPS receivers for position sensing and time synchronization, as well as Gigabit Ethernet and USB interfaces for transmitting IQ data to the host. The Gigabit Ethernet is connected to the FPGA side and uses for UOE technology, providing up to 100MByte/S Ethernet data bandwidth.
- ANTSDR E316 provides two API interfaces: USRP UHD and ADI IIO, which can support mainstream open source SDR software for GNU Radio, for Matlab Simulink, for GQRX, for SDRangel, for GtNSS-SDR, etc. It greatly facilitates users to quickly deploy the design of various SDR applications, such as spectrum monitoring and analysis, base station and UE simulation, mobile radio and drone communication/detection, GPS applications, etc. It supports numerous open source communities and software, for openwifi, for srsRAN, for openbts, etc.

Compared to old version E310:
- Added support for USRP UHD
- The new version has significant optimization in terms of transmission power, acceptance sensitivity, and phase noise.
- The sampling rate bandwidth of the new version up to 25MSPS, which is 2.5 times higher than the old version.
- Clock: 0.5ppm VCTCXO
- GPS: onboard GPS module, which can obtain position information and signals synchronization.
- Synchronization function: provide external 10M, PPS input synchronization, and onboard GPS module synchronization
- Power supply: DC Jack or USB Type-C
- Board size: 108 x 75mm
- Application: for enterprise project development and use, providing three in one support for software, hardware and applications.

Specification:
RF:
- RF IC: AD9361/AD9363 (optional)
- Dual transmission and dual reception, 2x2 MIMO
- 70MHz to 6GHz frequency
- Up to 56MHz bandwidth

Baseband Processor:
- for Xilinx ZYNQ 7020
- 1GByte DDR3 RAM
- 256M QSPI

API:
- For USRP UHD
- ADI IIO (factory pre-installed)
- For C/C++, Python

Synchronization:
- External 10M or PPS input
- Onboard GPS module

Interfaces:
- RJ45 Giga ETH
- Type-C USB OTG
- 1-Channel SD card
- Type-C USB-JTAG
- FPC GPIO expansion

Power:
- DC JACK external power supply
- USB Type-C power supply

Dimension:
- Board: 108 x 75mm
- Shell: 115.7 x 80.4 x 23.4mm

Parameter:
- RF Channel: 2x2 MIMO
- Transmitting power: 10dBm (depend on frequency)
- Withstand noise ratio: < 8dBm
- Frequency range: 70MHz ~ 6GHz
- ADC: 12bit, 61.44MS/s
- DAC: 12bit, 61.44MS/s
- Clock precision: +/-0.5ppm, VCTCXO
- Power input: DC5V or USB Type-C
- Power consumption: 2 ~ 6W
- Transferring IQ bandwidth to the host: 10MSPS (adopt for ADI IIO); 25MSPS (adopt for USRP UHD)

Package Included:
- 1 x ANTSDR-E316
- 1 x Sucker Antenna
- 2 x Rubber Antenna
- 1 x Network Cable
- 1 x 32G Micro SD Card
- 1 x Card Reader
- 2 x USB Data Cable
