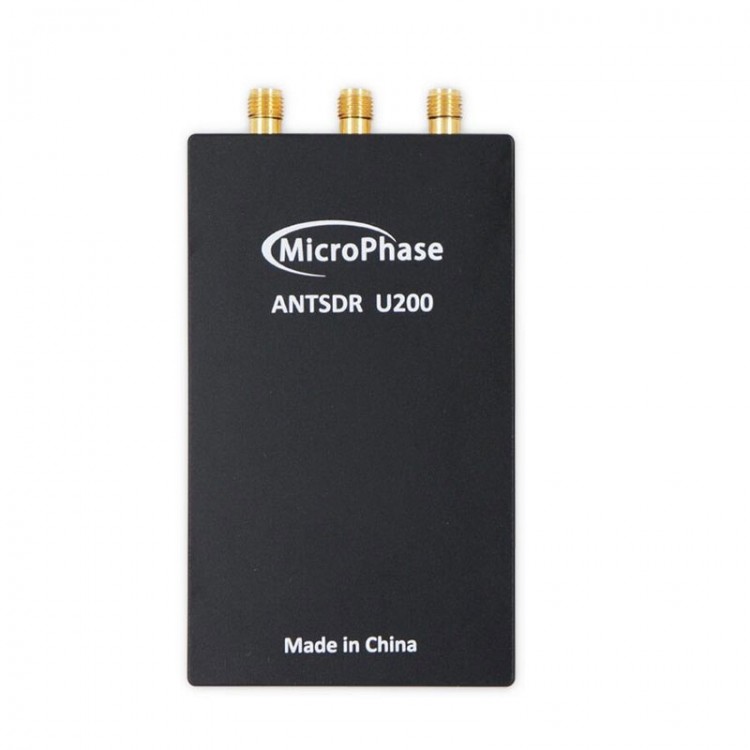

MicroPhase ANTSDR U200-AD9363 70MHz-6GHz SDR Software Defined Radio Development Board Spectrum Sensing Replacement for B205
Features:
- Better RF performance, lower spurious, phase noise, and background noise.
- Rich successful application cases in the industrial sector, such as spectrum monitoring, anti drone, GPS, radio analysis, etc.
- Replacement for B205, and users do not need to change the application, plug and play.

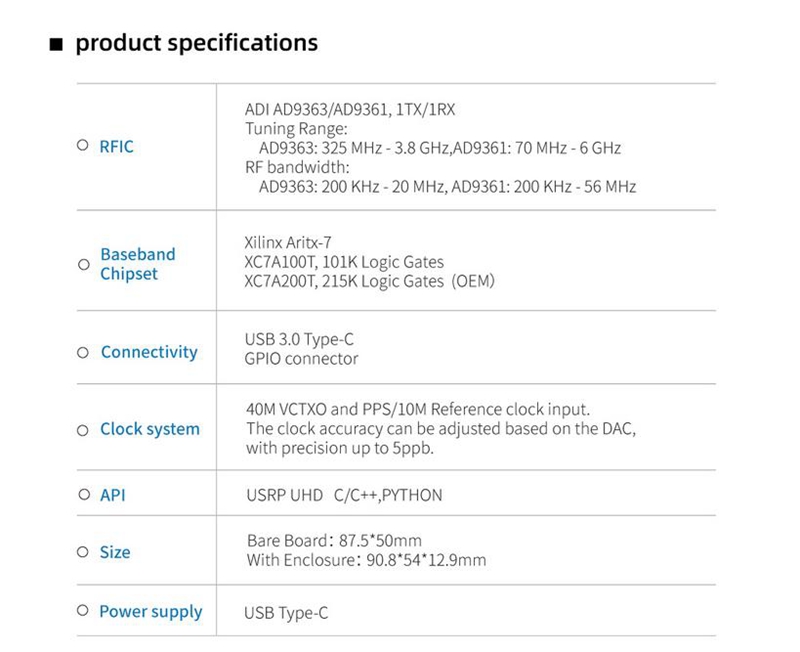

Specification:
- RFC: 1TX/1RX
- ADC: 12bit 61.44MS/s
- DAC: 12bit 61.44MS/s
- Transmit power: up to 10dBm (depends on frequency)
- Accept noise figure: < 8dBm
- Frequency range: 70MHz - 6GHz
- Clock system: ±0.5ppm, VCTCXO
- Power: 2 - 6W
- Real-time transmission bandwidth host: 56MSPS
Supported Firmware:
- For Ettus USRP UHD
Supported Opensource Project:
- For srsRAN
Supported Software:
- For GUNRadio
- For SDRangel
- For Matlab Simulink
- For Gqrx SDR
- For SDR++
- For UHD
Package Included:
- 1 x Development Board with Metal Case
Note:
- We do not provide underlying development support and documentation. Thanks for your understanding.
