MicroPhase U220 AD9361 ANTSDR SDR Radio Software Defined Radio to Replace B210 Radio Spectrum

MicroPhase U220 AD9361 ANTSDR SDR Radio Software Defined Radio to Replace B210 Radio Spectrum

Features:
- Higher bandwidth: Unlike the ANTSDR E series, the U220 uses a USB3.0 interface with an instantaneous rate of 5Gbps, which can easily run the maximum bandwidth of the AD9361.
- It supports USRP UHD and can replace B210: The baseband chip adopts Artix-7 XC7A200T, which has larger logic, faster processing speed, supports MicroPhase's PCle and SFP interfaces (need conversion board), and greatly expands application scenarios.
- More Host interfaces are supported for richer application scenarios. In addition to supporting USB3.0, the U220 can also support PCle and SFP interfaces when used with a conversion board, greatly expanding application scenarios.
- Industrial application cases: ANTSDR has accumulated a wealth of successful applications in the field of radio applications. It can be applied to spectrum detection, drones, GPS, signal masking, private communication, radio perception analysis, etc.
- OEM customization and software, hardware, application integrated professional support services. Provide U220-based OEM customization, software, hardware, application of a full range of professional support services, to help users quickly bring products to market.
- More competitive price: MicroPhase insists on providing users with reasonable and competitive prices and providing users with value-added services.

Specifications:
RE IC:
- AD9361 or AD9363 for ADI
- Double transmitting and double receiving and 2x2MIMO
- Frequency 70MHz to 6GHz
- Up to 56MHz instantaneous bandwidth

API:
- USRP UHD
- C/C++ and Python

Synchronous:
- External 10M or PPS input
- On-board GPS module

Power supply:
- DC JACK external power supply or powered by USB TYPE-C

Baseband processing:
- Aritx-7
- XC7A200T, 215K logic unit, or XC7A100T, 101K logic unit
- 512MByte DDR3 RAM

Interface:
- USB 3.0 Type-C
- PCle 2.0 x4 (requires backboard)
- B2B GPIO extensions

Size:
- Board: 103.3 x 65mm/4.1 x 2.6"
- Shell: 111.5 x 70 x 23.4mm/4.4 x 2.8 x 0.9"

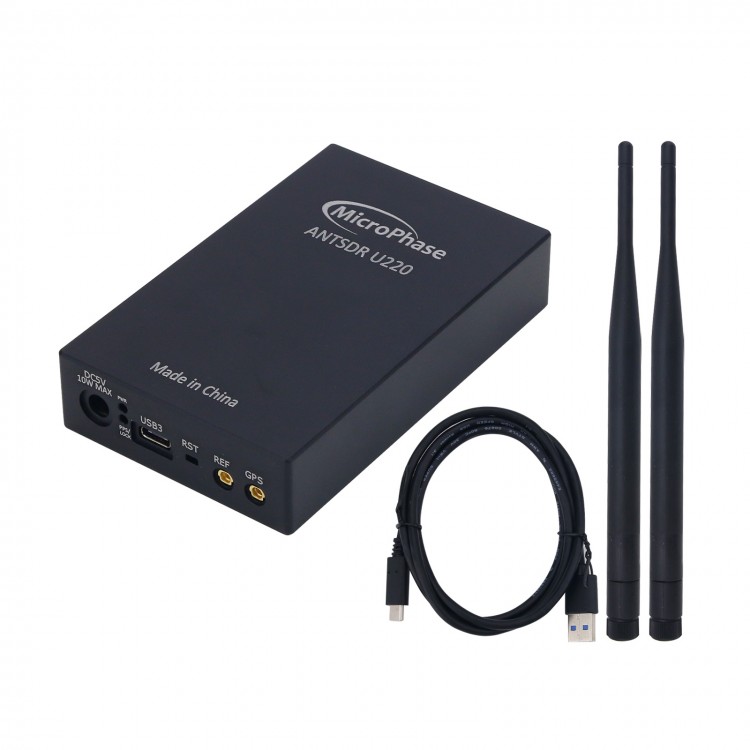

Package Included:
- 1 x U220
- 1 x USB cable
- 2 x Antenna cables
