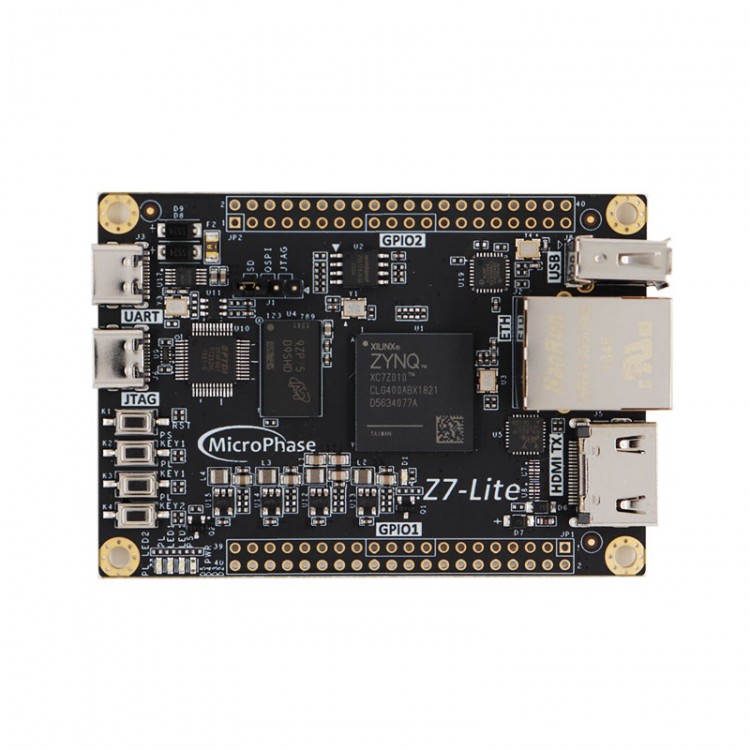

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board + ADA106 for ZYNQ

Availability: In stock, usually dispatched in 1 business day

  • Price:$152.11
  • Price in reward points: 1521 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $149.07 $146.03 $141.46 $135.38 Contact US
Quantity:
Buy it now Add cart

You might like

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board System on Chip Deluxe Version for ZYNQ

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board System on Chip Deluxe Version for ZYNQ

$243.45

(0)
MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System on Chip Deluxe Version

MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System on Chip Deluxe Version

$301.75

(0)
MicroPhase Z7-Lite 7010 Board FPGA Development Board Core Board for ZYNQ 7010 Running Ubuntu Debian

MicroPhase Z7-Lite 7010 Board FPGA Development Board Core Board for ZYNQ 7010 Running Ubuntu Debian

$104.21

(0)
MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board Including Type-C Cable for ZYNQ

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board Including Type-C Cable for ZYNQ

$109.55

(0)
MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board + 5MP Dual Camera for ZYNQ

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board + 5MP Dual Camera for ZYNQ

$173.49

(0)
MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board + 4.3" LCD for ZYNQ

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board + 4.3" LCD for ZYNQ

$148.23

(0)
MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board Including Accessories for ZYNQ

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board Including Accessories for ZYNQ

$128.79

(0)
MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System On Chip with ADA106

MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System On Chip with ADA106

$210.41

(0)

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board + ADA106 for ZYNQ

Features:
- FPGA development board and core board for ZYNQ
- The board born for makers and novices
- Small size 80 x 56mm/3.1 x 2.2"
- Suitable for running Ubuntu and Debian
- Open source for further development

Specifications:
- Module model: Z7-Lite 7010
- Main chip: XC7Z010CLG400-1
- Core: Dual core for Cortex-A9; main frequency 667MHz
- Logic Unit: 28k
- DDR3: 4Gbit, 1066Mbps
- USB-JTAG: With onboard USB JTAG circuit, you can download programs and realize emulation online without additional downloader
- QSPI Flash: 128Mbit. Can be used to store system boot image file (for ZYNQ) and user data
- HDMI: One HDMI to send, which can also be configured as HDMI to receive
- Ethernet: One 10/100 adaptive Ethernet. Can be used for network communication and related applications
- USB Host: One USB Host
- SD Card: One-way SD card to store system boot image file (for ZYNQ) and file system
- USB-UART: One USB UART interface for communication between ZYNQ and PC
- Clock: one-way 33.3333MHz for PS side, and one-way 50MHz for PL side
- Buttons/LEDs: PS side: 1 LED and 1 button; PL side: 2 LEDs and 2 buttons
- Expansion port: 2-way 40-pin 2.54 pitch expansion port, 72 IO, voltage 3.3V

Package Included:
- 1 x FPGA Development board

Note:
- SD card is not included.
