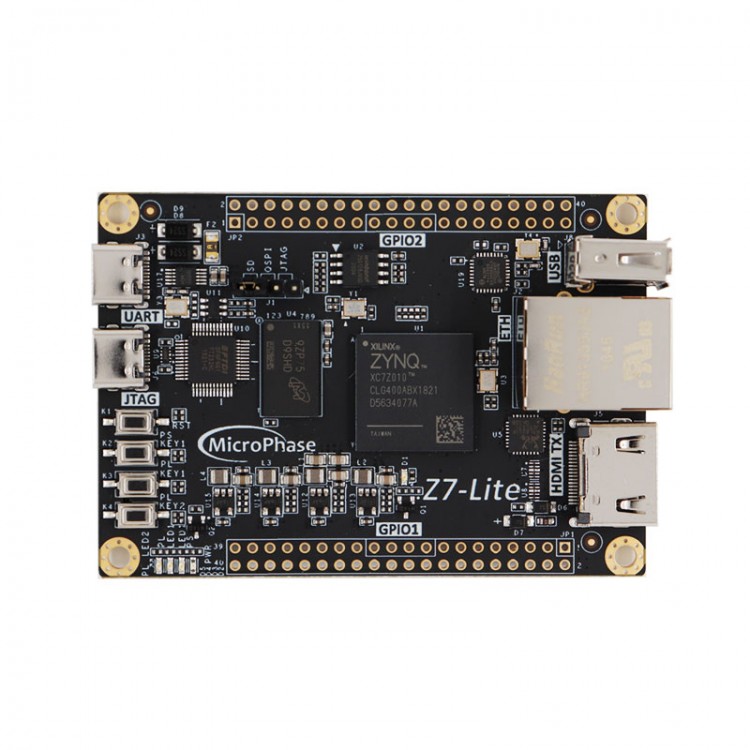

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board Including Accessories for ZYNQ

Features:
- FPGA development board and core board for ZYNQ
- The board born for makers and novices
- Small size 80 x 56mm/3.1 x 2.2"
- Suitable for running Ubuntu and Debian
- Open source for further development

Specifications:
- Module model: Z7-Lite 7010
- Main chip: XC7Z010CLG400-1
- Core: Dual core for Cortex-A9; main frequency 667MHz
- Logic Unit: 28k
- DDR3: 4Gbit, 1066Mbps
- USB-JTAG: With onboard USB JTAG circuit, you can download programs and realize emulation online without additional downloader
- QSPI Flash: 128Mbit. Can be used to store system boot image file (for ZYNQ) and user data
- HDMI: One HDMI to send, which can also be configured as HDMI to receive
- Ethernet: One 10/100 adaptive Ethernet. Can be used for network communication and related applications
- USB Host: One USB Host
- SD Card: One-way SD card to store system boot image file (for ZYNQ) and file system
- USB-UART: One USB UART interface for communication between ZYNQ and PC
- Clock: one-way 33.3333MHz for PS side, and one-way 50MHz for PL side
- Buttons/LEDs: PS side: 1 LED and 1 button; PL side: 2 LEDs and 2 buttons
- Expansion port: 2-way 40-pin 2.54 pitch expansion port, 72 IO, voltage 3.3V

Package Included:
- 1 x FPGA Development board
- 1 x Plexiglass protective cover
- 1 x 16GB Micro SD card
- 1 x Card reader
- 1 x Type-C data cable
- 2 x 2*20P pin headers
