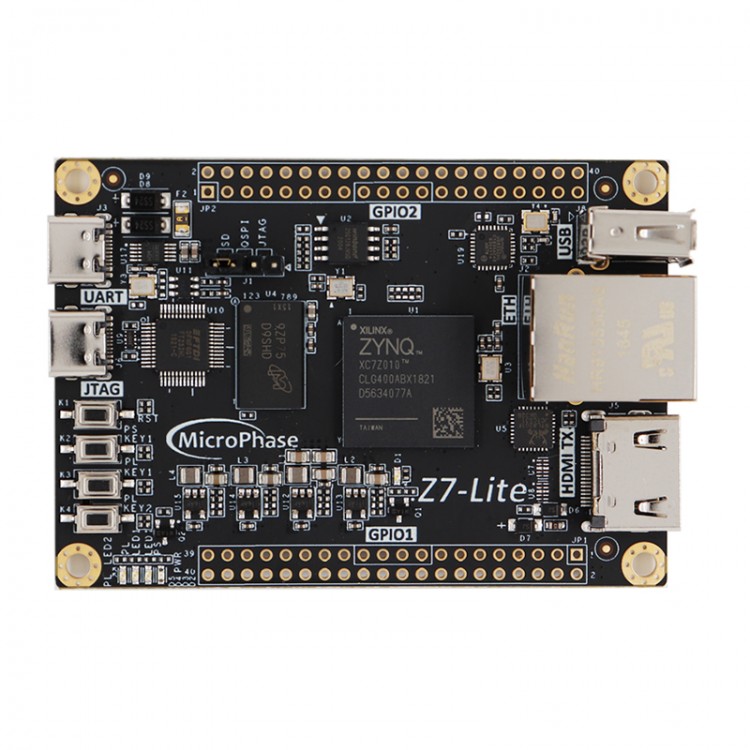

MicroPhase Z7-Lite 7020 FPGA Development Board Core Board for ZYNQ 7020 Running Ubuntu Debian

Availability: In stock, usually dispatched in 1 business day

  • Price:$154.54
  • Price in reward points: 1545 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $151.45 $148.36 $143.72 $137.54 Contact US
Quantity:
Buy it now Add cart

You might like

MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System On Chip Board with Type-C Cable

MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System On Chip Board with Type-C Cable

$177.38

(0)
MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System On Chip with ADA106

MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System On Chip with ADA106

$210.41

(0)
MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System on Chip Board + 5MP Dual Camera

MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System on Chip Board + 5MP Dual Camera

$231.79

(0)
MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System On Chip Board + 4.3" LCD

MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System On Chip Board + 4.3" LCD

$206.53

(0)
MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System on Chip Deluxe Version

MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System on Chip Deluxe Version

$301.75

(0)
MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System On Chip Board with Accessories

MicroPhase Z7-Lite 7020 FPGA Development Board SoC Core Board System On Chip Board with Accessories

$169.80

(0)
MicroPhase Z7-Nano 7020 Industrial Grade FPGA Development Board SoC Core Board w/ Dual Network Port

MicroPhase Z7-Nano 7020 Industrial Grade FPGA Development Board SoC Core Board w/ Dual Network Port

$222.59

(0)
MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board Including Accessories for ZYNQ

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board Including Accessories for ZYNQ

$128.79

(0)

MicroPhase Z7-Lite 7020 FPGA Development Board Core Board for ZYNQ 7020 Running Ubuntu Debian

Features:
- High quality and cost-effective SoC development board
- Z7-Lite starter kit for makers and beginners

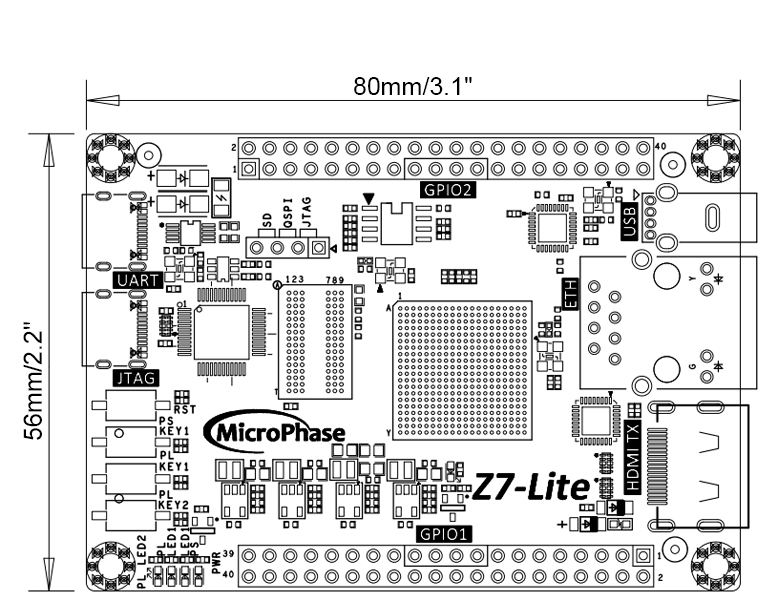

- Board size 80 x 56mm/3.1 x 2.2"
- For running Ubuntu/Debian
- Open-source materials

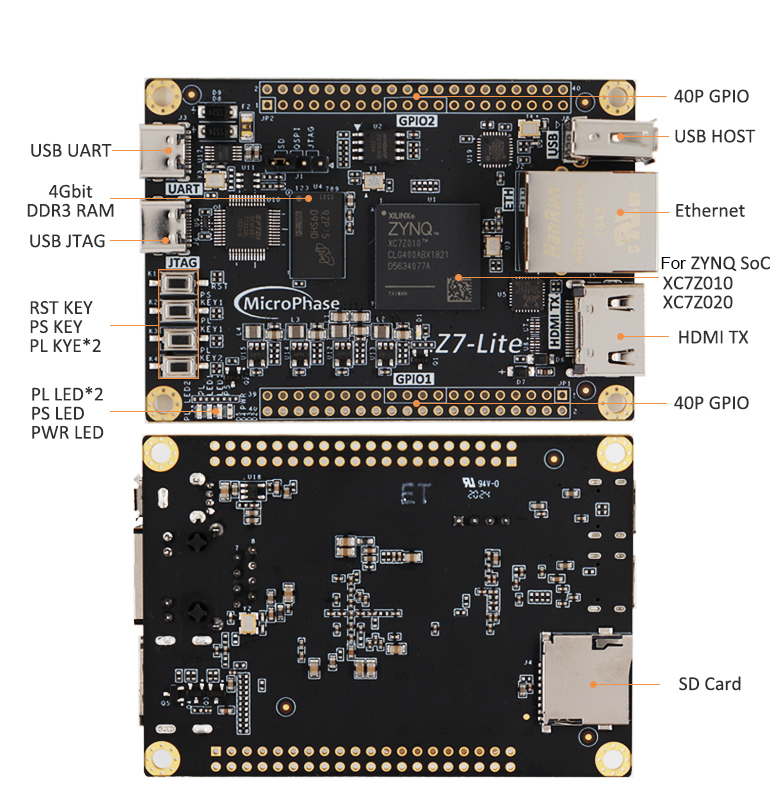

Specifications:
- Module model: Z7-Lite 7020
- Main chip: XC7Z020CLG400-2
- Core: Dual core for Cortex-A9, main frequency 766MHz
- Logic Units: 85k
- DDR3: 4Gbit, 1066Mbps
- USB-JTAG: Onboard USB JTAG circuit. You can download programs and emulation online without additional downloader
- QSPI Flash: 128Mbit. Can be used to store system boot image file (for ZYNQ) and user data
- HDMI: One HDMI to send. Can also be configured to accept HDMI
- Ethernet: One 10/100 adaptive Ethernet, which can be used for network communication and related applications
- USB Host: One USB Host
- SD Card: Support one SD card to store system boot image file (for ZYNQ) and file system
- USB-UART: One USB UART interface for ZYNQ and PC communication
- Clock: PS side: one-way 33.3333MHz; PL side: one-way 50MHz
- Button/LED: PS side: 1 LED and 1 button; PL: side 2 LED and 2 buttons
- Expansion port: 2-way 40-pin 2.54 pitch expansion port, 72 IO, 3.3V

Package Included:
- 1 x Development Board
- 1 x Type-C Data Cable

Note:
- SD card is not included.
