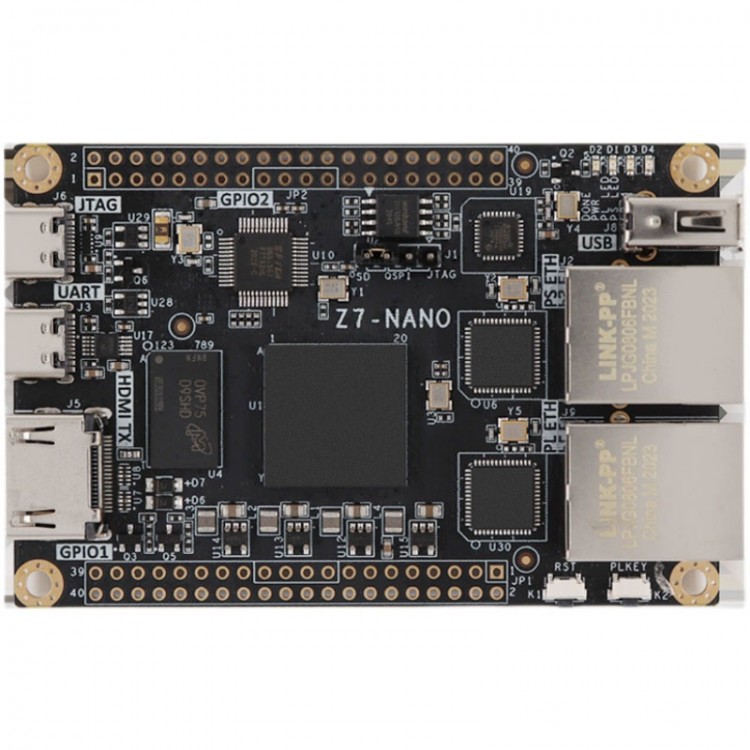

MicroPhase Z7-Nano 7020 Commercial Grade FPGA Development Board SoC Core Board with 2 Network Ports

MicroPhase Z7-Nano 7020 Commercial Grade FPGA Development Board SoC Core Board with 2 Network Ports

Features:
- SOC core board for ZYNQ
- Z7-Nano is a high-quality and cost-effective SoC development board
- Built for makers and product development
- Dual Gigabit network ports: one network port on the PS and PL sides
- Small size, 85 x 56mm/3.3 x 2.2", enables easy carrying
- Can be used for operating Ubuntu and Debian

Specifications (Z7-Nano 7020):
- Main chip: XC7Z020CLG400-2
- Core: Dual-core Cortex-A9 clocked at 766MHz
- Logical unit: 85K
- DDR3: 4Gbit, 1066Mbps
- USB-JTAG: On-board USB JTAG circuitry, no additional downloader required. Users can download programs and simulations offline
- QSPI Flash: 128Mbit, which can be used to store system boot image files (for ZYNQ) and number of users
- HDMI: One-way HDMI transmission, which can also be configured to HDMI acceptance
- Ethernet: A total of two 10/100/1000 adaptive Ethernet, that is, one network port on the PS and PL sides. Can be used for network communication or related applications
- USB Host: One-way USB Host
- SD Card: One-way SD card to stores system boot image files (for ZYNQ) and file systems
- USB-UART: A USBUART interface for ZYNQ to communicate with a PC
- Clock: 33.3333MHz on the PS side and 50MHz on the PL side
- Button: PL side button x1
- LED: PS side LED x1, PL side LED x1
- Expansion port: 2-channel 40-pin 2.54 pitch expansion port, 72 IO, 3.3V

Package Included:
- 1 x Z7-Nano Development Board
- 1 x Type-C Data Cable

Note:
- SD card is not included.
