Microscope Camera Kit 48MP FHD Camera V8 HDMI USB Output 180X Lens 144-LED Light For PCB Repair
Features:
- Model: Camera with HDMI USB2.0 outputs
- Image format: jpg
- Image resolution: 48MP
- Video format: MP4 (for TF card)
- Video recorder: 2K at 30FPS, 1080P at 60FPS
- HDMI Video resolution: 1920*1080 at 60FPS
- USB Video resolution: 1920*1080 at 30FPS; 1280*720 at 30FPS; 640*480 at 30FPS; 320*240 at 30FPS
- White Balance: Automatic/Manual
- Light: Automatic/Manual
- Exposure: Automatic/Manual, value adjustable
- Color: Color
- Mirror: Left/right, Up/Down
- Freeze: Support
- OSD: English/Chinese/French/Spanish/Japanese/German
- Line: different color, 5 horizontal line, 5 vertical line, any positions
Specifications:
- Image sensor: 48 megapixel for Panasonic CMOS sensor 1/2.33 inch
- Effective pixel: 48 megapixel
- Pixel size: 1.335μm x 1.335μm
- Frame rate: 60fps
- Definition: FULL HD
- Housing: metal
- Lens: C/CS
- Video format: MOV
- Digital Zoom: Support
- Brightness control: Automatic/manual
- Color: R/G/B adjustable
- Film and record: Support
- Cross cursor: Support multi-color, size adjustable
- Transverse and vertical line: Support multi-color, 5pcs of transverse lines/vertical lines, moveable. Different color, 5 horizontal line, 5 vertical line, any positions
- TF card interface: Max. 128G
- HDMI interface: Standard HDMI output (Type A)
- USB interface: Standard usb2.0 interface (Type B)
- Input Voltage: DC 12V
180X C-Mount Lens:
- Working distance: 95mm
- Zoom c-mount Lens
- 0.5X C-mount adapter
- Zoom ratios: 6.5:1
- Objective Magnification Power by 0.7-4.5X (about 10-180X on the display)
- Size: 180mm (L) * 50mm (DIA.)
144-LED Ring Light:
- Provides intense and focused shadow-free illumination
- 144 bright white LED bulbs
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power supply input: 100-240V, 50-60HZ, automatic switching
- Inside diameter of the ring light: 1.0" (27mm)
- Overall outside diameter: 1.77" (45mm)
- Working Distance: 27mm-45mm

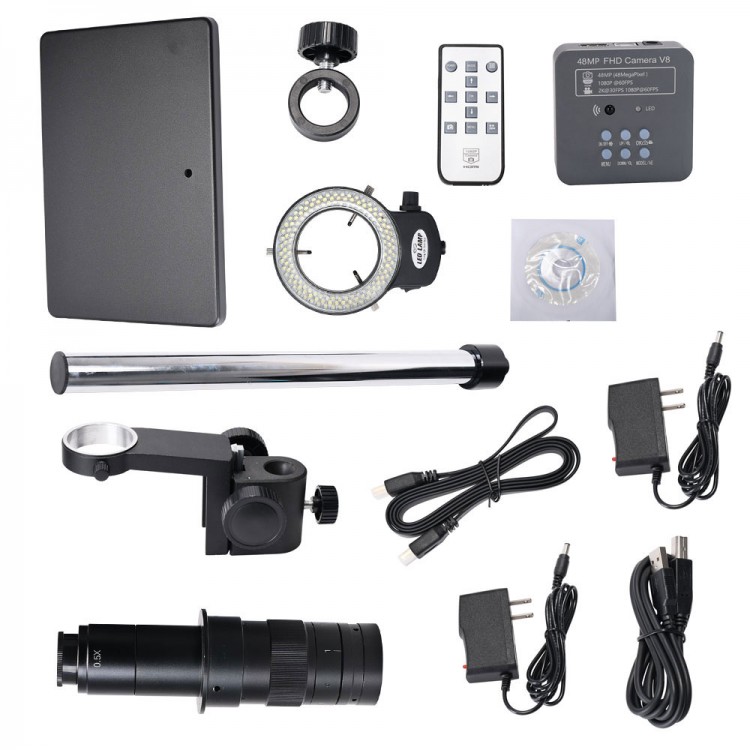

Package Included:
- 1 x Set of Industrial Camera
Note:
- Display screen and TF card are not included.
