Microwave Capacitors RF Feed Box Bias Tee Coaxial Feed RF Blocking 10M-6GHz Low Insertion Loss

Availability: In stock, usually dispatched in 1 business day

  • Price:$16.09
  • Price in reward points: 161 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $15.77 $15.45 $14.96 $14.32 Contact US
Quantity:
Buy it now Add cart

You might like

RF Biaser Bias Tee Board 10MHz-6GHz F HAM Radio RTL SDR LNA Low Noise Amplifier Board

RF Biaser Bias Tee Board 10MHz-6GHz F HAM Radio RTL SDR LNA Low Noise Amplifier Board

$4.49

(0)
Coaxial Bias Tee 10MHz-6GHz 2A 50V Broadband Radio Frequency Microwave Coaxial Bias Tee

Coaxial Bias Tee 10MHz-6GHz 2A 50V Broadband Radio Frequency Microwave Coaxial Bias Tee

$33.49

(0)
RF Biaser Bias Tee 10MHz-6GHz F HAM Radio RTL SDR LNA Low Noise Amplifier New

RF Biaser Bias Tee 10MHz-6GHz F HAM Radio RTL SDR LNA Low Noise Amplifier New

$17.91

(0)
10MHz-10GHz RF Isolator DC Block SMA DC Feed Coaxial Bias Tee 400mA High Quality RF Accessory

10MHz-10GHz RF Isolator DC Block SMA DC Feed Coaxial Bias Tee 400mA High Quality RF Accessory

$15.37

(0)
10M-10GHz RF Bias Tee DC50V Bidirectional Feed Coaxial Bias Tee with SMA Female Connector RF Accessory

10M-10GHz RF Bias Tee DC50V Bidirectional Feed Coaxial Bias Tee with SMA Female Connector RF Accessory

$20.81

(0)
0.1-6GHz RF Microwave DC Bias Tee DC Blocker DC Feed DC Bias For Ham Radio Active Antenna

0.1-6GHz RF Microwave DC Bias Tee DC Blocker DC Feed DC Bias For Ham Radio Active Antenna

$8.53

(0)
10MHz-10GHz RF Isolator DC Block Coaxial Bias Tee 400mA DC Feed with SMA Female Connector High Quality RF Accessory

10MHz-10GHz RF Isolator DC Block Coaxial Bias Tee 400mA DC Feed with SMA Female Connector High Quality RF Accessory

$15.37

(0)
G3N36 100KHz-12GHz Wide Band Dual Bias Tee High Quality Coaxial RF Feed Box 50V SMA Male to Female Connector

G3N36 100KHz-12GHz Wide Band Dual Bias Tee High Quality Coaxial RF Feed Box 50V SMA Male to Female Connector

$47.08

(0)

Microwave Capacitors RF Feed Box Bias Tee Coaxial Feed RF Blocking 10M-6GHz Low Insertion Loss

Application Scenarios:
1. Antenna radio frequency feed
2. Connect the instrument to block direct current when testing the module [The spectrum analyzer and signal source cannot be directly connected to direct current, so DC block is required.]

Module Specifications:
- Volume: 4.5*3*1.4cm (without protruding SMA size)
- Product Weight: 66g (including host + TYPE-C cable)

Module Parameters:
1. Working frequency: 10M-6GHz
2. Insertion loss: ≤1dB (refer to the measured S21, S11 curve for details)
3. Normal working voltage of DC blocking: DC-250V [for ATC DC blocking capacitor nominal withstand voltage value of 250V, high frequency microwave low insertion loss capacitor]
4. Normal working voltage and current of feeding: ≤350mA [The feeding current is mainly related to the inductance current limit of feeding. The currently used microwave radio frequency inductor is 350mA; the maximum feed voltage is 50V]. Powered via the TYPE-C interface
5. Input and output impedance 50 ohms, input and output interface SMA (female connector). If you need male connector, please contact us

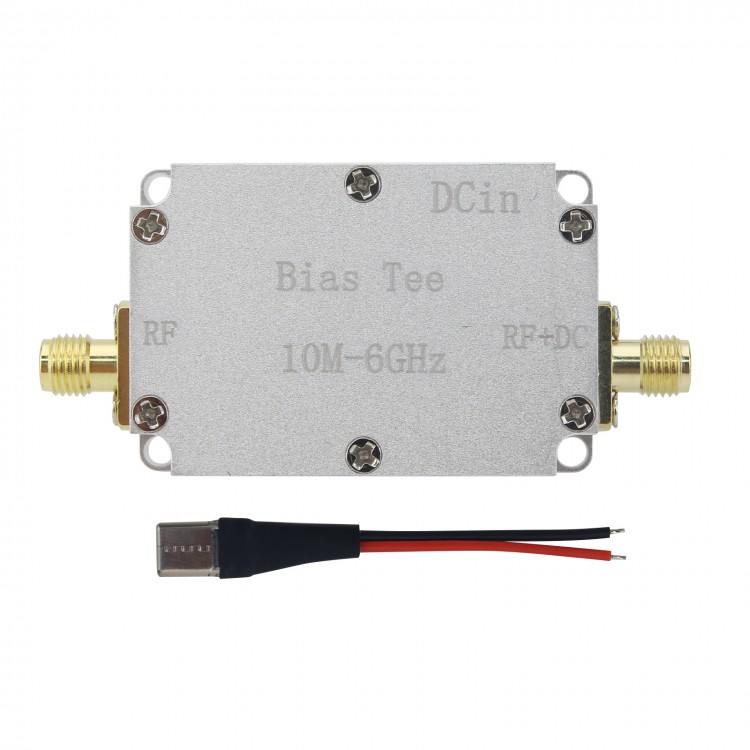

Package Included:
- 1 x Bias Tee Aluminum Alloy Shell
- 1 x TYPE-C Male Cable [For power feeding, do not need to be connected when used as a DC isolator]

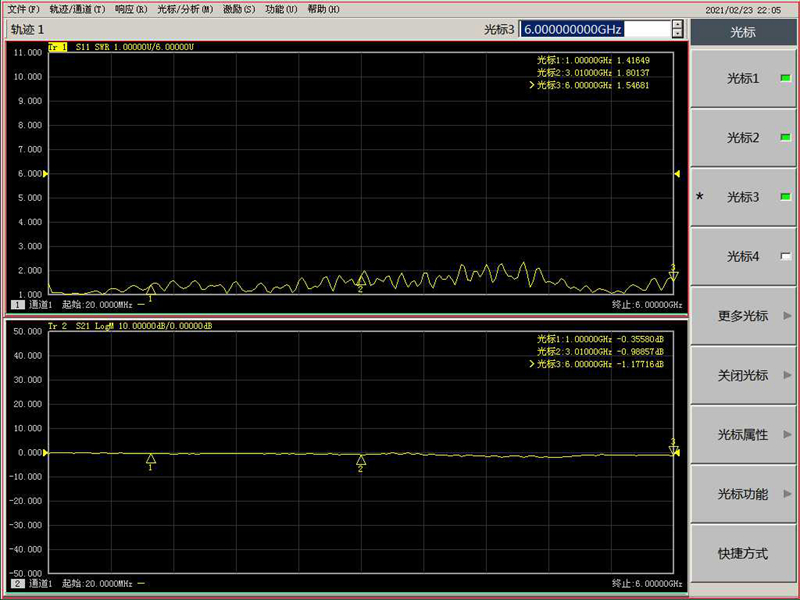

Measured S Parameters:
