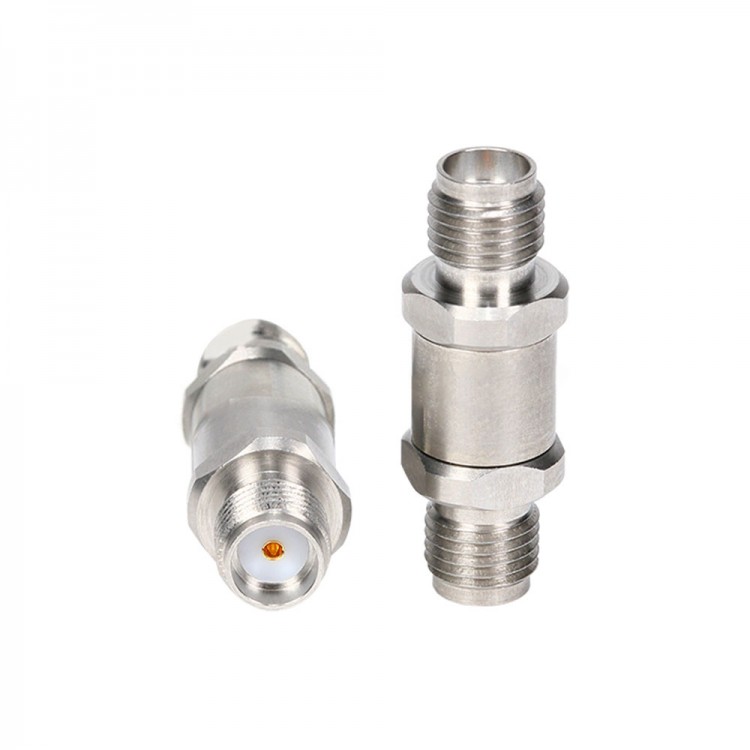

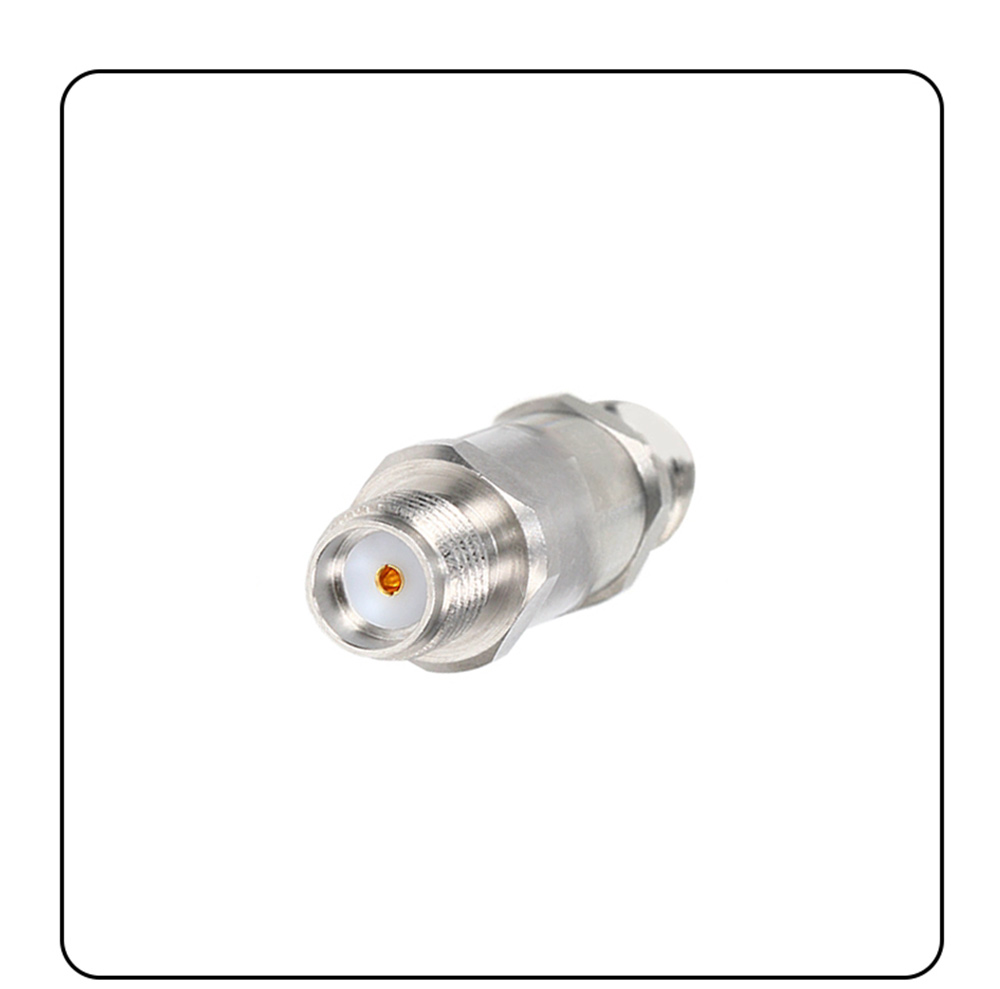

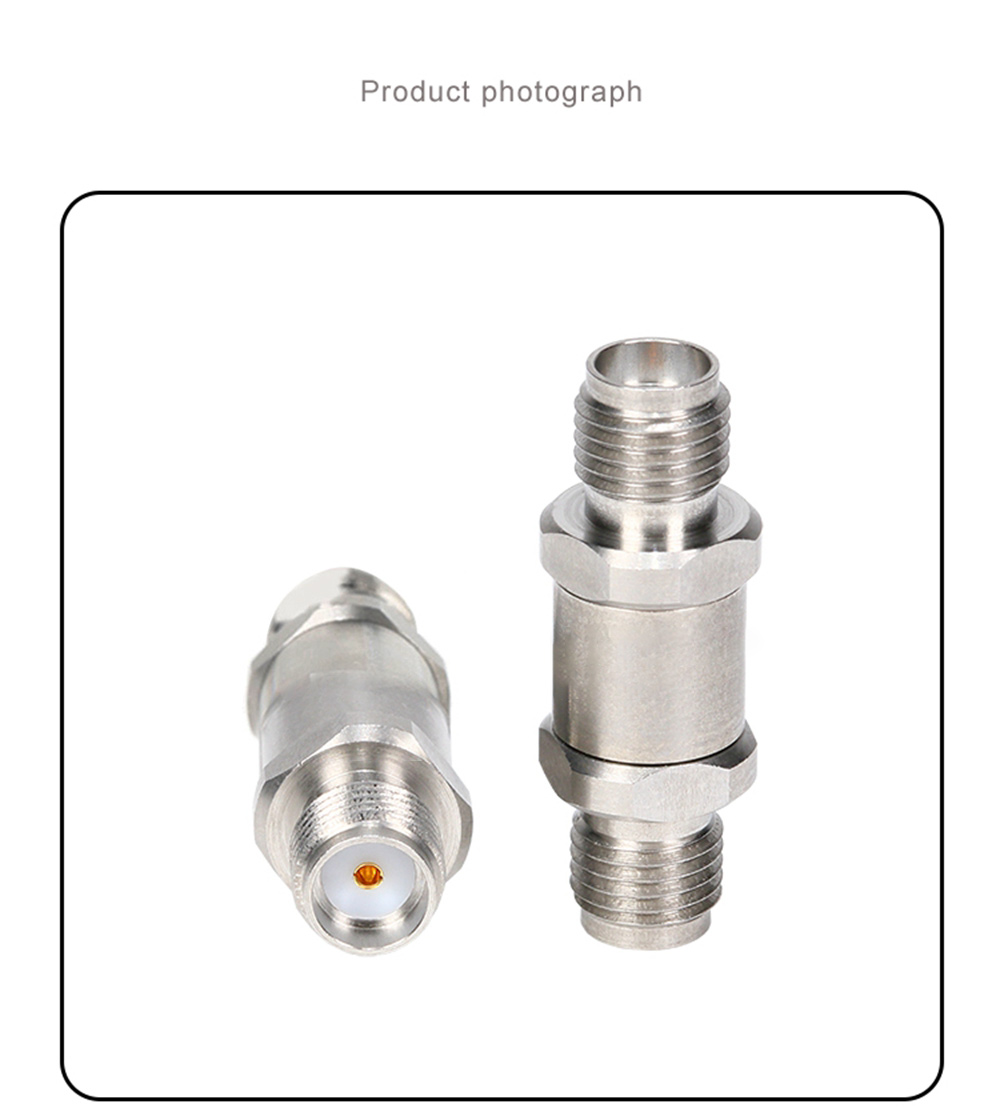

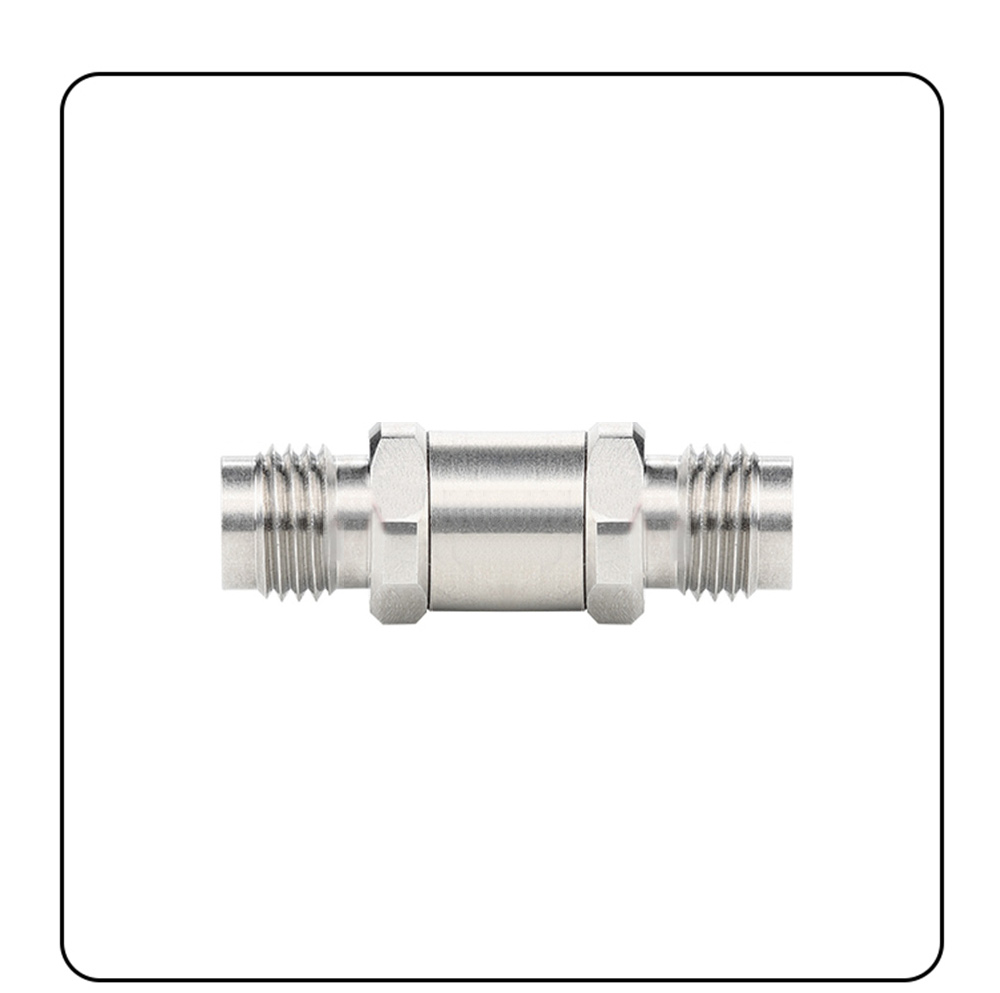

Microwave Stainless Steel RF Connector SMA-KK Female to Female 18G High Frequency RF Adapter 50ohm DC-26.5GHz

Availability: In stock, usually dispatched in 1 business day

  • Price:$19.84
  • Price in reward points: 198 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $19.44 $19.05 $18.45 $17.66 Contact US
Quantity:

Microwave Stainless Steel RF Connector SMA-KK Female to Female 18G High Frequency RF Adapter 50ohm DC-26.5GHz

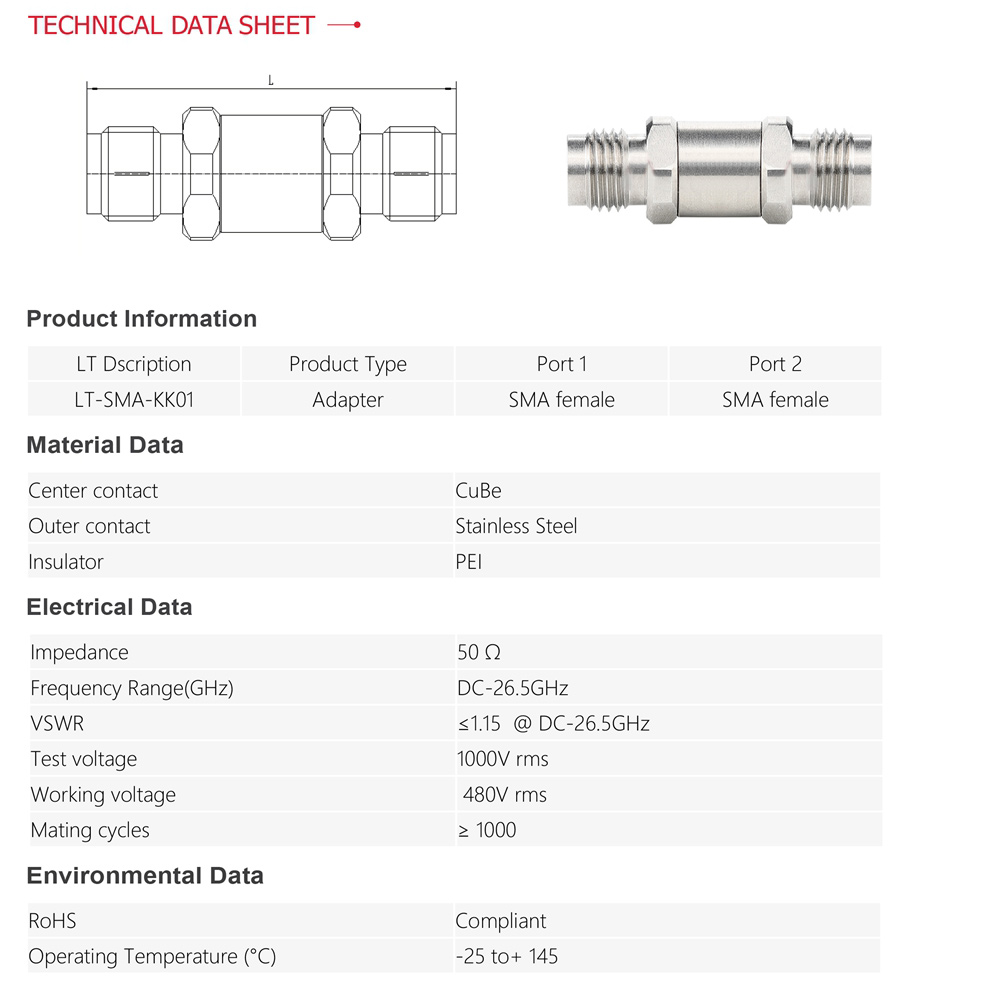

Specification:

- Impedance: 50ohm
- Frequency range: DC-26.5GHz

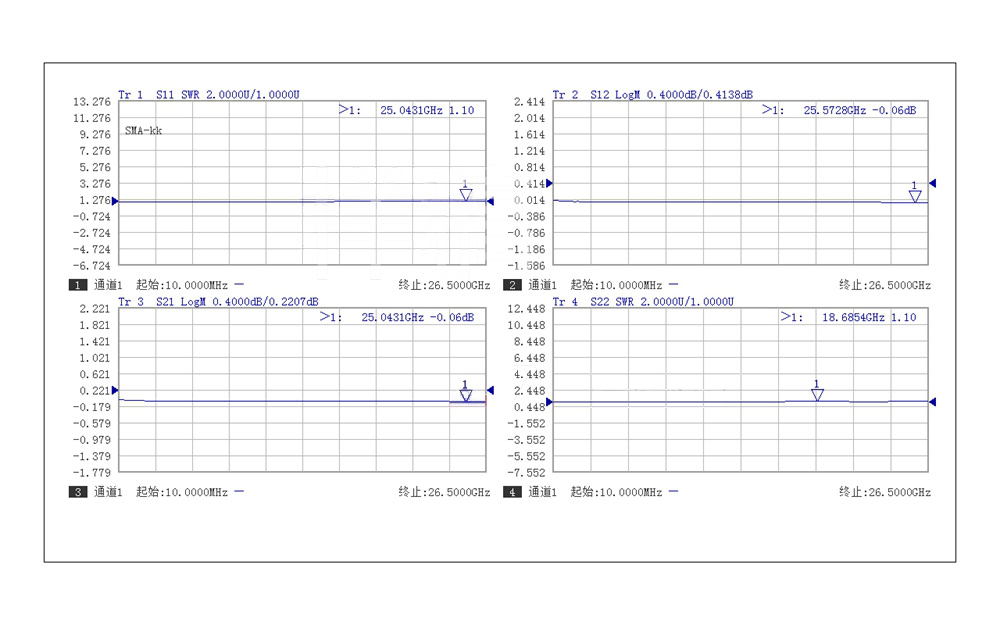

- VSWR: ≤1.15 at DC-26.5GHz
- Test voltage: 1000Vrms
- Working voltage: 480Vrms
- Mating cycles: ≥1000
- Operating temperature: -25℃ ~ 145℃

Package Included:

- 1 x SMA-KK RF Adapter
