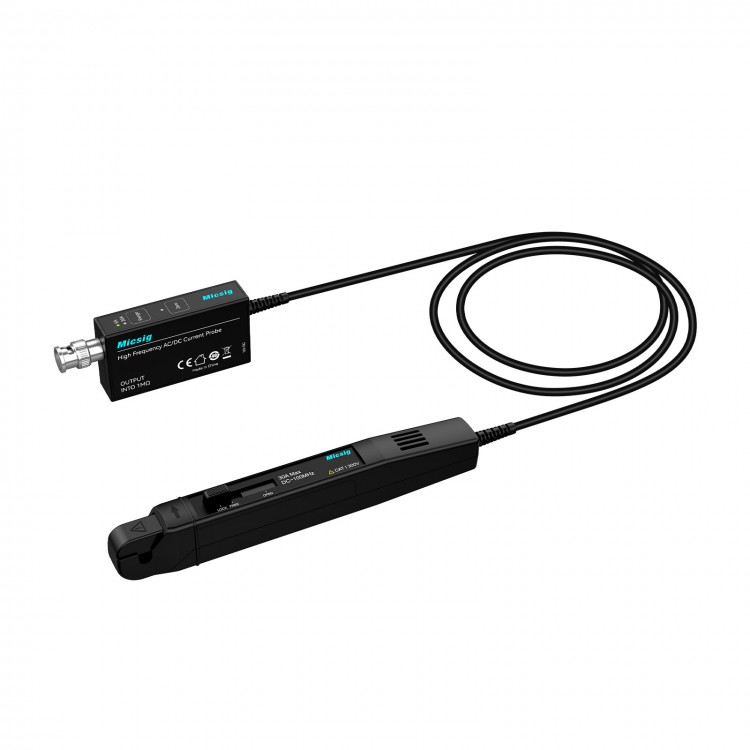

Micsig CP503B 50MHz 5A/30A High Frequency AC DC Current Probe with BNC Interface for Oscilloscopes

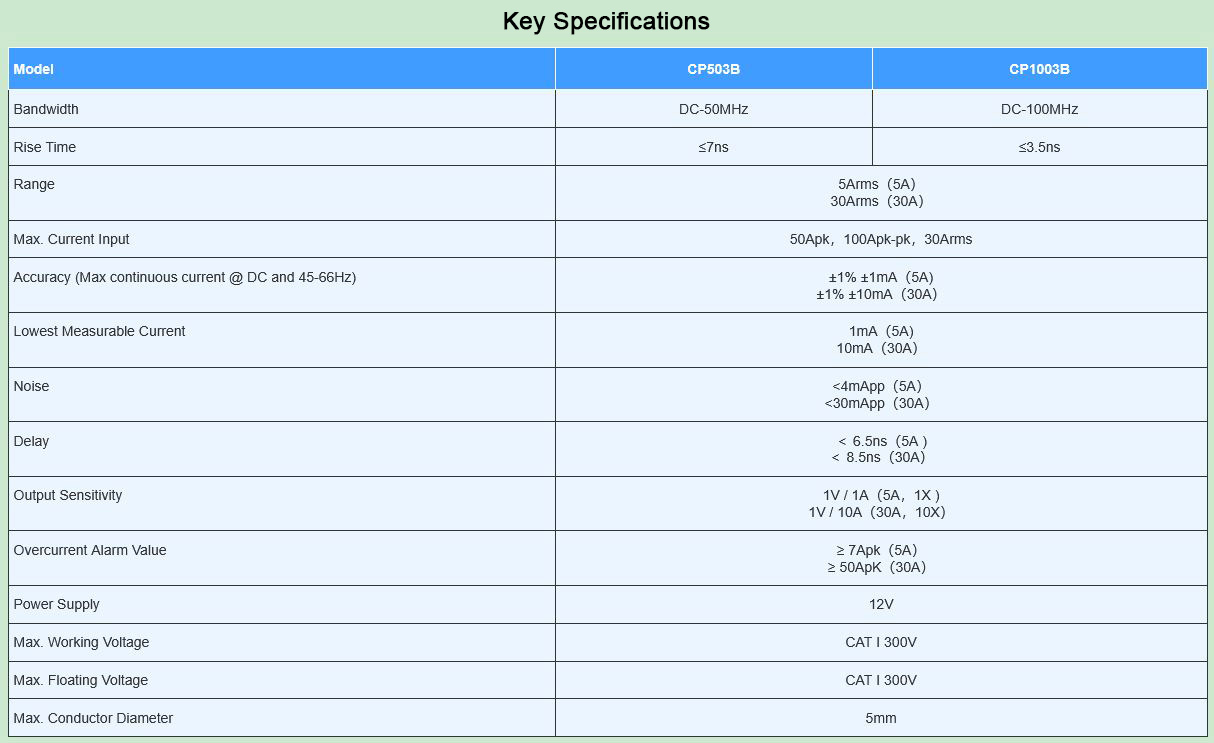

Features:
* Bandwidth: DC~50MHz.
* Current Range: 5A/30A.
* DC Accuracy (Typical): ±1%.
* BNC Interface: The standard BNC interface is compatible with any oscilloscope.
* Compact and Exquisite Design: Designed for one-handed operation, making it suitable for various complex testing scenarios.
* Automatic Degaussing and Zeroing: By pressing the "Zero" button, the probe will simultaneously degauss and calibrate itself automatically.
* Overload Indicator: When an overload is detected, the corresponding range button will flash to alert the user.
* HF Current Signal Measurements: Capable of accurately measuring high-frequency signals above 20 MHz.
* Surge Current Observation: Accurately collects the surge current waveform during power adapter startup.
Applications:
* Electric vehicle transportation design
* Switching power supply design
* Experiment of electronic engineering
* Semiconductor devices design
* Avionics design
* Inverter/Transformer design
* Electronic ballast design
* Industrial Control / Consumer Electronics design
* Engine driven design
* Power electronics and electric drive experimental design
Package Included:
* 1 x CP503B Current Probe
Packaging Details:
* Weight: 2kg
