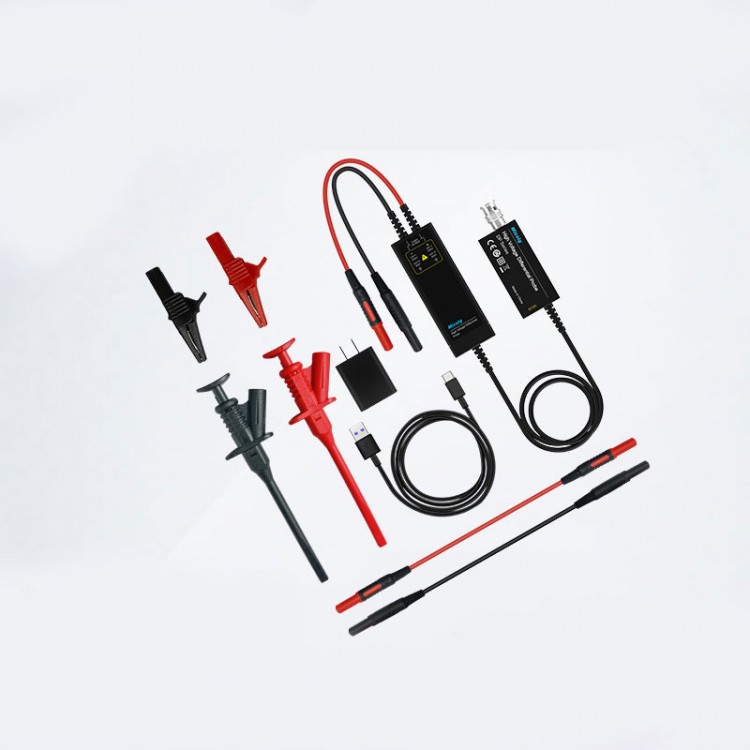

Micsig DP10013 (100M+1500V) Oscilloscope High Voltage Differential Probe Kit with BNC Interface
Description:
- The DP series high-voltage differential probe, redefined based on optical isolation probe technology, has ultra-low noise floor, excellent amplitude frequency characteristics, and a higher common mode rejection ratio in the industry, helping you easily cope with various high-frequency and high-voltage signal tests.
- The DP series has excellent bandwidth flatness, with amplitude fluctuations of less than 0.5dB within half of the bandwidth, and can maintain signal testing accuracy in the high frequency range.
- Universal standard BNC interface, compatible with all brands of oscilloscopes.
- 5MHz bandwidth limitation, used for measuring the switching frequency of FET in most switching power supplies, effectively filtering out high-frequency noise and interference.
- One click zeroing: Short circuit the differential probe probe, press the Zero button, and the differential probe will quickly complete zeroing.
- Support dual range switching, effectively improve signal-to-noise ratio, and meet more testing circuit requirements.
- Overvoltage alarm: when the voltage is overloaded, the range LED light will continuously flash and the buzzer will continuously emit a "beep beep" sound.
- Compact size and exquisite appearance: one-third the size of traditional differential probes, completely bidding farewell to clumsy appearance; The design is more compact and the appearance is more exquisite.
Specification:
- Model: DP10013
- Bandwidth: 100MHz
- Rise time: 3.5ns
- Range selection (attenuation rate): 50X, 500X
- Accuracy: ±2%
- Maximum differential test voltage: 1500Vpk
- Maximum input voltage-to-earth: 1000V CAT II
- CMRR: > 80dB (DC), > 60dB (100kHz), > 50dB (1MHz)
- Input impedance: 10Mohms/1pF (differential), 5Mohm/2pF (single-ended to ground)
- Output voltage: ≤3V
- Overroad alarm: button light flashes
- Power supply: DC 5V, USB supply
- Power: 0.85W
- Product size: 14.5 x 6 x 2.7cm
- Input cable length: approx 45cm
- Output cable length: approx 90cm
- Operating temperature: 0℃ ~ 40℃
- Operating humidity: 10% ~ 85% RH
- Storage temperature: -30 ~ 70℃
- Storage humidity: 5% ~ 90%RH
Package Included:
- 1 x Testing Probe Kit
