Micsig DP1500 High Voltage Differential Probe w/ 100MHz Bandwidth & 1500V MAX Differential Voltage

Micsig DP1500 High Voltage Differential Probe w/ 100MHz Bandwidth & 1500V MAX Differential Voltage

Introduction to the DP Series High Voltage Differential Probe:
Originating from Micsig's cutting-edge SigOFIT™ technology, the DP series differential probe features an extremely low noise floor, excellent high-voltage amplitude-frequency characteristics, and industry-leading common-mode rejection capability. It enables users to effortlessly test high-frequency and high-voltage signals.

With a standard BNC interface, the DP series is compatible with any oscilloscope. The probe body is only 2cm thick and features built-in robust metal shielding, providing excellent anti-interference capabilities. It includes a one-press automatic-zero function, dual-range selection, and an overload alarm design. Designed with high impedance, it meets various safety test requirements. The 5MHz bandwidth limit function effectively filters out high-frequency noise and interference, making it ideal for testing switching power supplies, as well as various high-frequency and high-voltage floating or isolated signals.

Features:
* Excellent Bandwidth Flatness: The DP series probe features excellent bandwidth flatness, with amplitude fluctuations of less than 0.5dB within its half-bandwidth range. Even in high-frequency bands, it maintains high accuracy.
* High Accuracy and High CMRR: With high input impedance and low input capacitance, the DP series minimizes load effects, significantly improving the accuracy of differential signals. Its high common-mode rejection ratio (CMRR) enables reliable floating measurements of large common-mode voltages at high frequencies. Example: CH1 at 100kHz, 207.7V: Output common-mode signal amplitude is 94.62mV, with CMRR > -60dB.
* 5MHz Bandwidth Limit (Available on 100MHz ~ 200MHz Versions): When measuring FET switching frequencies in most switching power supplies, the DP probe effectively eliminates high-frequency noise.
* Quick Zero: Short-circuit the test leads and press the Zero button to quickly zero the probe.
* Dual Range Selection: This feature improves the signal-to-noise ratio and meets a wider range of testing requirements.
* BNC Interface: Equipped with a standard BNC interface, the DP series is compatible with any oscilloscope.
* Over-voltage Alarm: An LED flashes and a buzzer emits rapid beeps to indicate an over-range alert.
* Compact & Exquisite Design: The DP series is significantly smaller than traditional differential probes, offering a sleek and portable design.

Applications:
* Floating measurement
* High-voltage isolation measurement
* Switching power supply design
* Power converter design
* Inverter and UPS design
* Welding and electroplating power supply design
* Electronic ballast design
* Motor drive design
* Induction heating and cooker design
* CRT display design
* Low-voltage appliances
* Electronic power and drive experiments

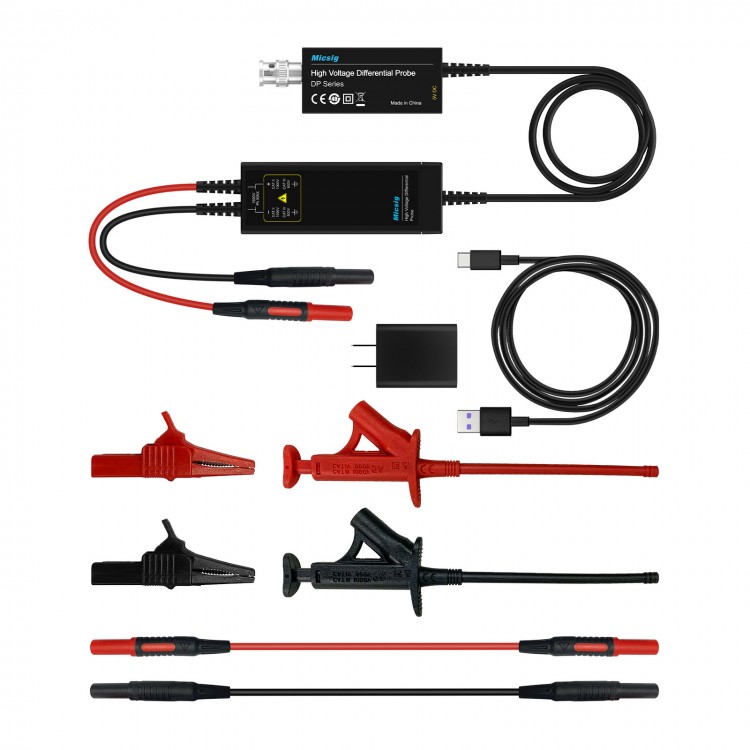

Package Included:
* 1 x Set of Differential Probe

Packaging Details:
* Weight: 1kg

Note:
* Oscilloscope is not included.
