Micsig MDP700 100MHz 700V High Voltage Differential Probe Oscilloscope Probe Universal Type

Micsig MDP700 100MHz 700V High Voltage Differential Probe Oscilloscope Probe Universal Type

Description:
Originated from Micsig's cutting-edge SigOFIT TM technology, the MDP series high-voltage differential probe has very low noise floor, excellent amplitude-frequency characteristics and industry-leading common mode rejection capability, allow users to test high-frequency and high-voltage signals with ease.

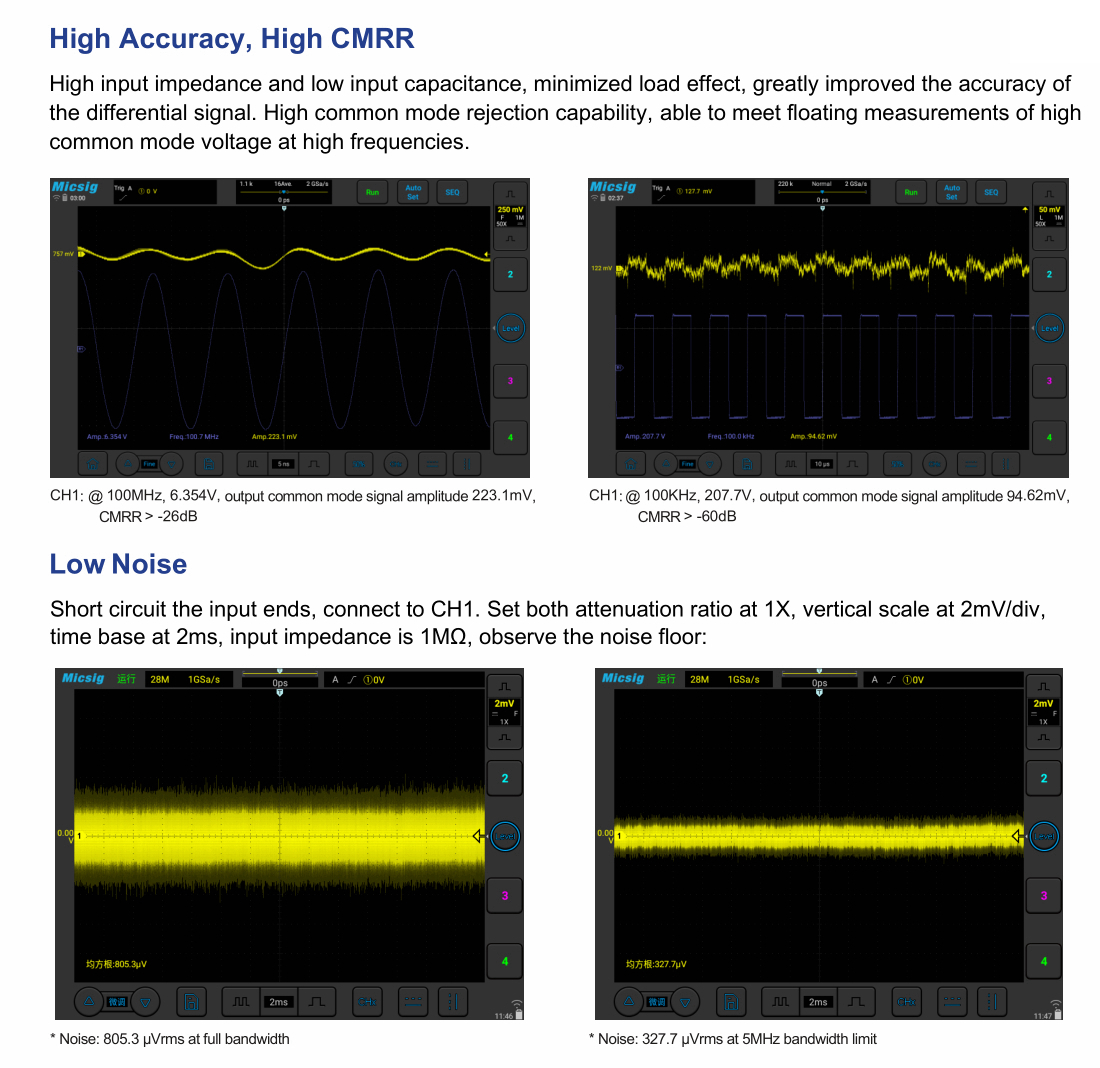

The MDP series probe has excellent bandwidth flatness, amplitude fluctuation less than 0.5dB within its half bandwidth range, even in high frequency bands can also maintain high accuracy.

Features:
* 5MHz Bandwidth Limit: Effectively eliminates high-frequency noise when measuring FET switching frequency in most switching power supplies.
* Quick Zero: Short-circuit the test leads, press Zero button and the probe can be zeroed quickly.
* Dual Range Selection: Signal-to-noise ratio is improved to meet more test requirements.
* BNC Interface: It works with any oscilloscope due to standard BNC interface
* USB Power Supply: Powered directly from oscilloscope USB port
* Over-Range Alarm: LED flashes and buzzer beeps rapidly, indicating an over-range alert
* Compact & Exquisite: Much smaller than other differential probes

Application:
* Floating measurements
* High voltage isolation measurements
* Switching power supply design
* Power converter design
* Inverter, UPS power supply
* Welding, electroplating power supply
* Electronic ballast design
* Motor drive design
* Induction heating, induction cooker
* CRT display design
* Low-voltage electrical appliances
* Electronic power and electric drive experiments

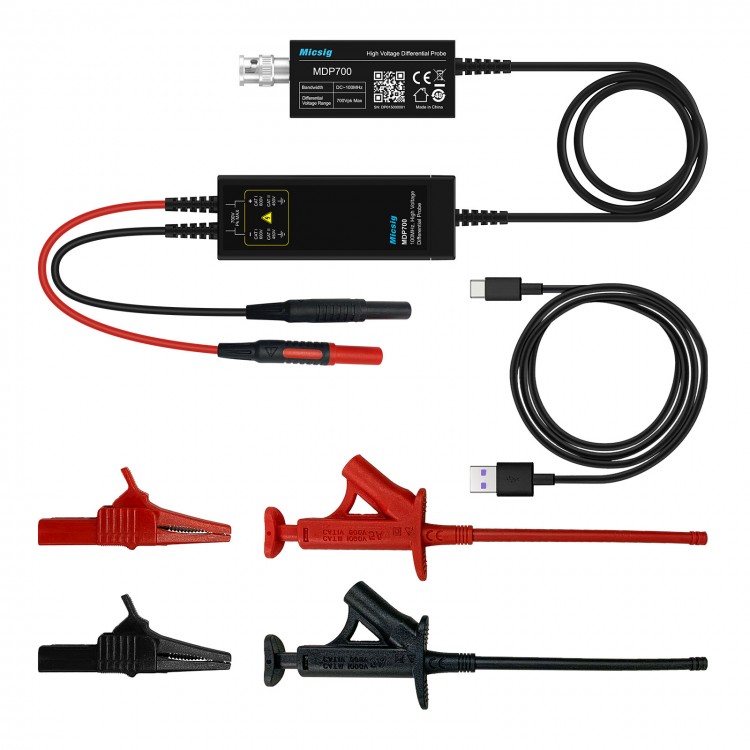

Package Included:
* 1 x MDP700 high voltage differential probe
* 2 x Alligator clips
* 2 x Pincer clips
* 1 x Type-C power cable
