Micsig STO2002 200MHz 1GSa/s Tablet Oscilloscope 2 Channel Digital Oscilloscope with 6 Decodings

Availability: In stock, usually dispatched in 1 business day

  • Price:$631.58
  • Price in reward points: 6316 Reward Points: 63
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $618.95 $606.32 $587.37 $562.11 Contact US
Quantity:

Micsig STO2002 200MHz 1GSa/s Tablet Oscilloscope 2 Channel Digital Oscilloscope with 6 Decodings

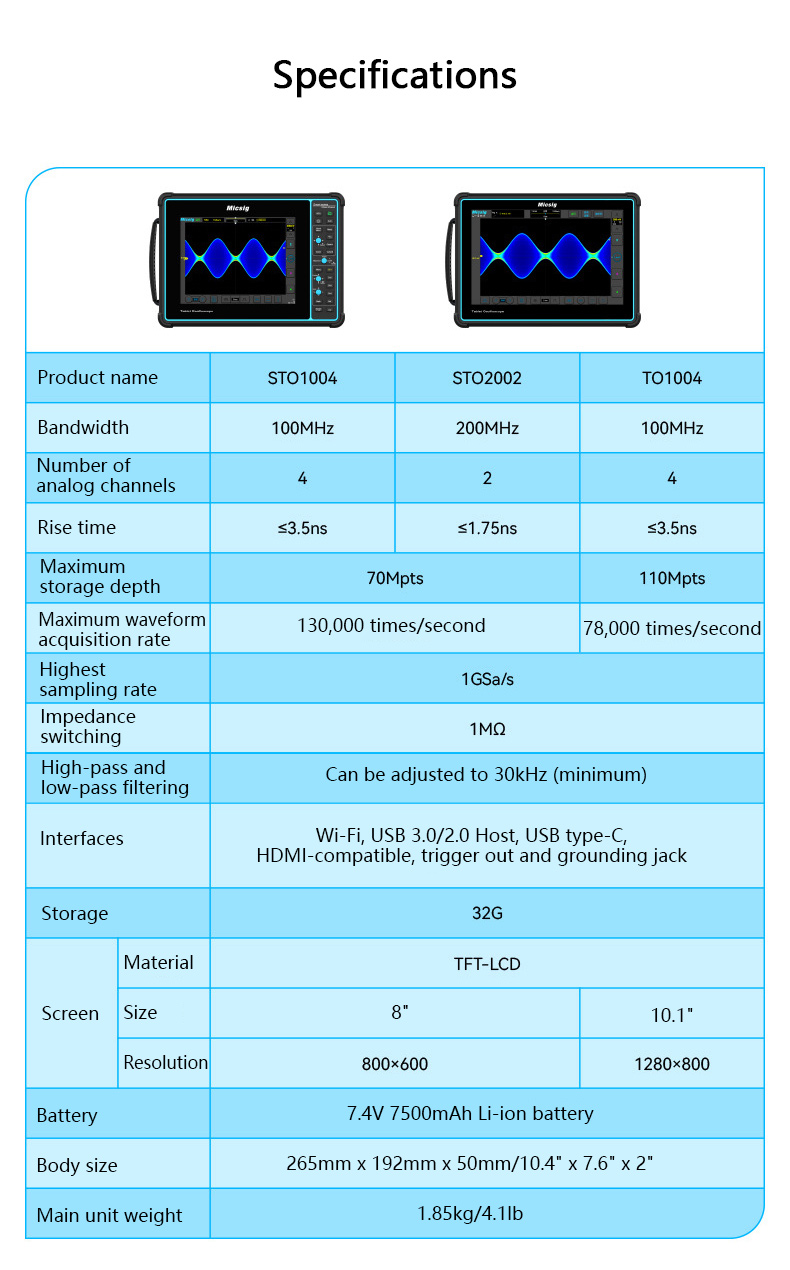

Features:

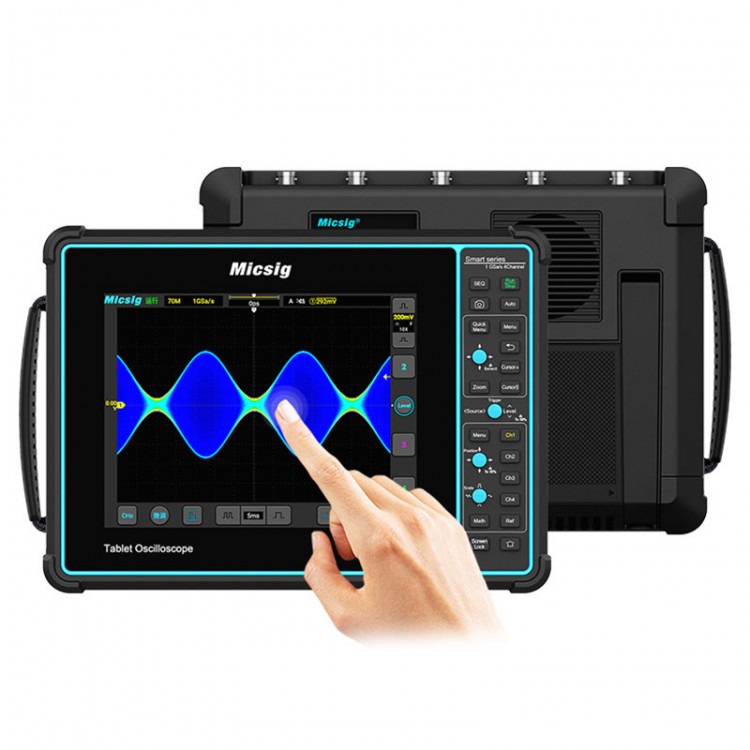

4th Generation Tablet Oscilloscope
It is equipped with SigtestUI multitasking system to test instruments. Reliable real-time performance, minimalist interactive scenarios and a pure semi-closed environment ensure long-term smooth and stable system. The exterior design is soft rubber to protect the body. The digital oscilloscope is thin and strong. It supports USB3.0 and type-c interfaces.

8" Touch Screen
The resolution of the 8-inch integrated touch display reaches 800*600. It can be operated by touch control and physical buttons. It can easily cope with various application scenarios.

Compact Size Makes It Easy to Carry
The size of the main unit is 265mm x 192mm x 50mm/10.4" x 7.6" x 2" (LxWxT). The HD full touch screen is protected by a soft rubber protective shell which is impact resistant. And the feel of the shell is good.

Easy Operation
Whether the waveform moves or scales, the device is synchronized with the senses, making it easier to operate. The horizontal system and the vertical system can be set independently and automatically, which is more flexible and convenient.

Powered by Battery
It can meet all kinds of site conditions without power supply. It is convenient and worry-free to do on-site testing. The oscilloscope supports power locks, making it more secure to carry and transport.

Rich Interfaces for Easy Connection and Expansion
It is equipped with Wi-Fi, USB 3.0/2.0 Host, USB type-C, grounding jack, HDMI-compatible and trigger out ports.

HDMI-compatible Projection
HDMI-compatible projection is supported for teaching or waveform observation on larger screens.

Connect Your Phone
Connection to your phone via the Internet allows you to view the waveform and control the oscilloscope in real time.

Applied to Professional Tests in Labs
- Storage depth: The storage depth is up to 70Mpts. Combined with Zoom technology, it allows for an intuitive view of the big picture and details.
- High waveform acquisition rate: With a waveform acquisition rate of up to 130,000 times/second, abnormal waveforms can be easily collected.
- Rich triggers: It supports trigger methods such as edge, pulse width, runt width, logic, N-edge, video, timeout and slope.
- Bus decoding analysis: It supports serial bus decoding (RS-232/422/485/UART, CAN, CAN FD, LIN, SPI and I2C), and exports decoded data to csv format in text mode.
- Powerful math functions: It supports advanced math function operations, ZOOM and FFT functions.
- Automatic measurement items: It supports 31 kinds of automatic measurement items. Just click to select and one click to clear. It supports full measurement and waveform measurement modes.
- Frequency meter: It supports 6-digit hardware frequency meter, enabling more accurate calculation.
- Hardware digital filtering: Hardware digital filtering adjustable to 30kHz is supported to filter out irrelevant frequency components to exclude interference.
- Digital fluorescence and color temperature display: In addition to the traditional fluorescence display, the oscilloscope also supports the color temperature function. You can clearly observe the probability of the waveform appearing in each area. The time-controlled afterglow display helps to collect occasional waveforms and avoids problems caused by afterglow accumulation, allowing for further trigger setting in test measurements.

Package Included:
- 1 x STO2002 oscilloscope
- 2 x Probes (including accessories)
- 1 x Power cable
- 1 x Power adapter
- 1 x Calibration certificate
- 1 x Packing list

Packaging Details:
- Weight: 4kg
