Micsig VTO2004 200MHz 4 Analog Channels Portable Split-type Oscilloscope Compatible with Android Device

Micsig VTO2004 200MHz 4 Analog Channels Portable Split-type Oscilloscope Compatible with Android Device

Description:
- VTO2004 is a portable split-type oscilloscope, it has compact design and a built-in battery. It features 200MHz bandwidth, 4 channels, 1GSa/s sampling rate, up to 50Mpts memory depth. It can be connected to any Android device, such as tablets, smartphones, and PC computers. With a user-friendly UI design, a wide range of measurement options, provides a new automotive diagnostic operation experience.

Features:
- Friendly UI, easy to use
- Small size, light weight, perfect for field test
- Deep memory depth, capture more signal details
- Support High/Low bandwidth filtering
- 31 types of automated measurements

Key Specification:
- Model: VTO2004
- Bandwidth: 200MHz
- Analog channels: 4
- Rise time: <= 1.8ns
- Max. sampling rate: <= 1GSa/s
- Memory depth: <= 50Mpts
- DC gain accuracy: <= 2%
- Input impedance: 1Mohm±1% ||14pF
- Interface: USB Type-C, DC power
- Size: 140 x 215 x 52mm
- Net weight: 640g

Vertical System:
- Bandwidth filter: full bandwidth, low pass (30KHz ~ Max bandwidth)
- Input coupling: DC, AC, GND
- Input impedance: 1Mohm +/- 1% || 14pF +/- 3pF
- Vertical resolution: 8-bit
- DC gain accuracy (amplitude accuracy): < +/- 2% (1Mohm input)
- Input sensitivity range: 5mV/div ~ 10V/div (1Mohm input)
- Noise: <= 1.3mVpp (5mV/div, 1Mohm)
- Ch-to-Ch isolation: >= 40dB (100:1) (DC to Max bandwidth)
- Maximum input voltage: CAT I 300Vrms (1Mohm)

Horizontal System:
- Time base: 5ns/div ~ 1ks/div
- Time base delay time range: 10div ~ 10ks
- Clock drift: <= +/-5ppm / year
- Time base accuracy: +/-20ppm

Trigger System:
- Trigger mode: Auto, Normal, Single
- Trigger coupling: DC, noise suppression
- Trigger holdoff range: 200ns ~ 10s

Trigger Types:
- Edge: positive slope, negative slope, or any scope on any channel. Coupling includes DC and noise suppression
- Pulse width: trigger on positive pulse width, negative pulse width >, <, =, ≠ or within the time range of 8ns ~ 10s

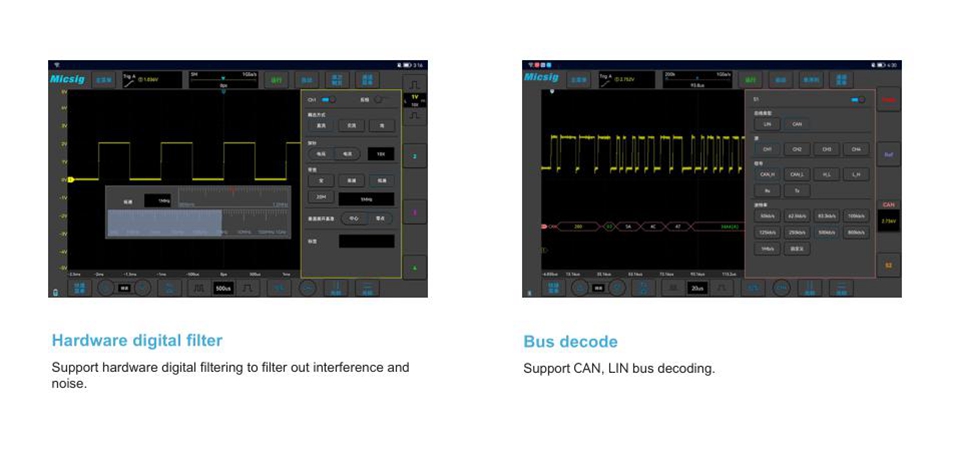

- Bus decoding: LIN, CAN

Waveform Measurement:
- Cursors: horizontal, vertical, cross
- Automated measurement: 31 types. Including: Period, Frequency, Rise Time, Fall Time, Delay, Positive Duty , Cycle, Negative Duty Cycle, Positive Pulse Width, Negative Pulse Width, Burst Width, Positive Overshoot, Negative Overshoot, Phase, Peak-to-Peak, Amplitude, High, Low, Maximum, Minimum, RMS, Cycle RMS, Mean, Cycle Mean

Waveform Math:
- Dual waveform: +, -, *, /, analog channel
- FFT:
  Points: max. 100K
  Source: analog channel
  Window: Rectangular, Hamming, Blackman, Hanning

Storage:
- Storage format: WAV, CSV
- Store waveform quantity: unlimited
- Stored waveform rename: support
- Reference waveform display: 4
- Quick screenshot: support
- User setting storage: 8
- User setting rename: support

System:
- Self-calibration: support
- Language: English, Chinese
- System: for Android 7 or above

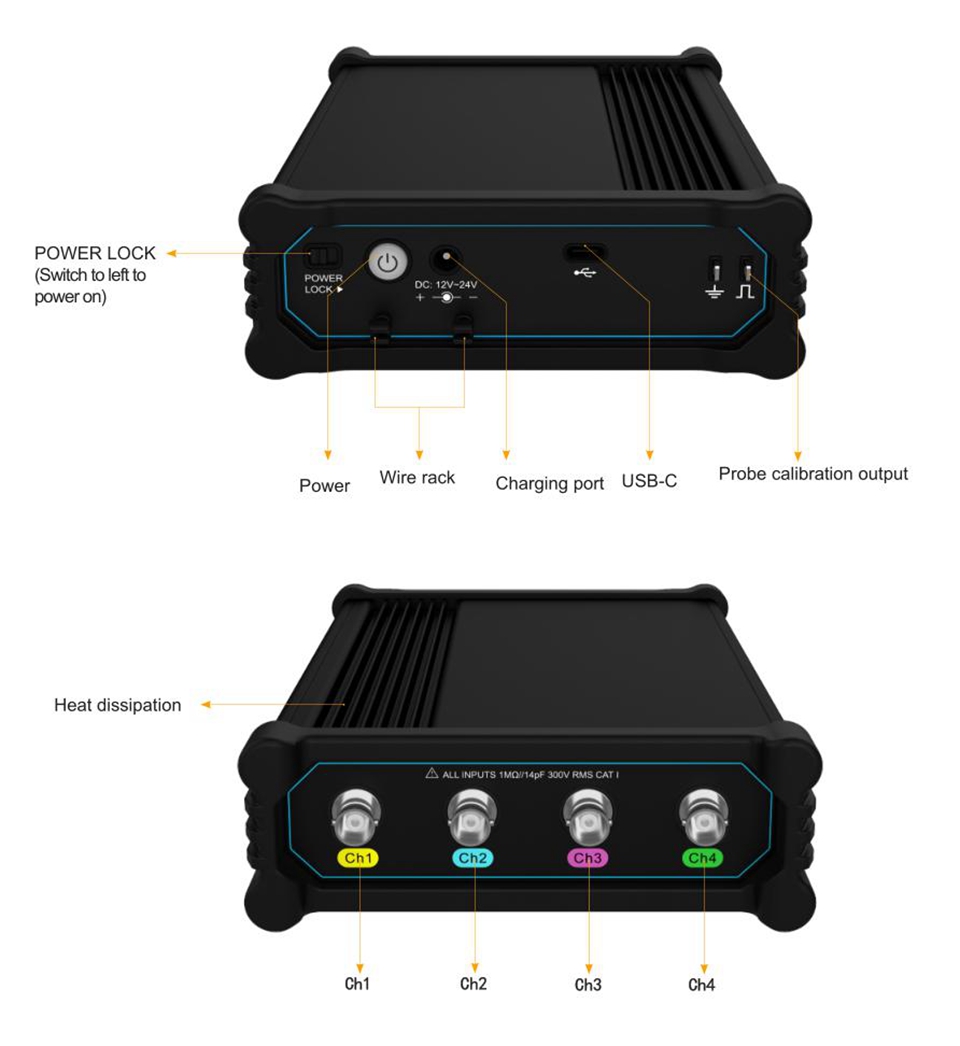

Interface:
- USB Type-C: one, read and edit
- DC power port: 1
- Probe calibration signal: 1kHz, 2Vpk-pk

Power Source:
- Power voltage range: 100 ~ 240V AC, 50/60Hz
- Power consumption: < 60W
- Adapter output: 12VDC, 4A

Environment:
- Temperature:
  Operating: 0°C ~ 45°C
  Non-operating: -40°C ~ 60°C
- Humidity:
  Operating: 5% ~ 85%, 25°C
  Non-operating: 5% ~ 90%, 25°C
- Altitude:
  Operating: < 3000m
  Non-operating: < 12000m

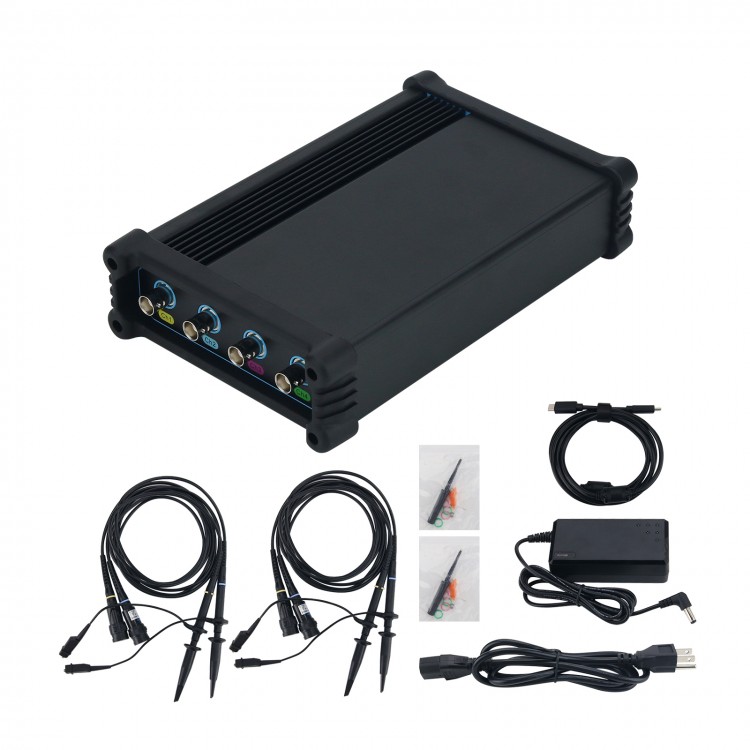

Package Included:
- 1 x Oscilloscope
- 2 x Passive BNC Probes
- 1 x Power Cable
- 1 x Power Adapter
- 1 x Type-C Cable
- 1 x Calibration Certificate
- 1 x User Manual
